– 37 –

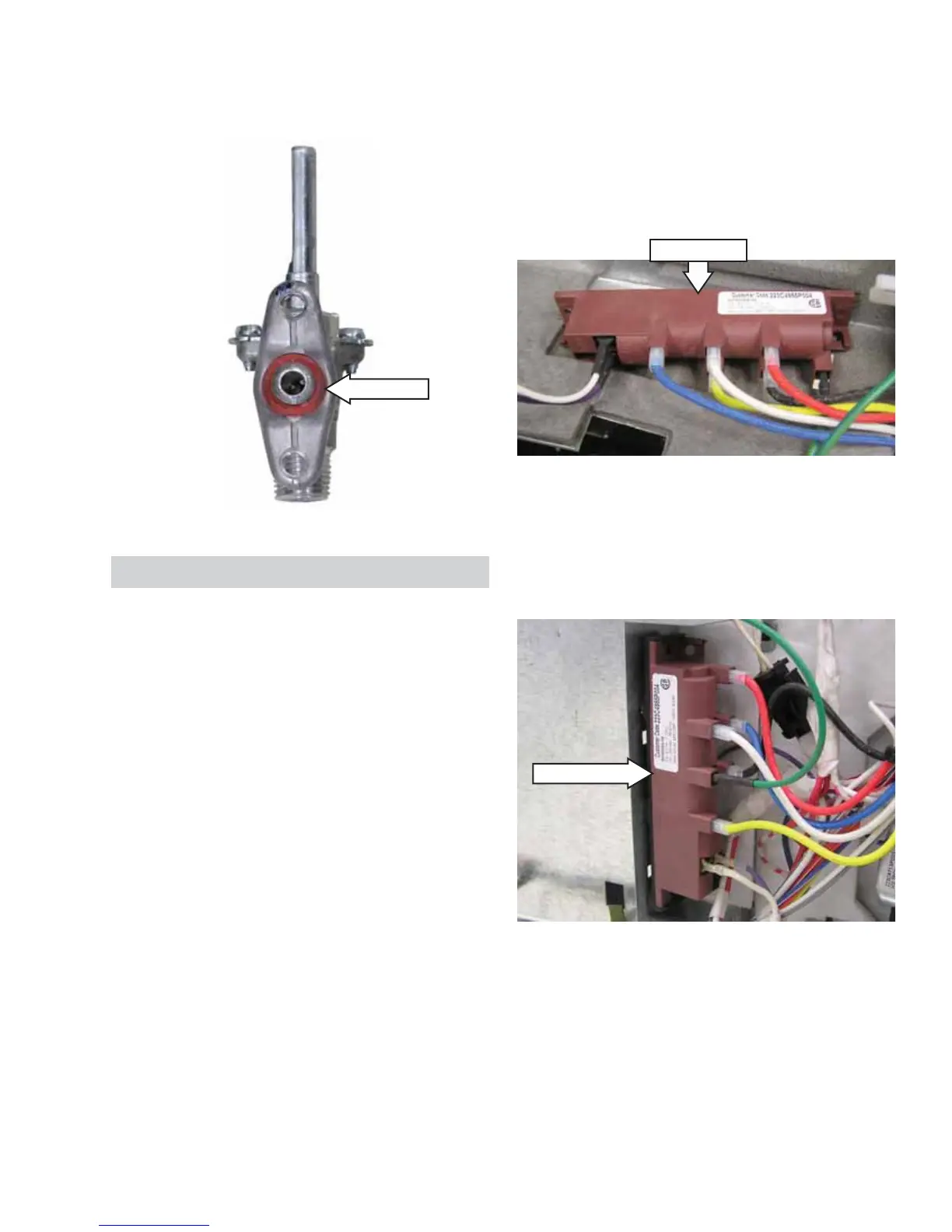

4. Separate the burner tube from the burner valve.
Caution: Ensure the valve seal is in place before
installing the valve.
Valve Seal
Spark Module
The spark module receives line voltage when a
surface burner knob is placed in the LITE position.
The line voltage input to the spark module can be
checked on the ERC.
To test for line voltage to the spark module:
1. On Profi le and GE models, place the control
panel in the service position. (See Touch Panel
and Electronic Range Control (ERC).)
2. On Café models, remove the rear cover. (See
Rear Cover.)
3. Connect power to the range.
4. Turn off the gas supply or lock out the surface
burners. (See
Control Features.)
5. With a burner knob turned to the LITE position,
test for line voltage (120 VAC) from the violet
wire at the switch harness to N (neutral) on the
ERC.
To remove the spark module (Profi le and GE
models):
1. Place the control panel in the service position.
(See
Touch Panel and Electronic Range Control
(ERC), steps 1-4.)
2. Mark and disconnect the 8 wires from the spark
module.
Spark Module
To remove the spark module (Café models):
1. Remove the rear cover. (See
Rear Cover.)
2. Mark and disconnect the 8 wires from the spark
module.
Spark Module
(Continued next page)
