– 66 –
Lower Oven Gas Valve
The upper oven gas valve on Café models can be
checked by removing the rear cover. (See
Rear
Cover
.) The lower oven control valve bake winding
has an approximate resistance value of 1 The
winding is wired in series with an igniter.
On Profi le and GE models, the continuity of the
valve winding can be checked on the ERC. Place
the control panel in the service position. (See Touch
Panel and Electronic Range Control (ERC).)
Bake Winding:
Test between the yellow wire on pin TB502 (BAKE)
and TB102 (N). Check for the approximate resistance
value of 138 . An open measurement indicates
an open valve winding, open bake igniter, or open
wiring.

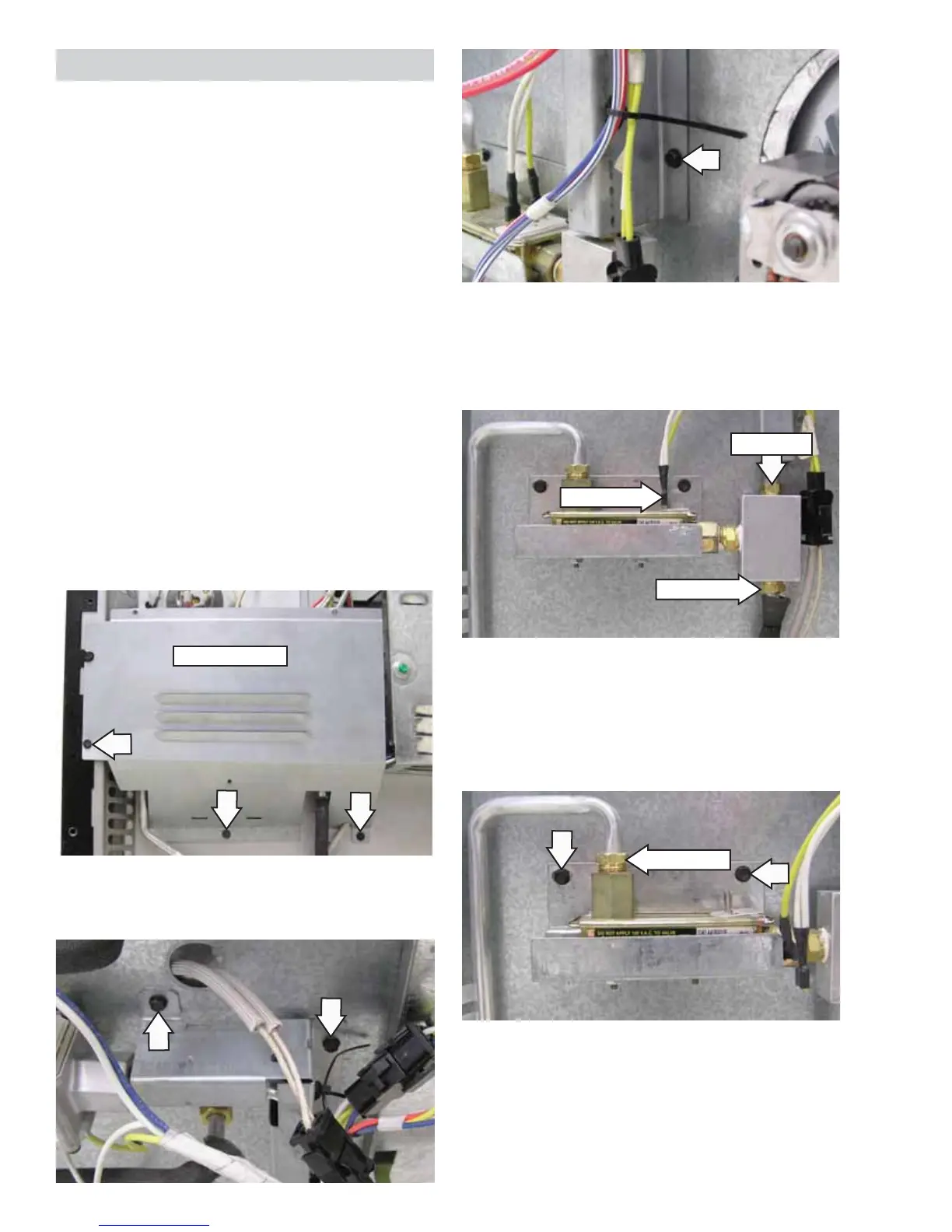

To remove the upper oven gas valve:
1. Remove the rear cover. (See Rear Cover.)
2. Remove the three 1/4-in. hex-head screws and
the lower gas valve cover.
9/16-in. Nut
9/16-in. Nut
Disconnect
6. Use a 9/16-in. wrench to disconnect the bake
outlet tube from the gas valve.
7. Remove the two 1/4-in. hex-head screws that
attach the gas valve bracket to the rear panel.
9/16-in. Nut
4. Disconnect the 2 wires from the valve.
5. Use a 9/16-in. wrench to disconnect 2 gas tubes
from the gas coupler.
3. Remove the three 1/4-in. hex-head screws from
the gas inlet tube shield.
Gas Valve Cover
(Continued next page)
