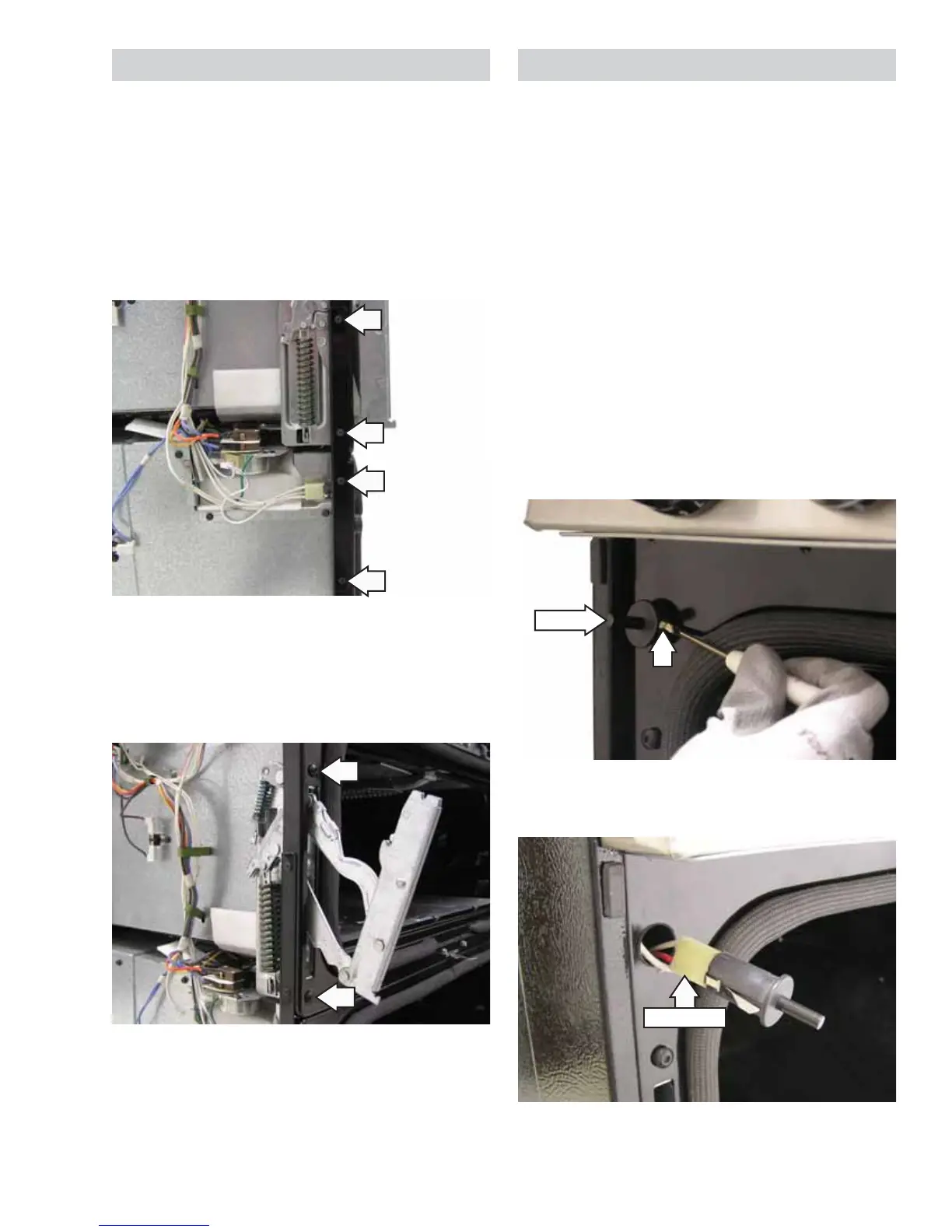

Door Switch
The oven utilizes a door switch located on the left
side of the door frame which is accessible from
the front. The door switch monitors the position of
the oven door and provides this information to the
control board.
To remove the door switch:
1. Disconnect power to the range.
2. Pull the switch forward to locate the ends of 2
spring clips (1 on each side).
3. Insert a small fl at blade screwdriver on 1 of 2
spring clips and depress the spring clip while
pulling the switch from the door frame.
4. Insert the small fl at blade screwdriver on the
other spring clip, depress the spring clip, and pull
the switch from the door frame.
5. Disconnect the door switch wire harness.
Switch
Disconnect
Upper Oven Door Hinge
The upper oven door hinge is attached to the frame
with two T-15 Torx screws. To replace it, the left side
panel must be removed. (See Side Panel.)
To remove the upper oven door hinge:
1. Remove the left side panel. (See Side Panel.)
2. Remove the 4 Phillips-head screws and the
bracket.
3. Remove the two T-15 Torx screws that attach
the hinge to the frame.
4. Pull the hinge toward the back of the range to
remove it.
