8-4 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-1-2 Removal procedure (cont’d)
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-1-3 Mounting Procedure
1.) Install the LCD monitor cover parts in the reverse order of removal procedure. Refer to the 8-2-2
"Monitor cover set" on page 8-5.
2.) Put the label on the rear of the LCD monitor.
Table 8-2 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-1. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-2
LCD plastic filter Function Validation
Procedure
Section 10-5-5
Physical Inspection

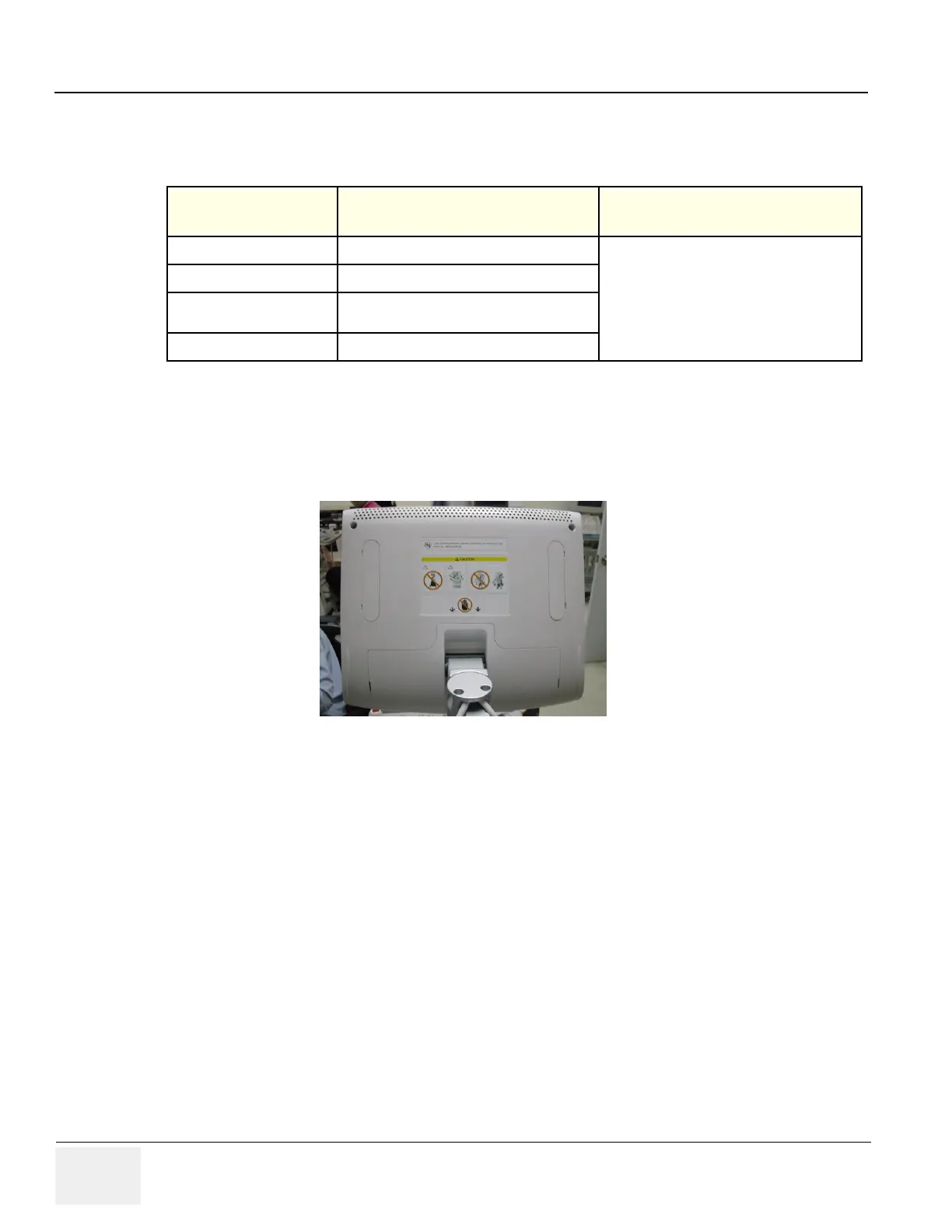

Figure 8-3 Putting the label on the rear of the LCD monitor
