GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-43
8-2-10 English, Greek, Russian, Swedish, Norwegian A/N Key assy
8-2-10-1 Tools
• Common pilIips screwdrivers
8-2-10-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-10-3 Removal procedure
1.) Remove the Main Keyboard Assy. Refer to the 8-2-7 "Main Keyboard Assy" on page 8-37.
2.) Remove USB PCB by unscrewing 6 screws (1-6) and disconnecting the 6 cables.

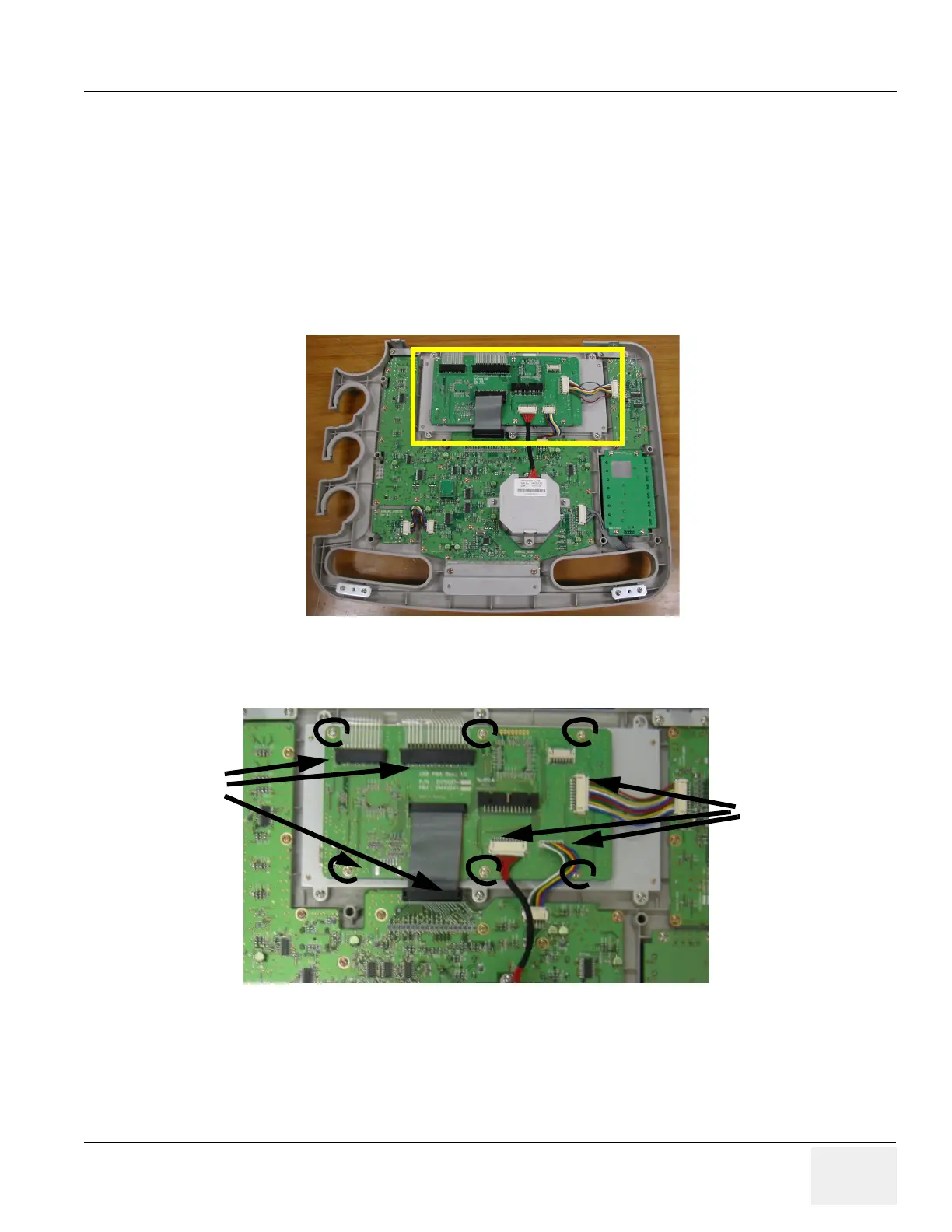

Figure 8-74 A/N Key in keyboard
Figure 8-75 USB PCB
Connectors
1 ~ 3
Connector 3
4~ 6
To Next Page
