ADL300 - Fast installations and commissioning Pag. 12 of 52

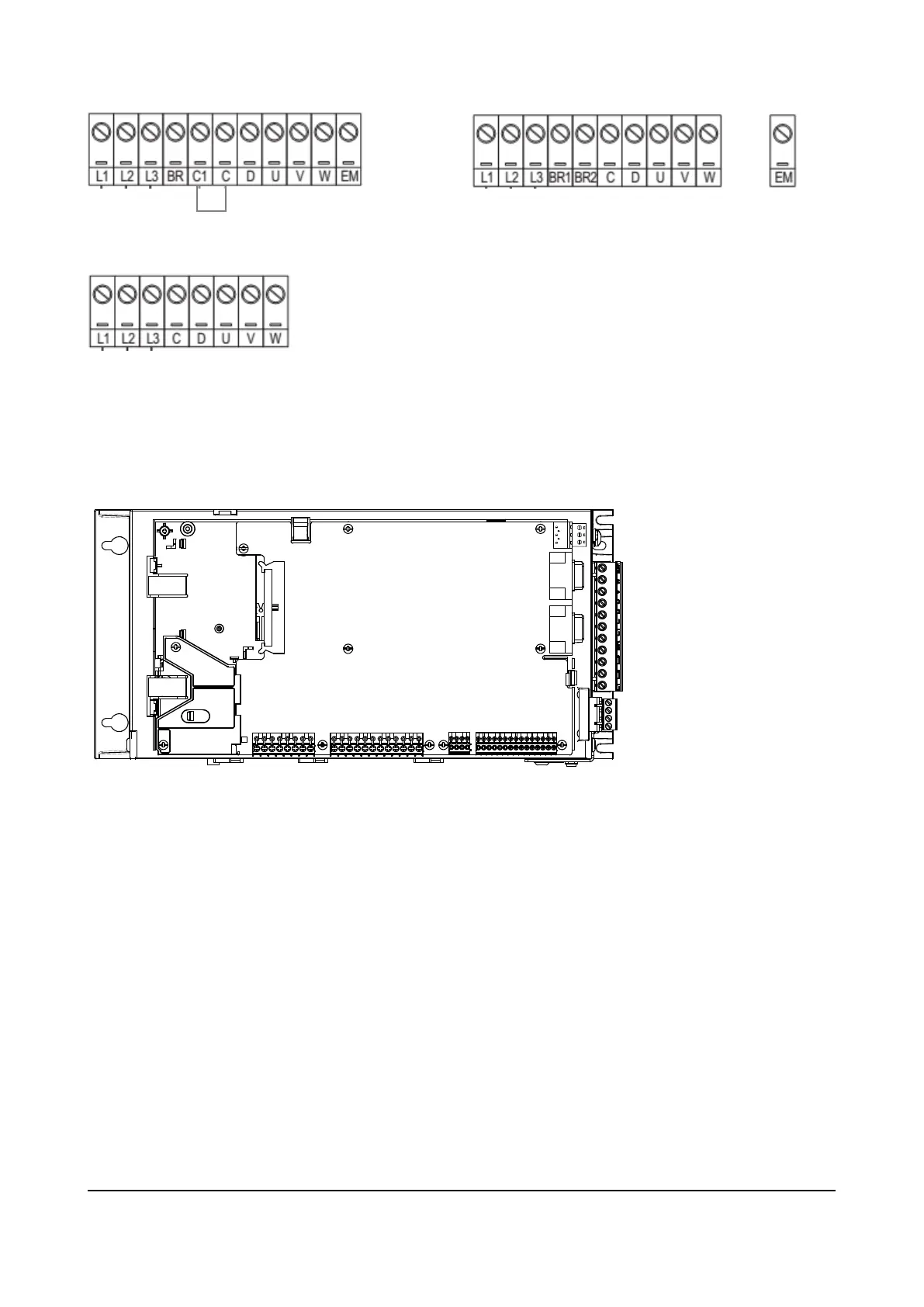

For Power 4 ÷ 22 kW For Power 30 ÷ 55 kW
For Power 75 kW
4.1.2 Regulation Section (R-ADL)
The regulation section for the ADL300B series has the following interfaces:
• Terminal T1 and T3: Input / Output Interfaces
• Terminal XE and XER: Feedback Interfaces (XER is available in the version ADL300B with repetition)
• Terminal Safety: Safety (positioned in the bottom part of the drive)
• Serial Interface XS1: Optional Keypad serial Interface
• Serial Interface XS2: Serial Interface RS232 for PC Connection
• Interface XC: CAN Interface (only version with CAN)
CAN
(RC-ADL300B-.. only)
PC
(RS232)
Keypad
(RS485/422)
XC
XS2
XS
1
T3 T1 XE
SAFETY
XER
