ADL300 - Fast installations and commissioning Pag. 14 of 52
4.2.3 Internal EMC filter (standard)
The ADL300.-...-F-.. series of inverters are equipped with an internal EMI filter (optional for the ADL300-...-2M series)
able to guarantee the performance levels required by EN 12015, first environment, with max 10 m of shielded motor
cable.
Compliance with these requirements means the drive can be incorporated into lift systems built to EN 12015.

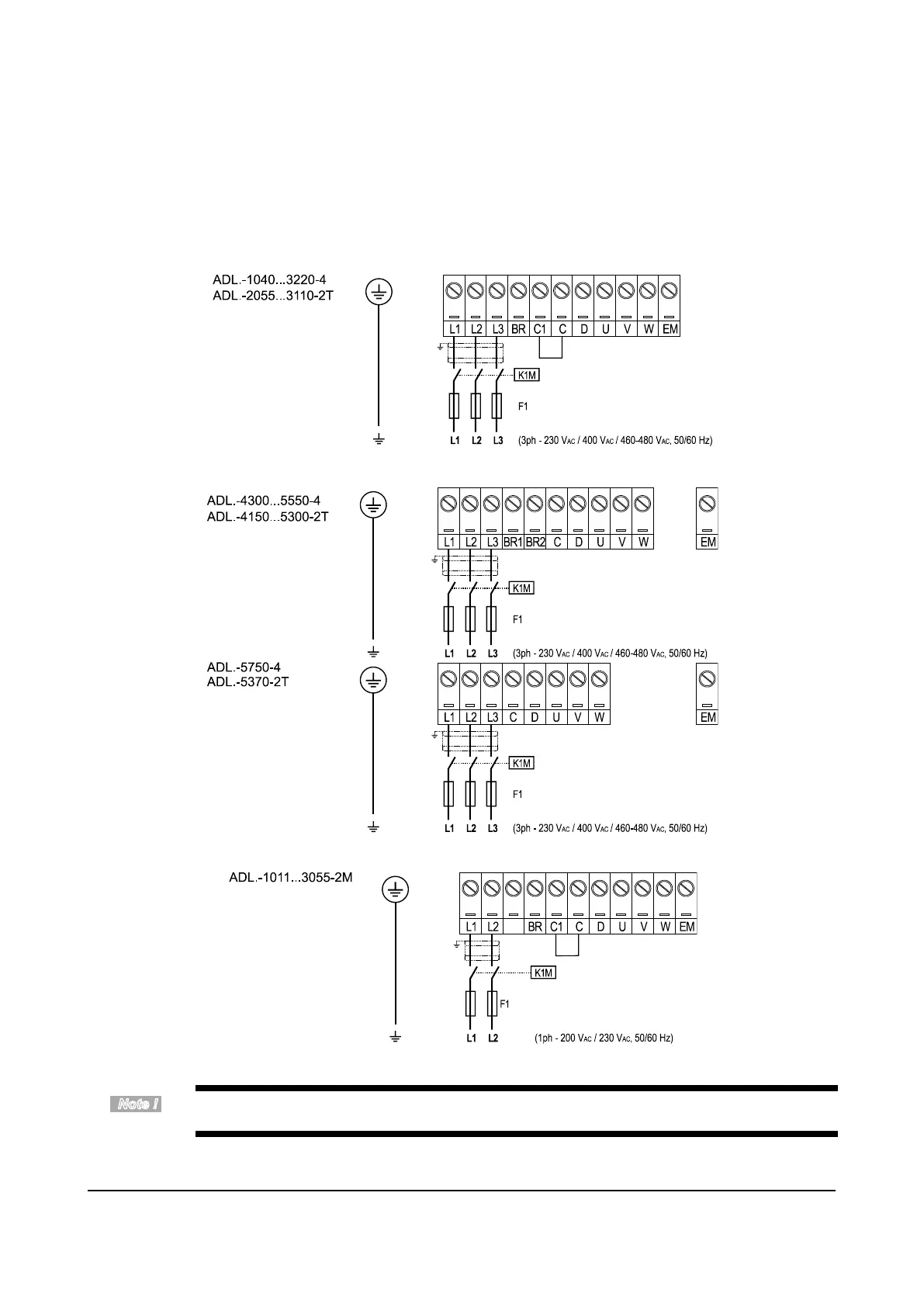

4.2.4 Power line connection
Recommended combination F1 fuses: see paragraph 5.1.1. of ADL300 QS manual (code 1S9QSEN).
