gefran ADL300 User Manual

ADL300 - Fast installations and commissioning Pag. 29 of 52
6.3 Motor & Encoder Setup
6.3.1 Motor data setup

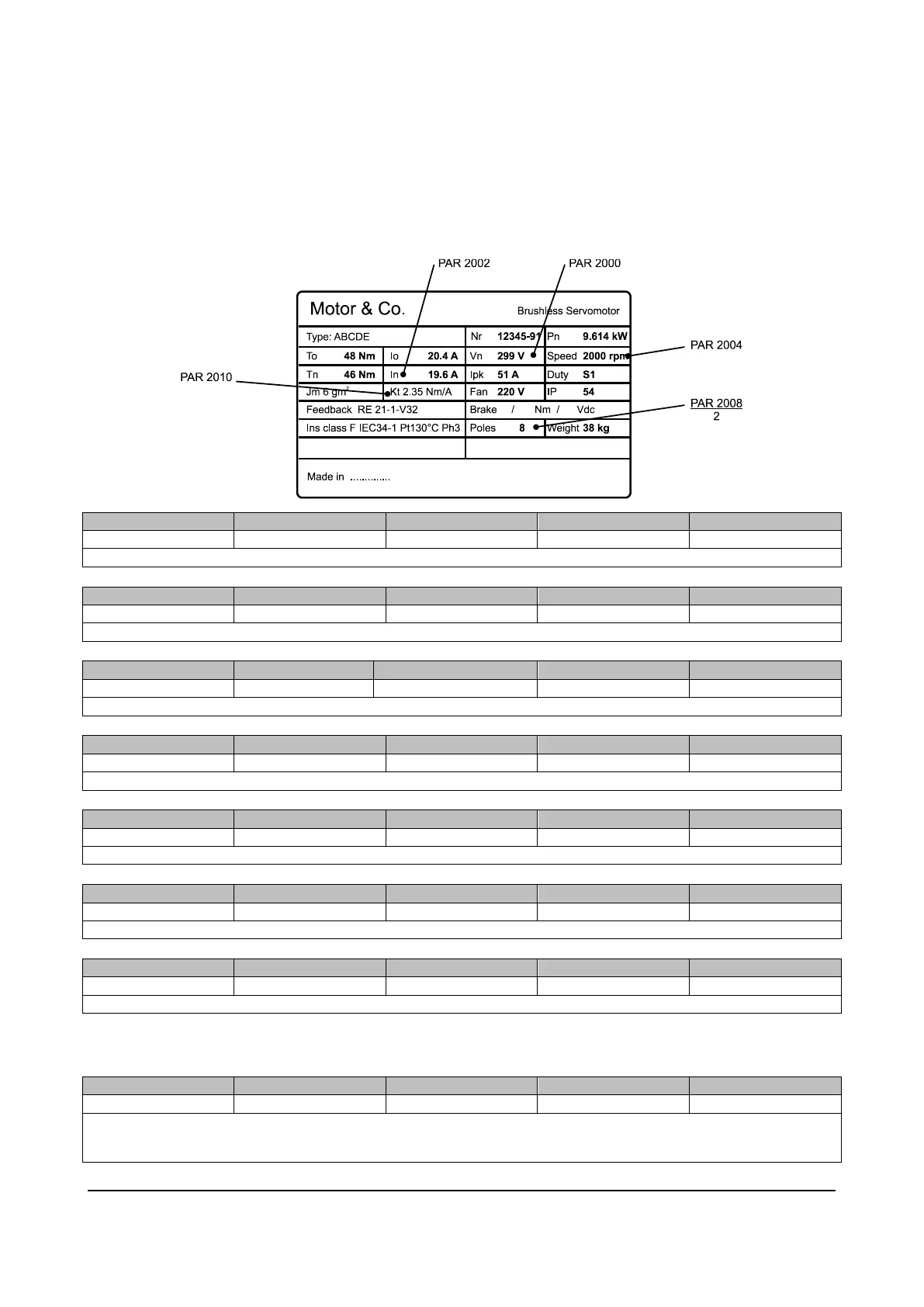

Figure 8.1: Motor data setup
Menu
Parameter
Description
Default Value
Set to
14.1
2000
Rated Voltage
-
200 - 460
Rated Voltage (possible range) 200 – 460 Volts.
Menu
Parameter
Description
Default Value
Set to
14.2
2002
Rated Current
-
1.0 - 1500
Rated current (possible range) 1 – 1500 Ampere.
Menu
Parameter
Description
Default Value
Set to
14.7
2012
Rated Power Factor
0,83
0,60 – 0,95
Power Factor (Async motor only).
Menu
Parameter
Description
Default Value
Set to
14.3
2004
Rated Speed
-
10 - 32000
Rated Speed (possible range) 10 – 32000 rpm.
Menu
Parameter
Description
Default Value
Set to
14.4
2008
Pole Pairs
-
1 - 60
Number of Pole Pairs in the range 1 – 60.
Synchronous menu
Parameter
Description
Default Value
Set to
14.5
2010
Torque Constant
-
1 - 60
Torque generated at in the range 0.1 – 120.
Asynchronous menu
Parameter
Description
Default Value
Set to
14.5
2010
Rated Power
-
1 - 1500
Rated motor power
6.3.2 Encoder data setup
Menu
Parameter
Description
Default Value
Set to
15.10
2132
Encoder Mode
Sinus SINCOS
See below
Encoder Type Selection
0 None (Open Loop Elevators)
1 Digital FP
