5 Keypad Operation
5.1 KB-ADL optional programming keypad
The optional programming keypad is used to display the status and diagnostics parameters during operation. It has a
strip of magnetic material on the back so that it can be attached to the front of the drive or other metal surface (e.g. door
of the electrical panel). The keypad can be used remotely from distances of up to 15 m. A 70 cm-long connection cable
is supplied as standard. Up to 5 sets of parameters can be saved using the KB-ADL keypad and sent to other drives.

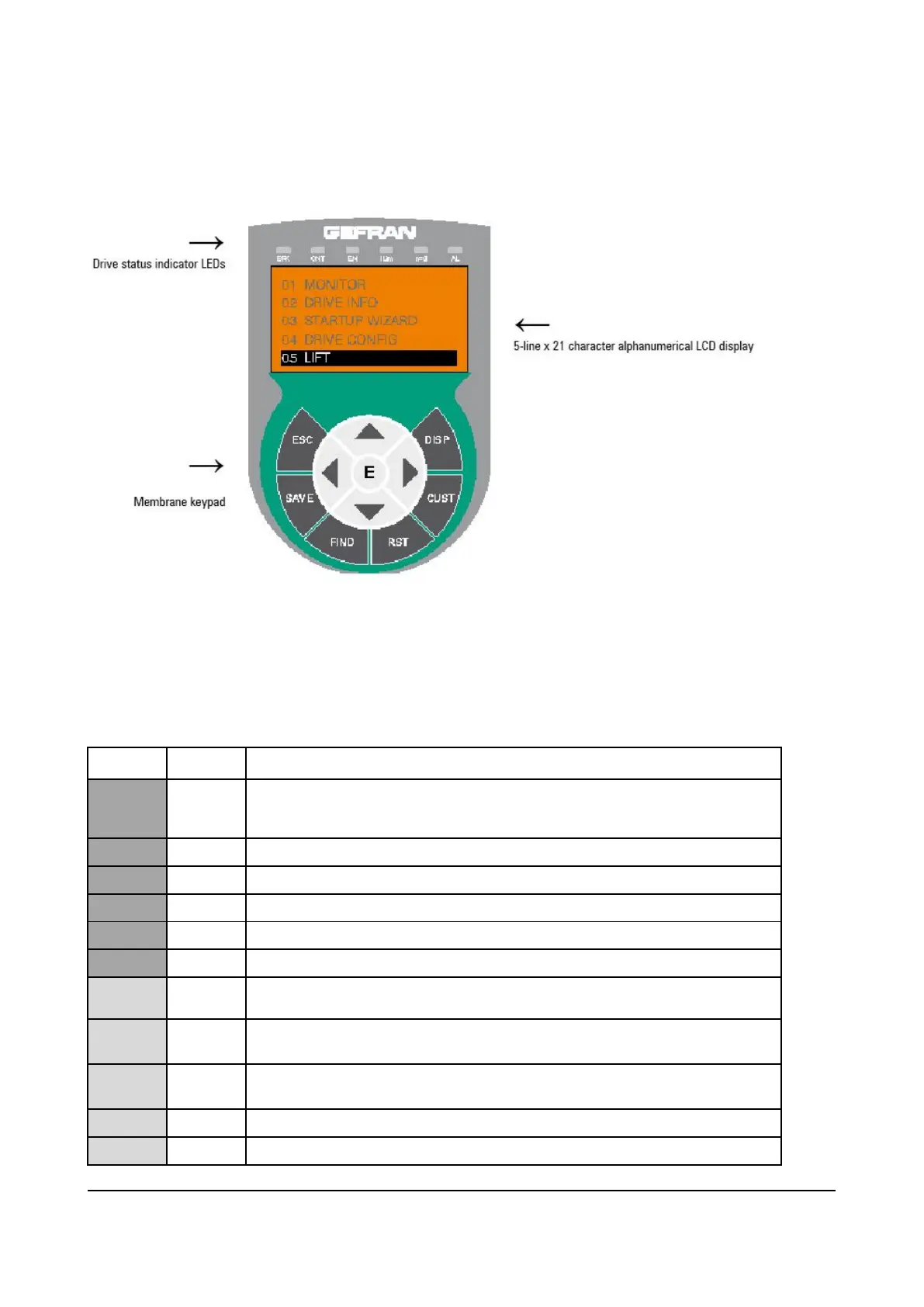

5.1.1 Membrane keypad
This section describes the keys on the membrane keypad and their functions
ESC Escape
Returns to the higher level menu or submenu. Exits a parameter, a list of parameters, the list of the last 10
parameters and the FIND function.
Can be used to exit a message that requires use of this.
Saves the parameters directly in the non-volatile memory without having to use 4.1 Save parameters
Enables the function for accessing a parameter using its number. To exit these functions, press the key.
Resets alarms, only if the causes have been eliminated.
Displays the last 10 parameters that have been modified. To exit these functions, press the key.
Displays a list of drive functioning parameters.
E Enter
Enters the submenu or selected parameter, or selects an operation. It is used when modifying parameters to confirm
the new value that has been set.
Up
Moves the selection up in a menu or list of parameters.
During modification of a parameter, increases the value of the digit under the cursor.
Down
Moves the selection down in a menu or list of parameters.
During modification of a parameter, decreases the value of the digit under the cursor.
Returns to the higher level menu. During modification of a parameter, moves the cursor to the left.
Accesses the submenu or parameter selected. During modification of a parameter, moves the cursor to the right.
