ADL300 - Fast installations and commissioning Pag. 17 of 52
4.3 Regulation section

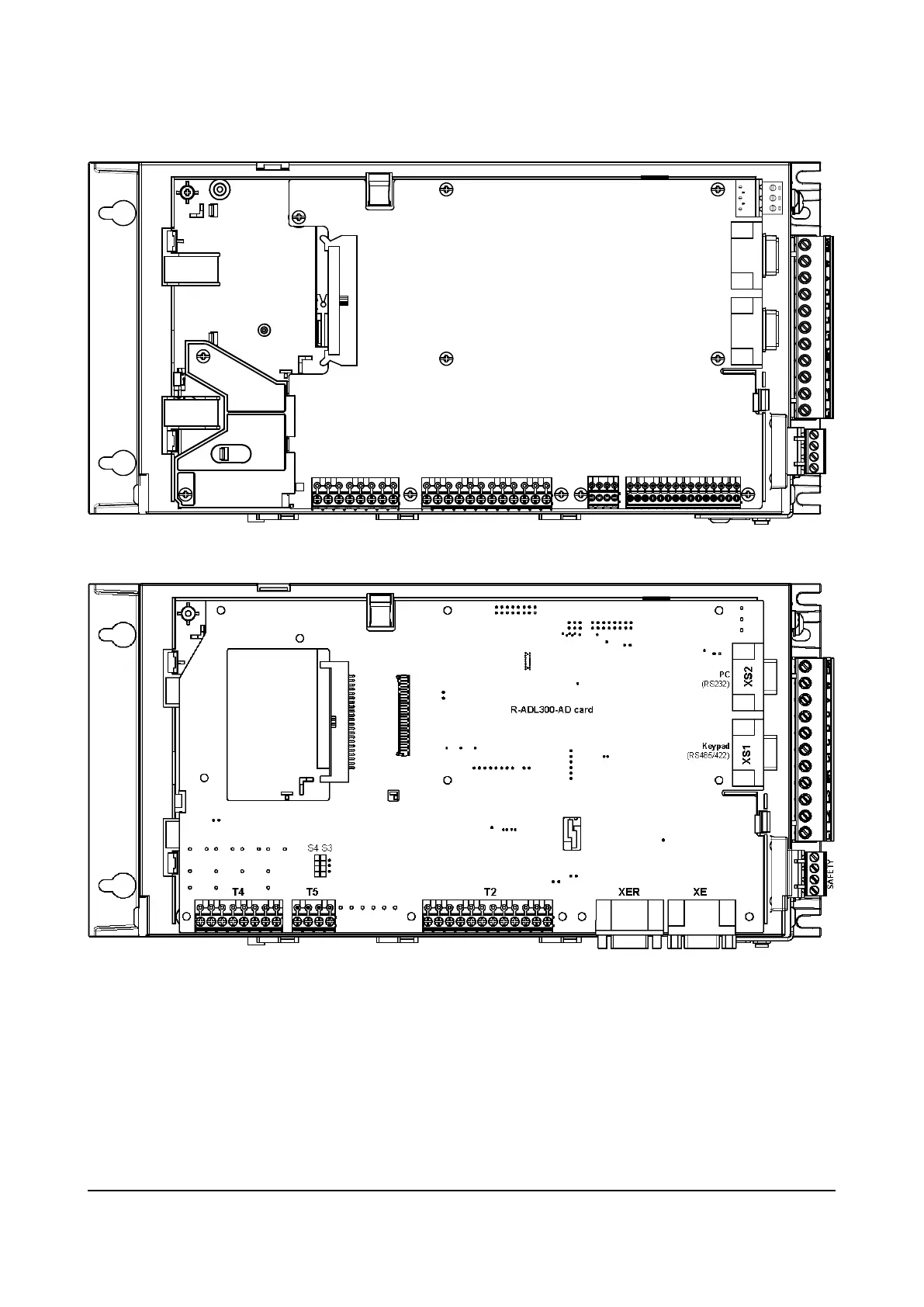

Figure 4.3.1-A: Identification of cards and terminals (ADL300B)
Figure 4.3.1-B: Identification of cards and terminals (ADL300B-...-AD1)
(1) XC
= CAN interface available in -C versions onl
y.
(2) XER = Encoder Repetition available in -AD1, -ER, -ED, -ER, -E24R versions.
CAN
(RC-ADL300B-.. only)
PC
(RS232)
Keypad
(RS485/422)
XC
(1)
XS2
XS1
T3 T1
XE
SAFETY
XER
(2)
