Repair
44 313289W
Solvent Pump

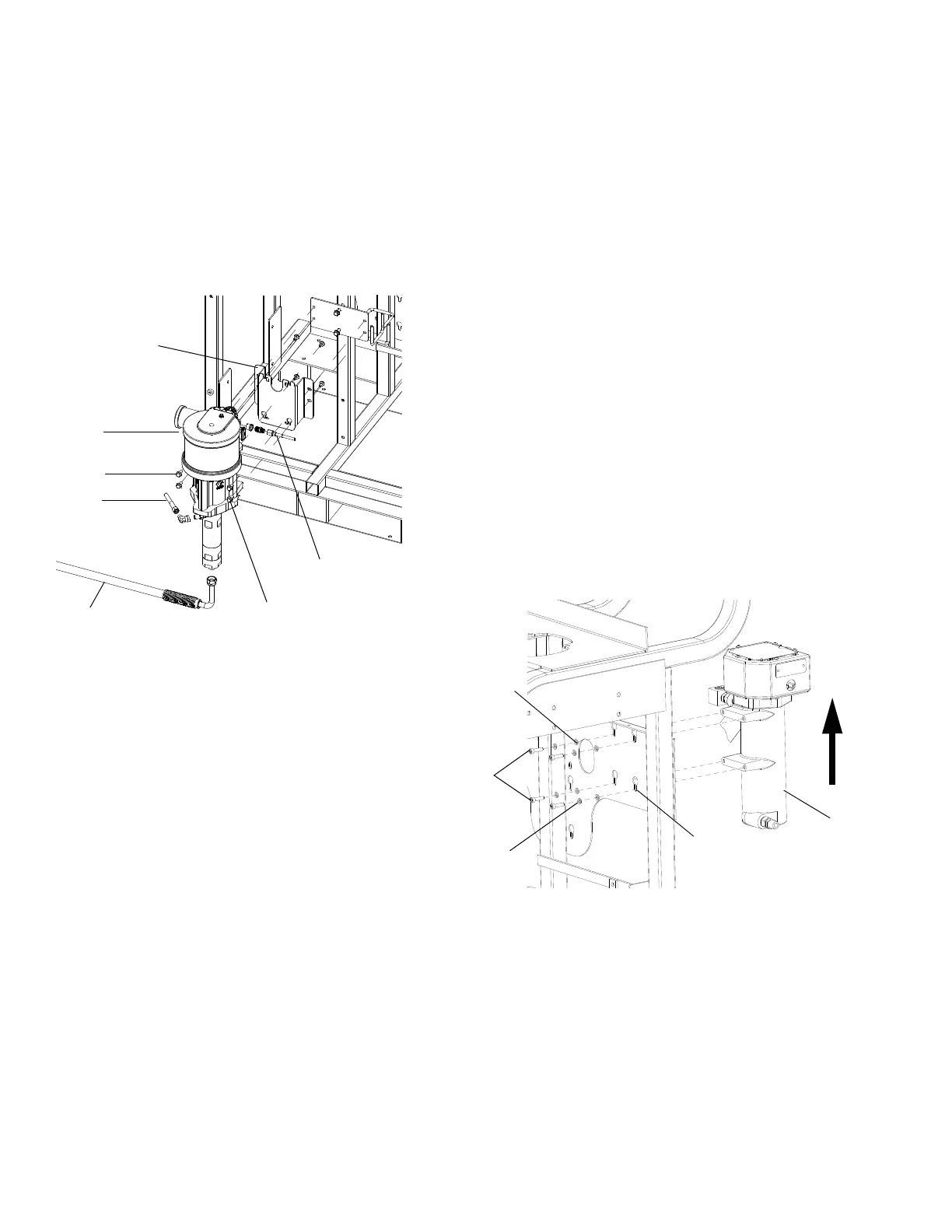

1. Follow Pressure Relief Procedure, page 17.
2. Disconnect fluid line (140) and air lines (107, 126)
from solvent pump.
3. Remove four screws (106) that attach solvent pump
(103) to bracket (138) and remove solvent pump.
4. Refer to your Merkur Pump Assembly manual to
service or repair the solvent pump.
5. Follow steps in reverse order to reinstall solvent
pump.
Fluid Heaters
Wiring for explosion-proof heaters is not provided. See
your Viscon HF or Viscon HP heater manual for wiring,
repair, and parts information for explosion-proof
heaters.
Service and Repair
1. Follow Pressure Relief Procedure, page 17.
2. Disconnect fluid lines and electrical wiring from fluid
heater.
3. Refer to your Viscon HF heater manual to service or
repair heater.
4. Reconnect fluid lines and electrical wiring.
Replace
1. Follow steps 1 - 2 in Service and Repair.
2. Loosen four mounting screws (X), lock washers (Y),
and plain washers (127) on back of heater (90).
Slide heater up and remove from mounting plate.
3. Replace heater. Follow steps in reverse order to
install new heater.
