Parts
86 313289W

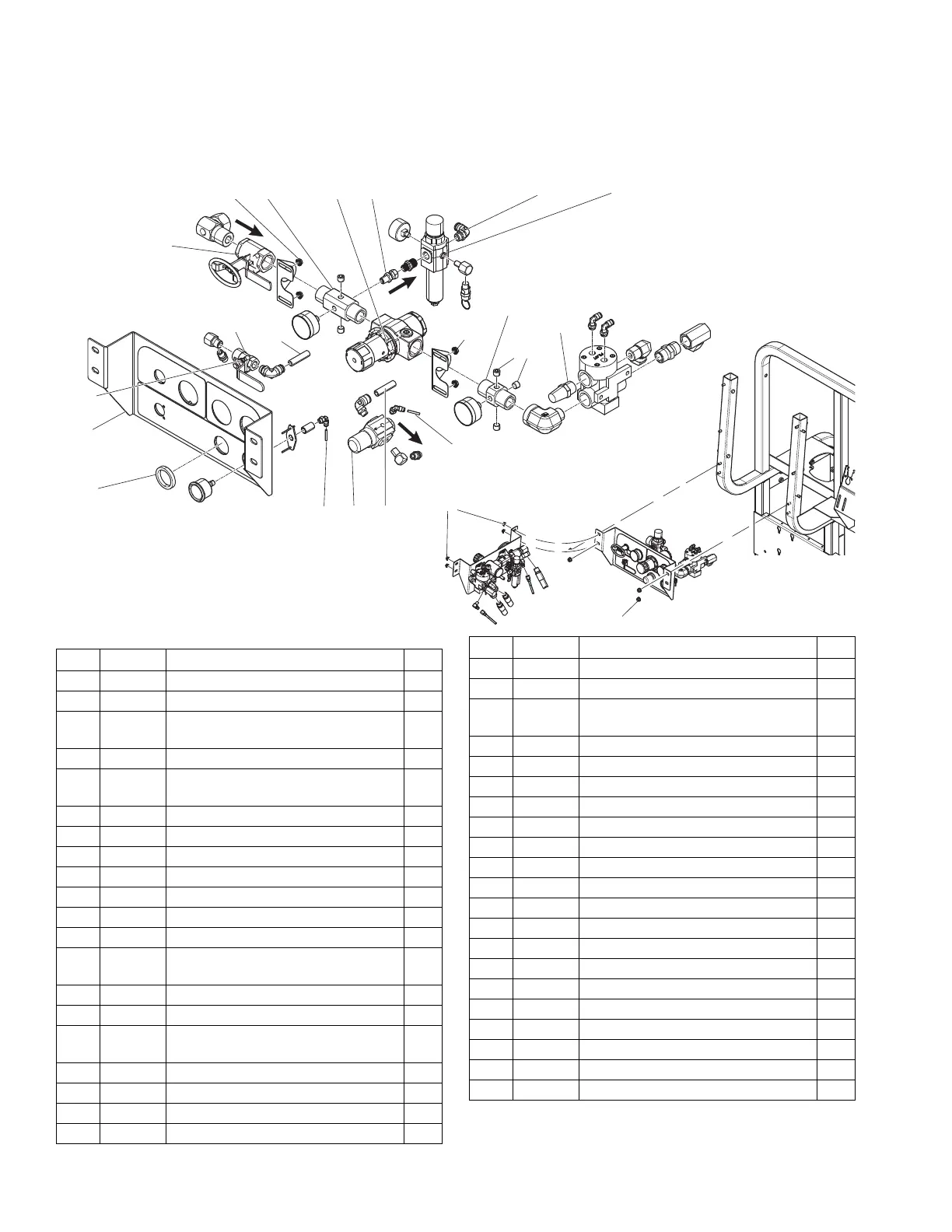

Air Controls Module (26C688) Parts
* Series A models used fitting 114469 for a 5/32 signal
line tube.
WLD
Ref. Part Description Qty.
301 - - - - - BRACKET, air controls 1
302 132186 REGULATOR, 1 in. 1
303 18B018 MANIFOLD, air, 1 in. m x 1 in. m,
long
1
304 156823 FITTING, union, swivel 1
305 18B019 MANIFOLD, air, 1 in. m x 1 in. m,
short
1
306 132185 FITTING, elbow, 3/4 m x 1 in. f 1
307 15R485 VALVE, dual pilot 1
308 157350 ADAPTER 1
309 15R488 REGULATOR, air 1
310 15R486 MUFFLER, bronze sintered 1
311 101689 GAUGE, press, air 2
312 114316 FITTING, elbow, male, swivel 1
313* 114109 FITTING, elbow, male, swivel,
1/4 OD tube
2
314 158962 FITTING, elbow, st pipe, rdcg 1
315 116643 VALVE, safety, relief, air 1
316 119992 FITTING, pipe, nipple, 3/4 x 3/4
npt
1
317 156589 FITTING, union, adapter, 90 deg 1
318 113911 GAUGE, pressure, air 1
319 - - - - - BRACKET, adj, small, air controls 2
320 115942 NUT, hex, flange head 4
321 18B073 LABEL, control, air, xm-skid 1
322 116513 REGULATOR, air 1
323 121424 GAUGE, pressure, panel mount,
1.5 in.
1
324 100451 COUPLING 1
325 114151 FITTING, elbow, male, swivel 2
326 116514 NUT, regulator mnt 1
327 - - - - - TUBE, pe, rnd 0.6
328 121457 VALVE, ball, air, panel mounted 1
329 100264 SCREW, mach, pnh 2
330 164259 FITTING, elbow, street 1
331 114114 FITTING, elbow, male, swivel 1
332 162453 FITTING,(1/4 npsm x 1/4 npt) 2
333 - - - - - TUBE, polyurethane, rnd, black 2
334 114128 FITTING, elbow, male, swivel 1
335 100840 FITTING, elbow, street 1
336 160327 FITTING, union adapter,90 deg 1
337 18B020 VALVE, ball, 1 in. 1
338 102806 FITTING, union, adapter, 90 deg 1
339 - - - - - PLUG, pipe 5
340 - - - - - TAPE, tfe, sealant 1
341 - - - - - SEALANT, pipe, sst 1
Ref. Part Description Qty.
