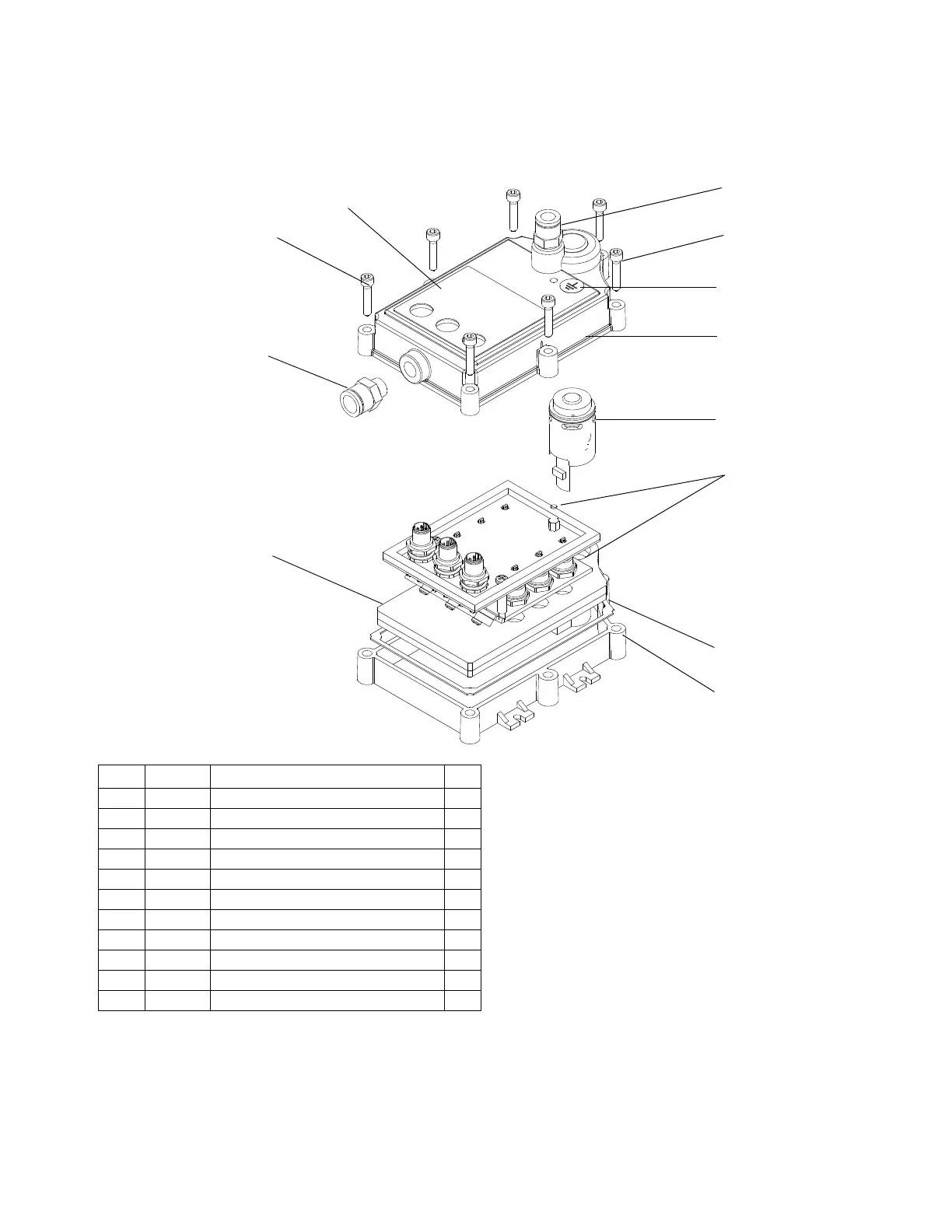

Alternator Module (255728) Parts
 Replacement safety labels, tags, and cards are
available at no cost.
 Not shown.
701
708
707
703
702
704
706
705
701
710
708
r_255278_313289a
711
Ref. Part Description Qty.
701 - - - HOUSING, upper and lower
1
702 - - - GASKET, stacked, internal
1
703 - - - GASKET, housing
1
704 257147 TURBINE
1
705 - - - BOARD, assy.
1
706 122161 FITTING, air
1
707 15R337 LABEL, warning
1
708 114380 SCREW, cap, socket head
7
709 C12508 TUBING, nylon; 2 ft.
-
710 122848 FITTING, air
1
711 172953 LABEL, grounding
1
