Graco XM Series Repair Parts

Parts
313289W 87

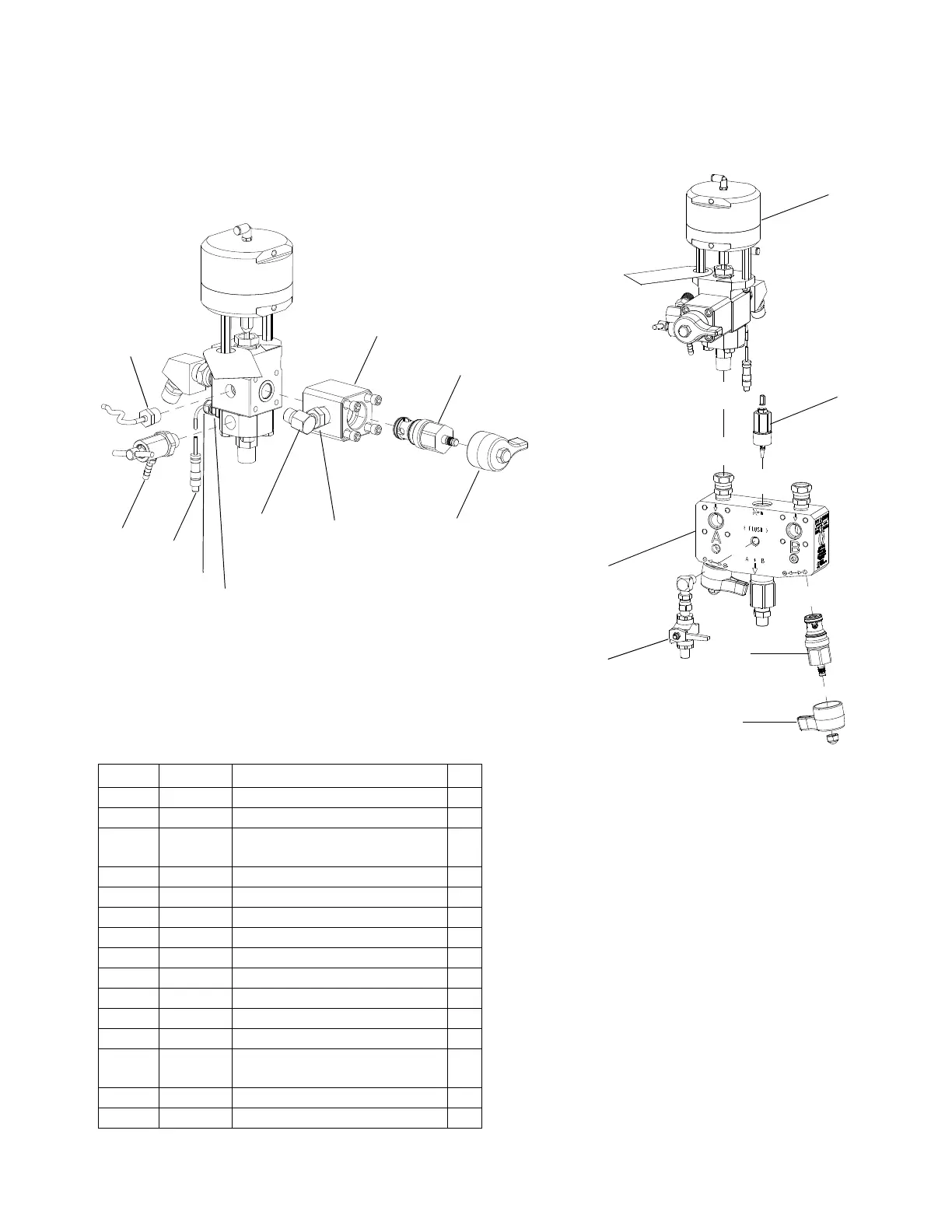

Fluid Control Assembly Parts
 See your Dosing Valve manual for more information.
 See your Xtreme Displacement Pump manual for
more information. Repair kit 245145 is available for
order.
 See your High Flow Severe Duty Shutoff Check
Valve manual for more information.
 See your XM Mix Manifold Kits manual for more
information and part numbers.
* Seal kit 256239 is available for order.
501
504
503
510
511
504
508
509
502
506
505
507
Ref. 338
Ref. 125
512
513
Ref. Part Description Qty.
501 255478 VALVE, dosing 2
502 245143 VALVE, sampling 2
503 15R381 HANDLE, valve, recirculation
(black)
2
504* 255747 CARTRIDGE, valve, check 4
505 15J594 HOUSING, valve, check 2
505a 121139 O-RING, valve; PTFE 2
506 15R347 SENSOR, RTD 2
507 15M669 SENSOR, fluid, pressure 2
507a 121399 O-RING, transducer, pressure 2
508 255684 MANIFOLD, mix, assy 1
509 - - - VALVE, restrictor, assy 1
510 214037 VALVE, solvent, shutoff, assy 1
511 - - - HANDLE, valve, mix manifold
(blue and green)
2
512 15T072 GRIP, cord 2
513 15T071 FITTING, thermo-well 2
