Graco XM Series Repair Parts

Parts
84 313289W

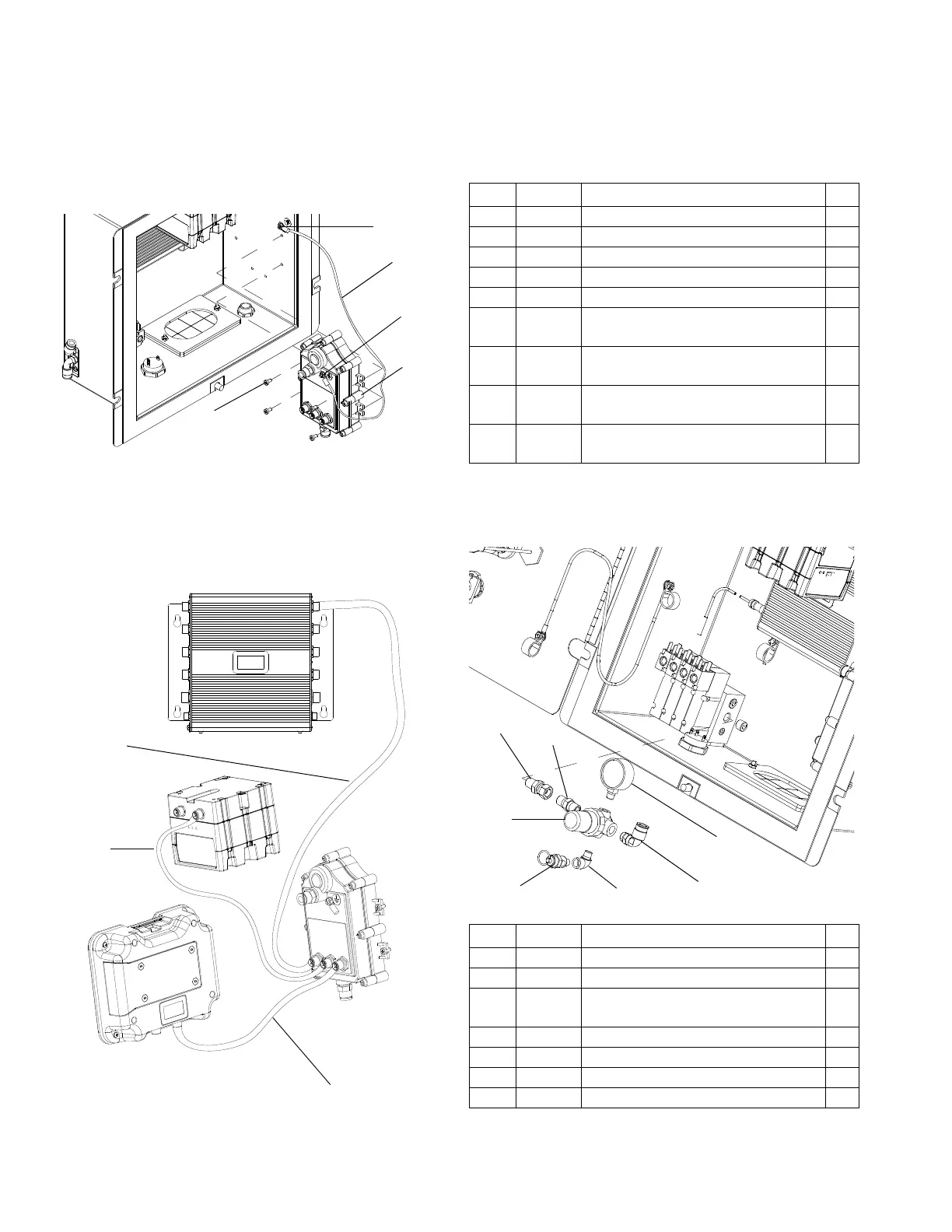

Control Box Power Supply Options
Alternator Assembly
Air Regulator Assembly
262, 263
260
261
265
263
268
266
267
Alternator Assembly Cable Connections
Ref. Part Description Qty.
260 15B090 WIRE, grounding, door
1
261 100284 NUT, hex
1
262 102063 WASHER, lock; carbon steel
1
263 110637 SCREW, machine pan head
5
264‡ C12508 TUBING, round; nylon; 5.0 ft
265 255728 ALTERNATOR, module; see page
89
1
266 15V778 CABLE, CAN, IS, female B/female
B; 20 in.
1
267 15V782 CABLE, CAN, IS, male B/female
B; 20 in.
1
268 15V783 CABLE, CAN, IS, female A/male
B; 39 in.
1
Ref. Part Description Qty.
276 156971 NIPPLE, short; 2 x 1/4-18 npt
1
277 115243 REGULATOR, air; 1/4 npt
1
278 112307 ELBOW, union; 90 deg.; 1/8 npt(f)
x 1/8 npt(m); carbon steel
1
279 15W017 VALVE, safety, regulator
1
280 115841 ELBOW, swivel, male; 1/4 npt
1
281 104655 GAUGE, air pressure
1
282 156823 SWIVEL, union; 2 x 1/4-18 npt
1
281
279
280
278
277
276
282
