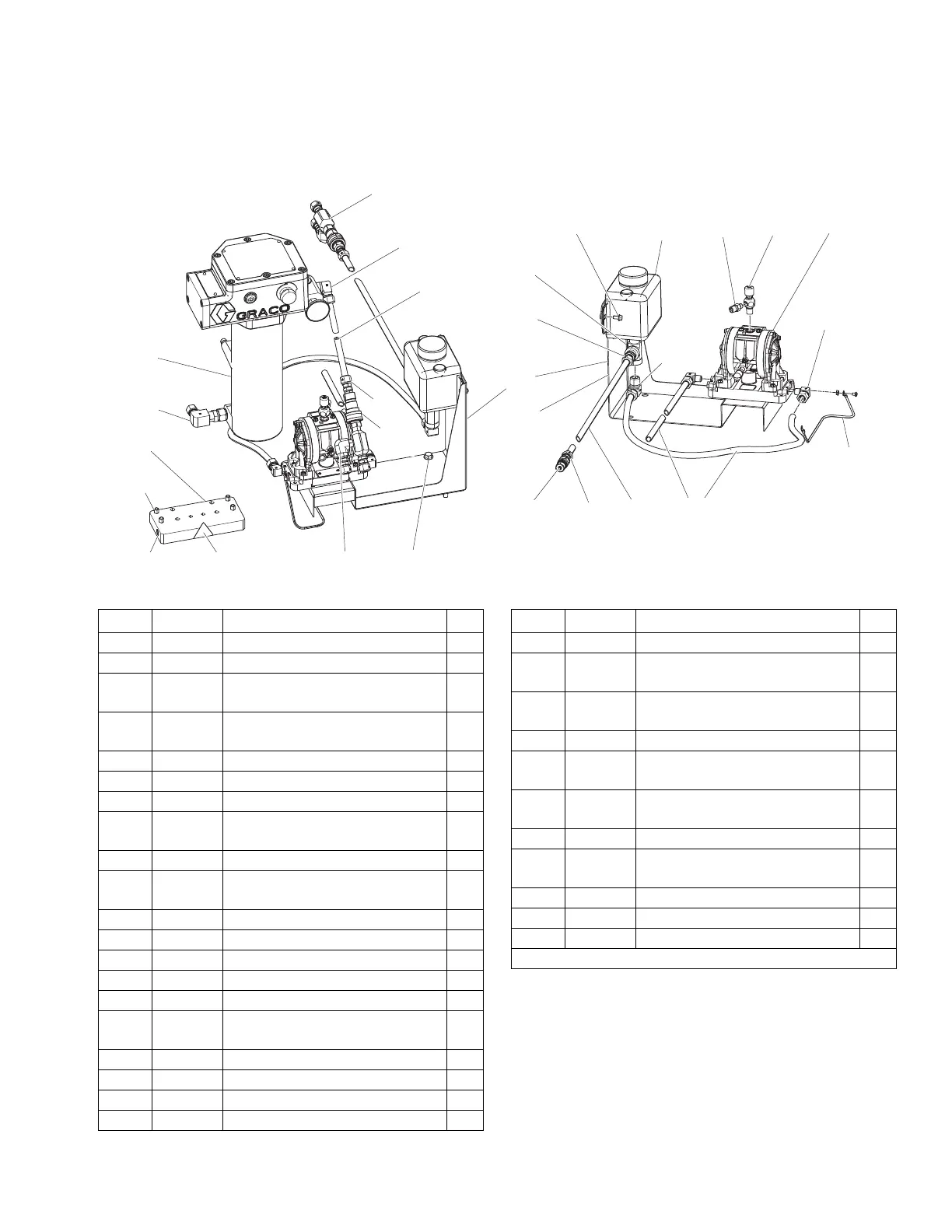

Graco XM Series Repair Parts

Parts
313289W 93
Water-Jacketed Heated Hose
WLD

0
1408
1402
1407
1412
1403
1405
1404
1413 1414
1401k
1401h
1401e
1401w
1401f
1401
1401g
1401z
1401p
1401n
1401m
1401t
1401b
1406
1411
1401d
1401a
1409
1410
Ref. Part Description Qty.
1401 - - - - - PUMP, XP-HF, htd-hose-re-circ 1
1401a 108126 FITTING, tee, street 1
1401b 126897 FITTING, elbow, 1/2 tube x 1/4
nptm
2
1401c 126898 FITTING, elbow, 1/2 tube x 1/2
nptm
1
1401d 126899 FITTING, 1/2 tube x 1/2 nptm 1
1401e 16D939 FITTING, nipple, reducing 1
1401f 16R871 BOTTLE, overflow, 1/2 npt 1
1401g 16T745 BRACKET, water circ, mount,
paint
1
1401h 206264 VALVE, needle 1
1401k 24P835 PUMP, acetal, w/pvdf check,
Husky
1
1401w 113161 SCREW, flange, hex hd 2
1401m 17N910 TUBE, 34 in. x 0.5 o.d., nylon 2
1401n 17N911 TUBE, blue, 0.5 o.d., nylon 1
1401p 126900 FITTING, 1/2 tube x 3/8 nptm 1
1401z - - - - - FITTING, nipple, quick coupling 1
1401t 17N595 WIRE, ground, door to
enclosure
1
1402 245863 HEATER, paint 1
1403 16T294 PLATE, heater transfer, pfp 2k 1
1404 100721 PLUG, pipe 2
1405 112785 SCREW, hex hd, flanged 4
1406 189285 LABEL, safety, burn 1
1407 126896 FITTING, elbow,1/2 tube x 1/2
nptf
1
1408 126898 FITTING, elbow,1/2 tube x 1/2
nptm
1
1409 126900 FITTING, 1/2 tube x 3/8 nptm 1
1410 17D306 FITTING, coupler, quick
coupling
1
1411 17P594 FITTING, assy, hose coupler,
split
1
1412 17P759 TUBE, 48 in. x 0.5 o.d., nylon 1
1413 17S051 FITTING, assy, hose nipple,
split
1
1414 112395 SCREW, cap, flng hd 2
1415 - - - - - SEALANT, pipe, sst 1
* - - - - - TAPE, tfe, sealant 1
* Not Shown
