Component Identification
18 312359R
Component Identification
Typical Setup: 25 Gallon Double Wall Hopper with Recirculation
Key:
A Frame
B Fluid Control Assembly (see Fluid Control Assembly
page 21).
C 25 Gallon Double Wall Hopper
E Main Air Valve
F GCA Control Display (see User Interface, page 24)
G Pump Control On and Off Buttons
H Air Filter
J Air Controls
K Viscon HF Fluid Heater
L Junction Box/Heater Controls (see Junction Box, page
22)
M Viscon HF Fluid Heater Control
N Air Powered Agitator
P Pressure Feed Pump
R Fluid Inlet Assembly
S Tank Pallet
T Fill Port Cap
U Immersion Heater
V Air Motor
W Diaphragm Pump Assembly (Water Heated Hose only)
X Overflow Tank (Water Heated Hose only)
Y Viscon HP Fluid Heater (Water Heated Hose only)
LL Integrator Hose
SS Static Mixer Housing
TT Fluid Whip Hose
UU Airless Spray Gun
VV Static Mixer Adapter
WWStatic Mixing Element

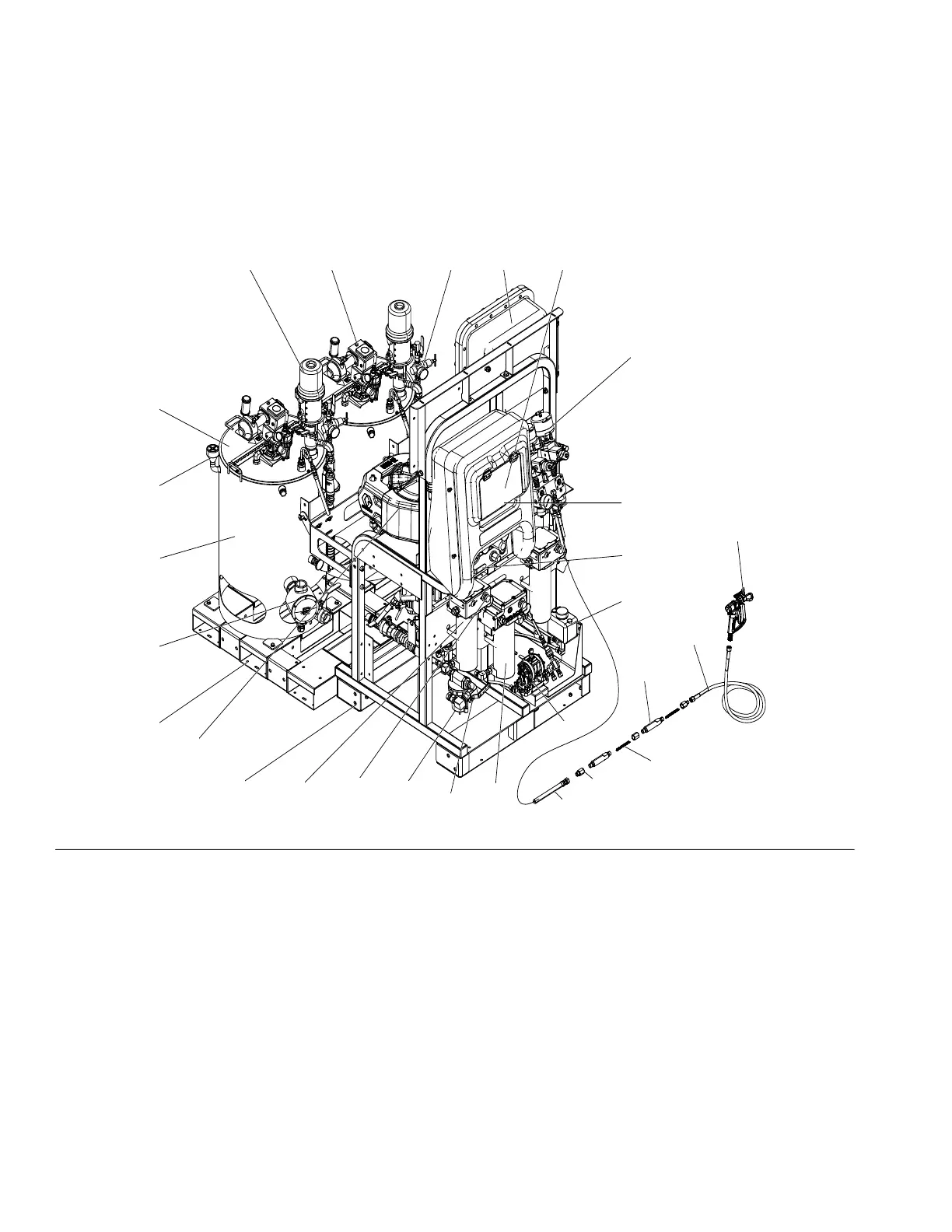

FIG. 1: Typical Setup: 25 Gallon Double Wall Hopper with Recirculation (Front View)
A
K
M
E
H
J
R FNP L
B
C
S
T
U
V
X
Y
Z
ti37276a
TT
UU
WW
SS
VV
LL
W
G
