Appendix A
92 312359R
Automatically Displayed Screens

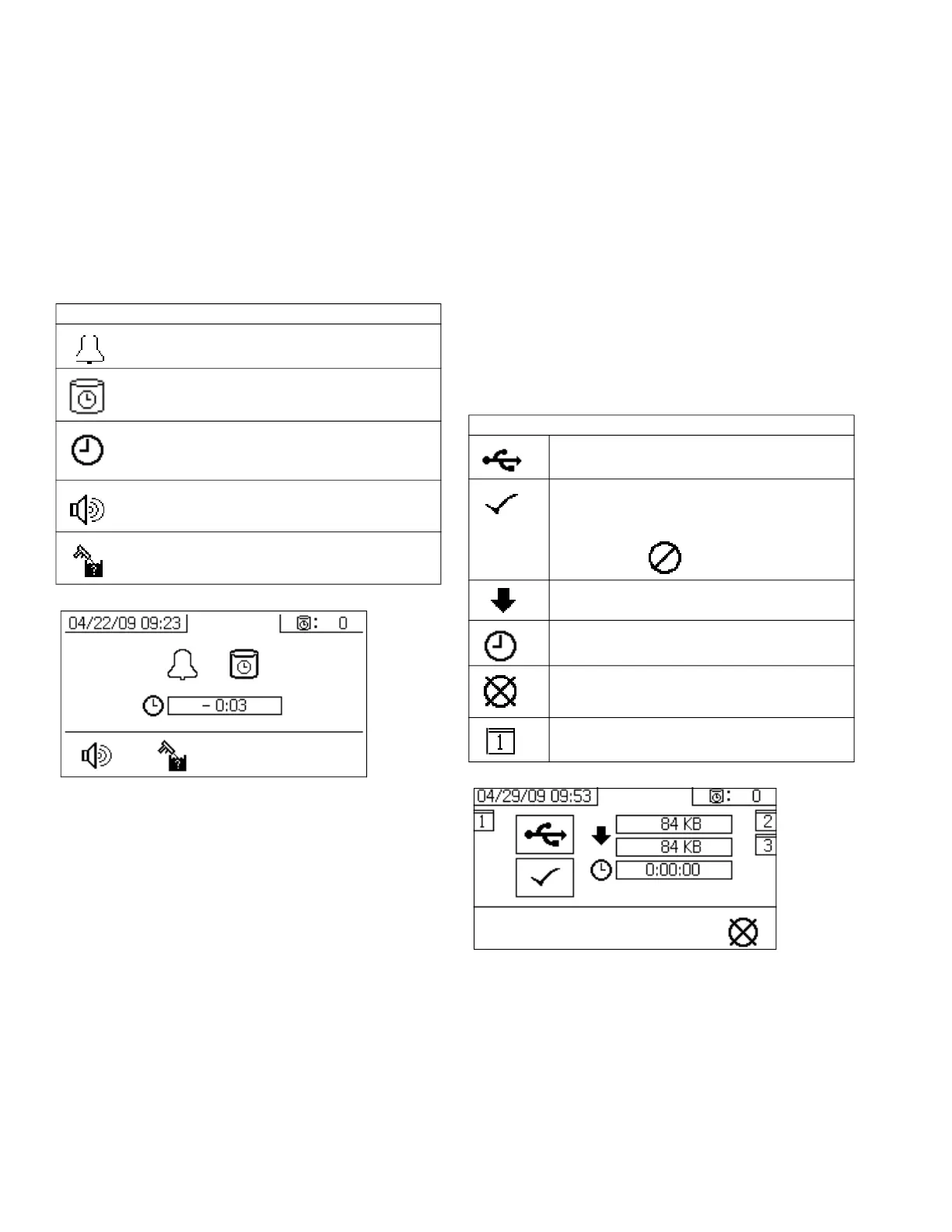

Potlife Screen
The potlife screen automatically displays when a potlife
advisory occurs. The screen automatically closes when
the advisory end or the user presses the flush confirm
button. Refer to the following table for more details.
USB Screen
The USB screen automatically displays and the selected
log(s) automatically starts downloading when the USB
flash drive is inserted into the USB port (DR).
Inserting the USB flash drive while the sprayer is
running automatically stops sprayer operation.
Removing the USB flash drive automatically closes the
USB screen.
The log selected for current download is displayed in the
single box next to the USB icon. The other available
logs are displayed in the boxes on the right side of the
screen. Refer to the following table for more details.
Recommended USB Flash Drive
Use the USB flash drive (17L724) included with the XM
sprayer for data download.
Icon Function
Advisory has been issued.
Potlife timer is enabled.
Time after potlife expires. Starts at 0.00 and
counts down in negative one minute
intervals.
Press to mute advisory buzzer.
Press to confirm that mixed hose has been
flushed. Resets potlife timer.
Icon Function
Flashes while data download is in process.
Check mark appears after download
completes. Indicates download was
successful. If download was not
successful, appears.
Displays total memory to download and
remaining memory left to download.
Displays time remaining for log download
to complete.
Press to cancel download. If download is
canceled, remove USB flash drive.
Indicates which log(s) is being
downloaded.
