Grant GSD1 User Manual

6 In-Roof System Installation
24
In-Roof System
Installation
Item Description
01 Bottom batten (30 x 50mm)*
02-A Lower middle batten
(30 x 50mm)*
02-B Upper middle batten
Middle batten (30 x 90mm)*
03 Top batten (30 x 50mm)*
04 Mounting bracket
05 Anchor block
06 Collector connection kit
07 Collector to collector connection
kit (portrait collectors only)
*
Battens to be supplied by installer. Dimensions
given are for guidance - batten thickness must
match existing tile battens. Timber must be
treated e.g. Tanalised or similar.
Item Description
08 Cylinder anchor bolt
09-A Side gutter - Left hand
09-B Side gutter - Right hand
10-A Base tray - lower section
10-B Base tray - upper section
11 Hydraulic connection
12 Insulation
13 Temperature sensor
14 Cover strip
15-A** Bottom flashing - Left hand
(for slates)
15-B** Bottom flashing - Right hand
(for slates)
Item Description
16-A Bottom apron - Left hand
flashing (for tiles)
16-B Bottom apron - Right hand
flashing (for tiles)
17-A Top cover - Left hand
flashing
17-B Top cover - Right hand
flashing
18 Fixing screw - not shown
19 Clip (with nail - not shown)
20 Foam draught seal wedge
21 Foam draught seal block
22 Closure strip

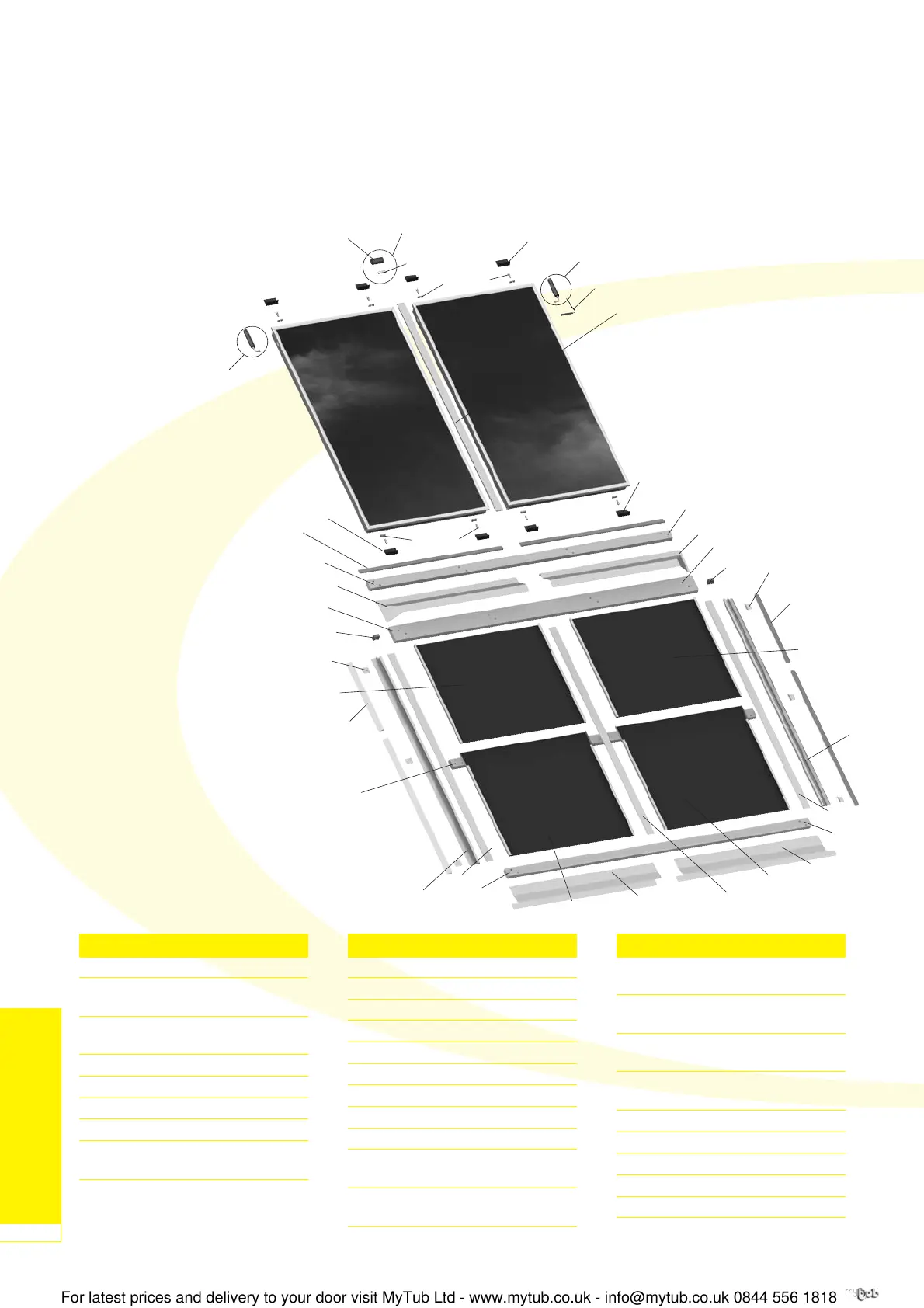

Figure 48: Installation Summary
Vertical Collector Installation
6.1 Installation Summary
The In-Roof installation kit allows the
solar collectors to be fitted into the roof
covering (tiles or slates) either
horizontally or vertically.
09-A
09-B
16-B
16-A
17-B
17-A
12
07
11
04
04
02-B
01
01
10-A
10-A
21
21
02-B
02-A
19
19
10-B
10-B
20
20
14
14
14
03
03
04
20
05
05
08
08
06
06
13
22
** The standard Grant in-roof kit for
slate roofs may not be suitable for
some reclaimed slate, uneven or rough
slate roofs. In this case please contact
Grant UK for advice and assistance
regarding suitability.
