In-Roof System
Installation
33

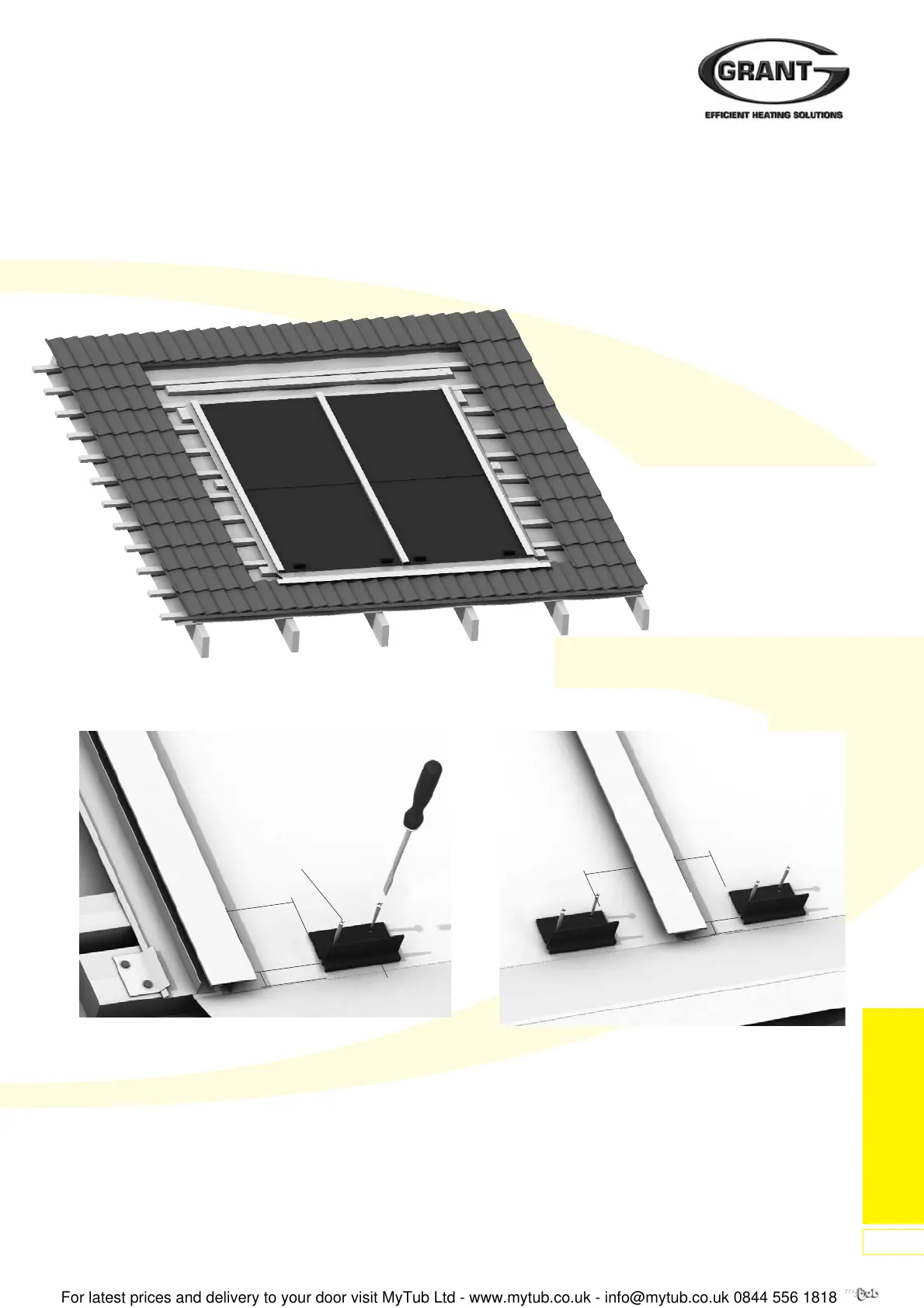

Figure 66: Location of bottom Mounting Brackets
Figure 67: Fixing of bottom Mounting Brackets Figure 68: Bottom Mounting Bracket Dimensions
6.4 Installation of Collectors
1. Position mounting brackets (04) at
the bottom of the base tray using
the dimensions given in Figure 68.
Carefully mark their position on the
base tray with a pencil.
Important:
Ensure brackets are correctly
positioned with the two holes at
the top. Remove protective film
from underside of brackets and
press them into place in the
correct position. Fix in place with
the self-drilling screws supplied
in the kit using the Torx 25
screwdriver bit provided in the
kit. Refer to Figure 67.
16
04
100
10
100
100
10
