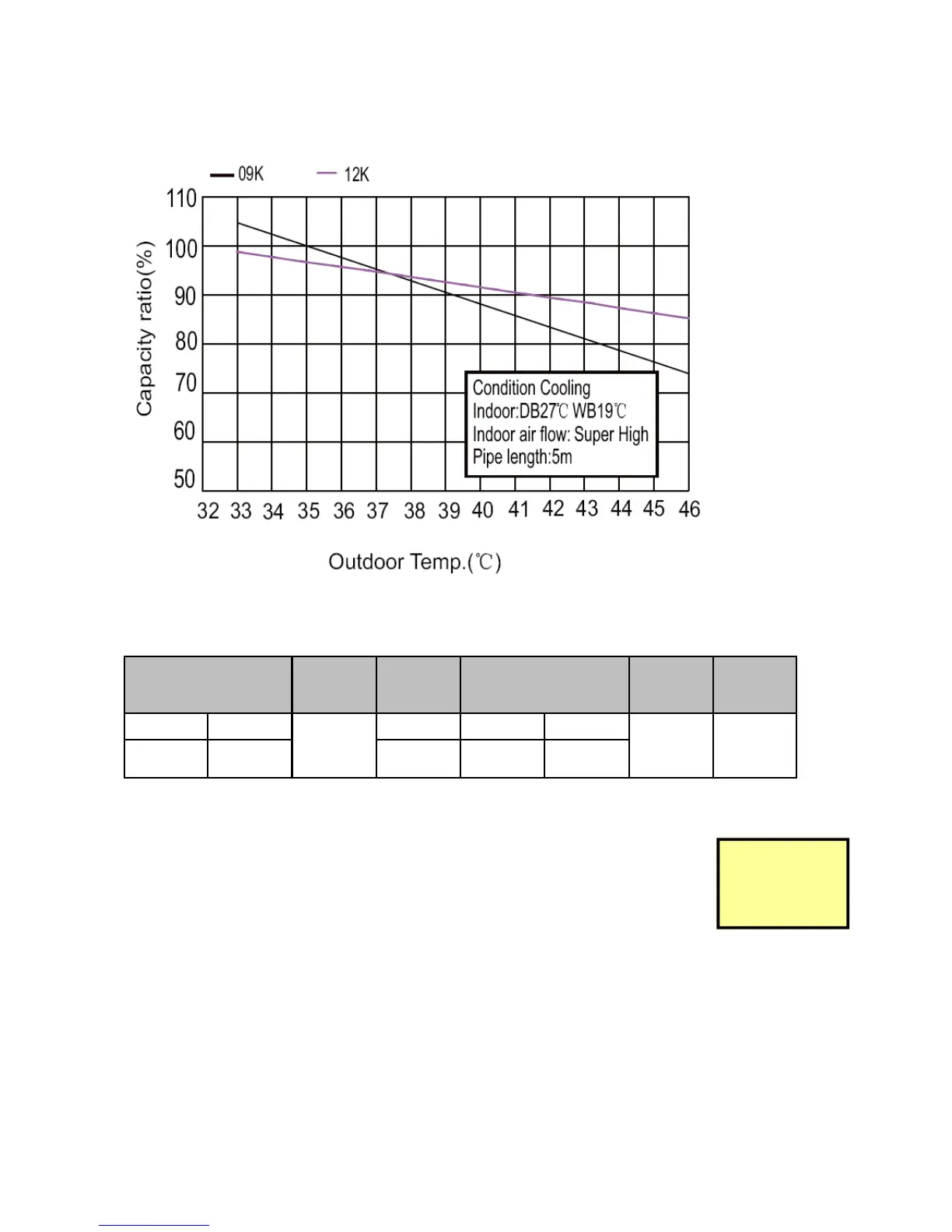

Capacity Variation Ratio According to Temperature
Cooling Mode Only
Operation Data
Notes:
1. Measure surface temperature of heat exchanger pipe around centre of
heat exchanger path (U-Bend) (Thermistor Thermometer)
2. Connection piping conditions (Liquid / Suction) fixed at 5 m
3. P = Suction - Pressure of refrigerant measured at service port connection
4. T1 = Inlet and Outlet Temperature of evaporator (pipe surface Tempera-
ture)
5. T2 = Inlet and Outlet Temperature of condenser (pipe surface Tempera-
ture)
Temperature Condi-
tions in °C
Model
Name
Standard
Pressure
Heat Exchanger
Pipe Temperature
Indoor
Fan
Mode
Outdoor
Fan
Mode
Indoor Outdoor
9K
P (MPa) T1 (°C) T2 (°C)
Super
High
860
27/19 35/24 0.5 to
0.6
8 to 11 83 to 38
Modification of
pipe-length is
not permitted!
To Next Page
