GREE Service Manual GWC09AA / K5NNA6A Page 22
Schematic diagram
Electrical Data
Meaning of Marking
• Indoor Unit
• Outdoor Unit

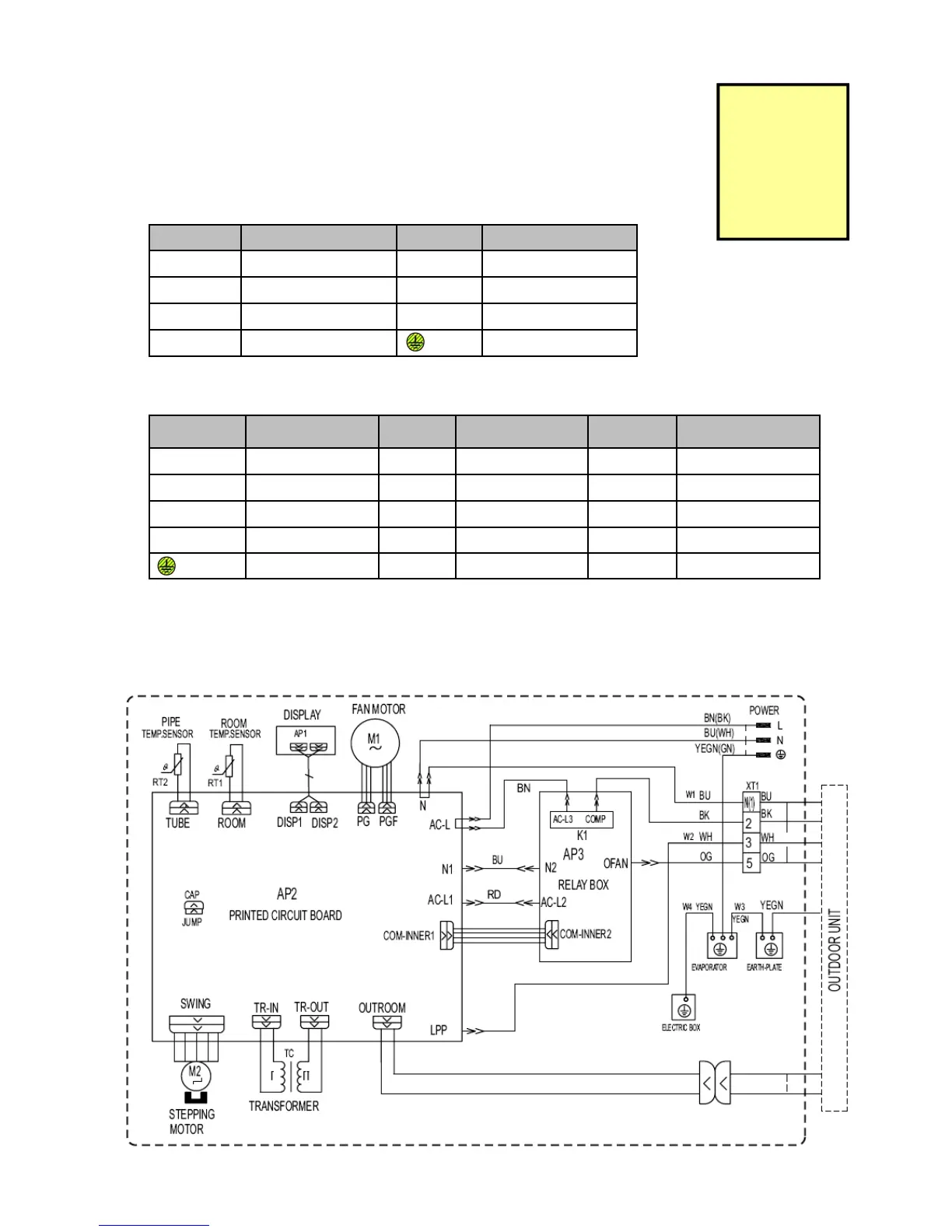

Electrical Wiring - Indoor Unit
These circuit diagrams are subject to change without notice, please refer to the one sup-
plied with the unit.
Symbol Colour Symbol Symbol Colour of Symbol
BU Blue BN Brown
YE Yellow WH White
RD Red BK Black
YEGN Yellow / Green Protective Earth
Symbol Parts Name Symbol Colour Symbol Symbol Colour of Symbol
C1 CBB61 BN Brown WH White
C2 CBB65 BU Blue YE Yellow
SAT Overload BK Black RD Red
COMP Compressor OG Orange YEGN Yellow / Green
Protective Earth GN Green
Do not modify
electrical com-
ponents or
wiring, for
replacements.
Only use OEM
spare-parts!
