46
English

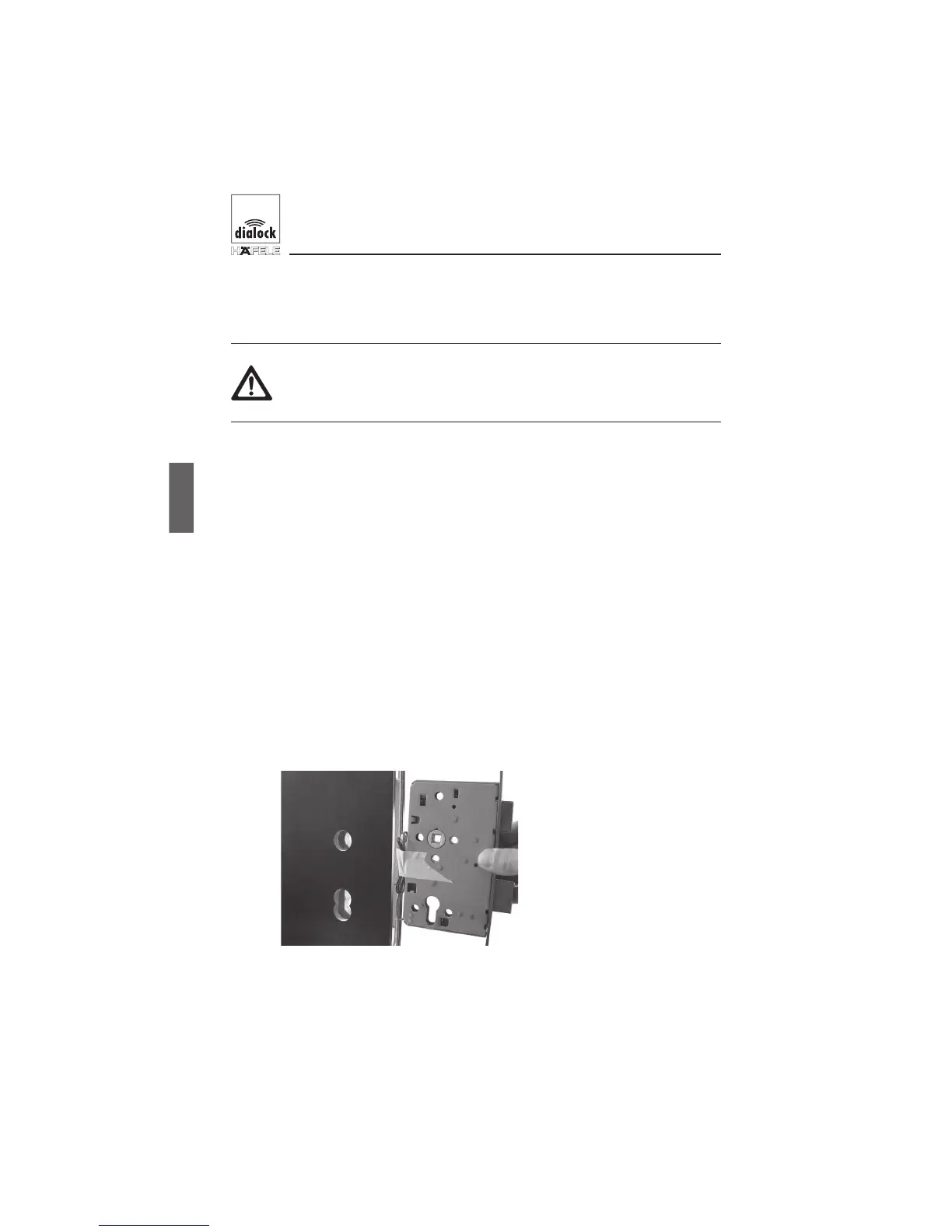

Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
Installation Instructions
Installation
Condensation that forms on cold components can damage the
Dialock DTSH door terminal.
ð Please ensure that all components are at ambient temperature!
The way in which the fitting is mounted to wooden doors is described in
the following.
Please adhere to the following procedure when installing the Dialock
DTSH door terminal:
Insert mortise lockA. Page 47
Drill holes for fixing screws and connecting cableB. Page 48
Remove mortise lock, clean and re-insertC. Page 53
Insert single profile cylinderD. Page 54
Adjust external module for right-pointed/left-pointed door E.
handle
Page 56
Secure inner square spindleF. Page 57
Mount external module of Dialock DTSH door terminalG. Page 58
Mount internal moduleH. Page 60
Fig. 8
With emergency opening
log, protect connecting cable
during the drilling procedure
as shown in the illustration.
