Häfele dialock DTSH User Manual

Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
49
English
Installation Instructions
Depth cutting only needed for Fig. 14
emergency opening log
Depth cutting to lock pocket Ø 32 mm
Centring hole for
router cutter with
centring pin
Space for
coupling
Inside of
door
Outside of
door

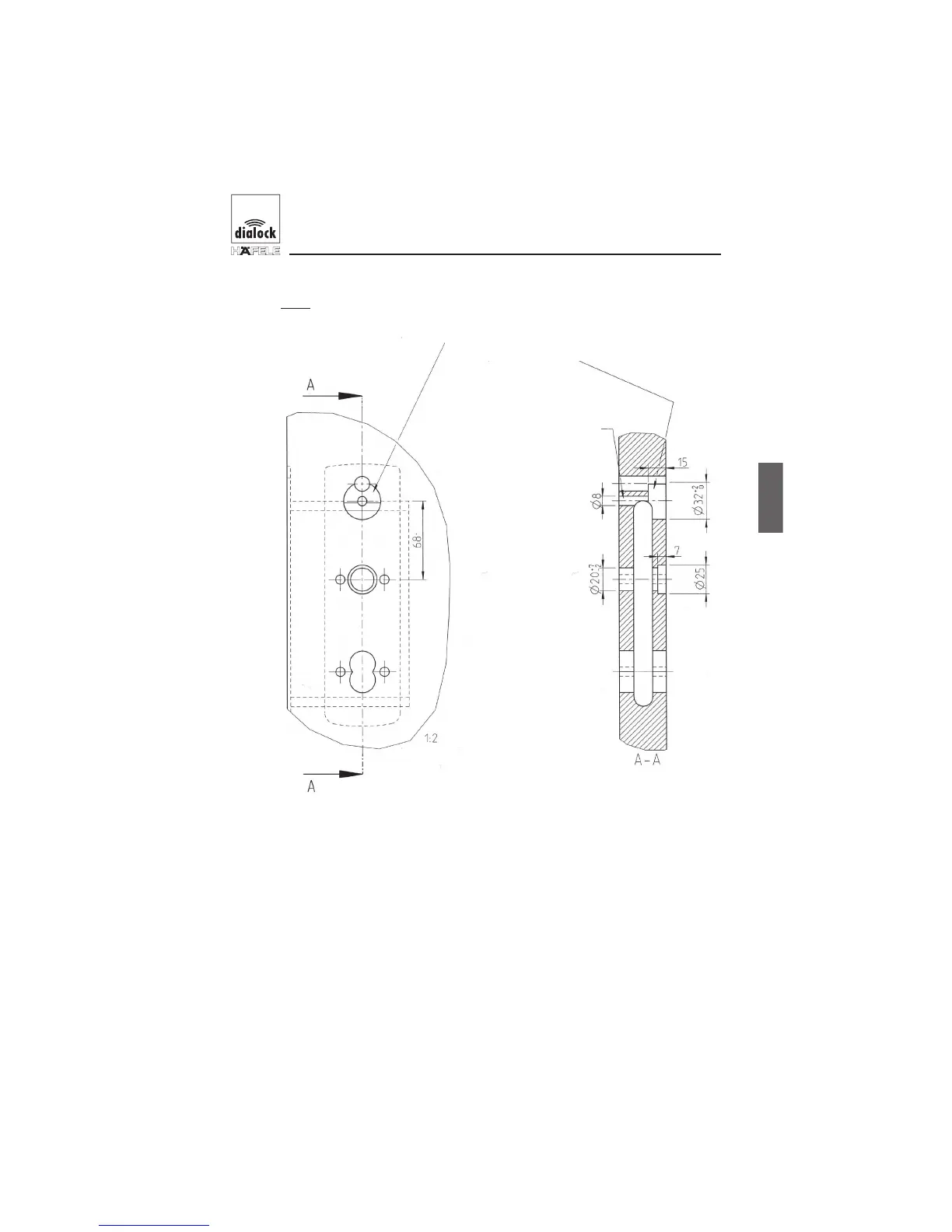

Section:
Drilling pattern with Fig. 15
emergency opening
logging
Only for emergency opening log
