Häfele dialock DTSH User Manual

Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
51
English
Installation Instructions

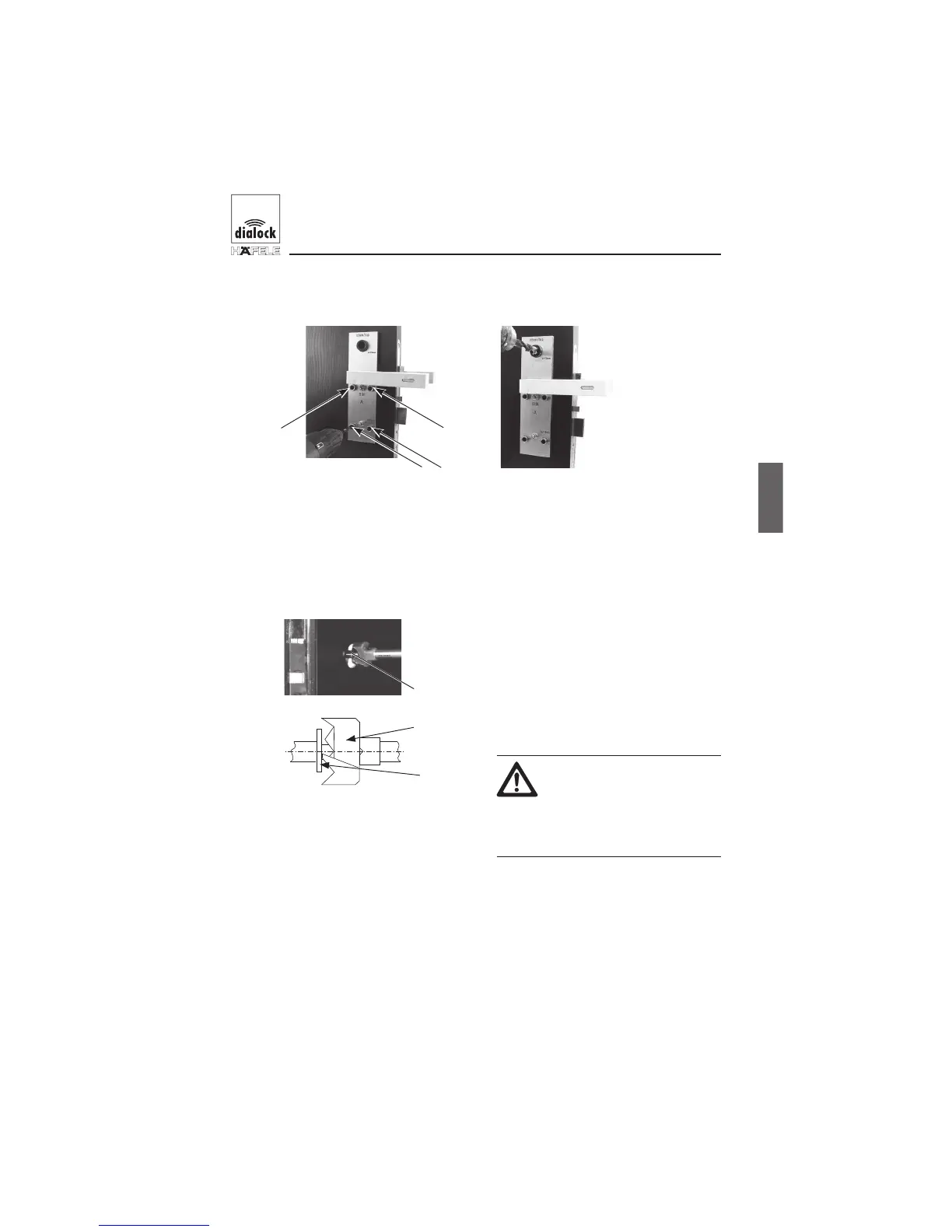

Drill holes on inside of door
Fig. 18 Fig. 19
Drill the fixing holes at both sides
as far as the middle of the door leaf
using the 8 mm drill bit.
Drill 13 mm hole at both sides for
cable connection.
Fig. 20
Fig. 21
Cut out the coupling area.
Note:
Cutting only required on the out-
side.
Do not damage mortise
lock with router cutter.
Slide the spacer onto the
journal of the router cut-
ter to prevent damage.
(Fig. 20, 21)
Spacer
25 mm router
cutter
25 mm router
cutter
Spacer
