Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
Installation Instructions
E. Adjust external module for right-pointed/left-pointed door handle
The Dialock DTSH FH door terminal is supplied already set up and
must not be modified.
Place lever handle aperture part onto outer square spindle of external
module so that the direction of movement matches the application.

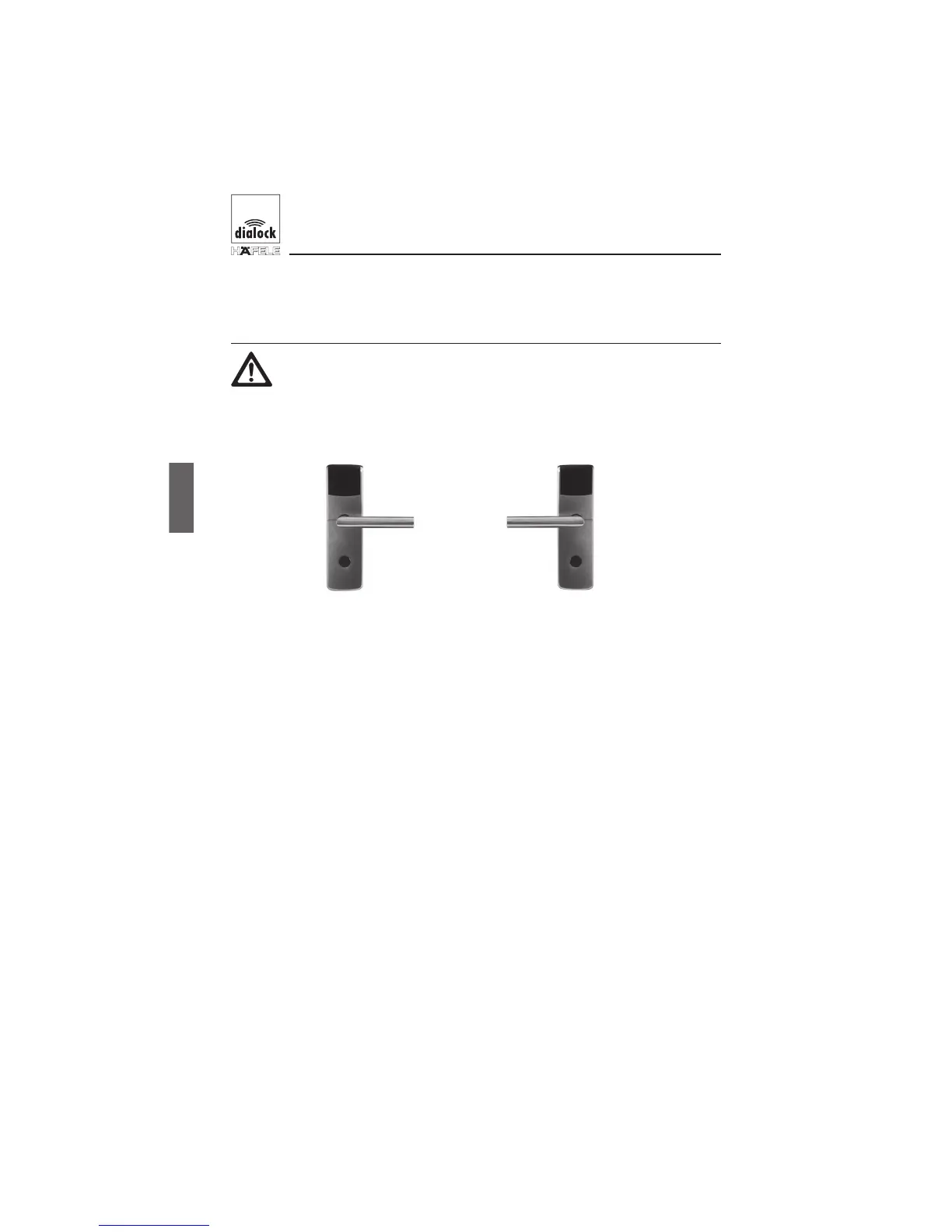

Fig. 30
Right-pointed door handle,
zero position
Fig. 31
Left-pointed door handle leftside
zero position
Rotate outer square spindle with lever handle aperture part to upper 1.
stop position (zero position) and hold.
Gently knock pin (3 x 24) mm into the hole marked "R" or "L" with a 2.
hammer. Set stop limit by inserting pin into "R45" or "L45" hole.
Secure pins with stickers so that they do not fall out.3.
The spring of the lever handle aperture part is pre-tensioned.
