Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
43
English
Installation Instructions
Installation instructions
DTSH:
Do not mount to fire resistant and smoke control doors!
Please contact your Häfele sales office.
Installation requirement
The doors must be prepared for the use of DIN 18 251 locks (lock pocket
and mortise lock).

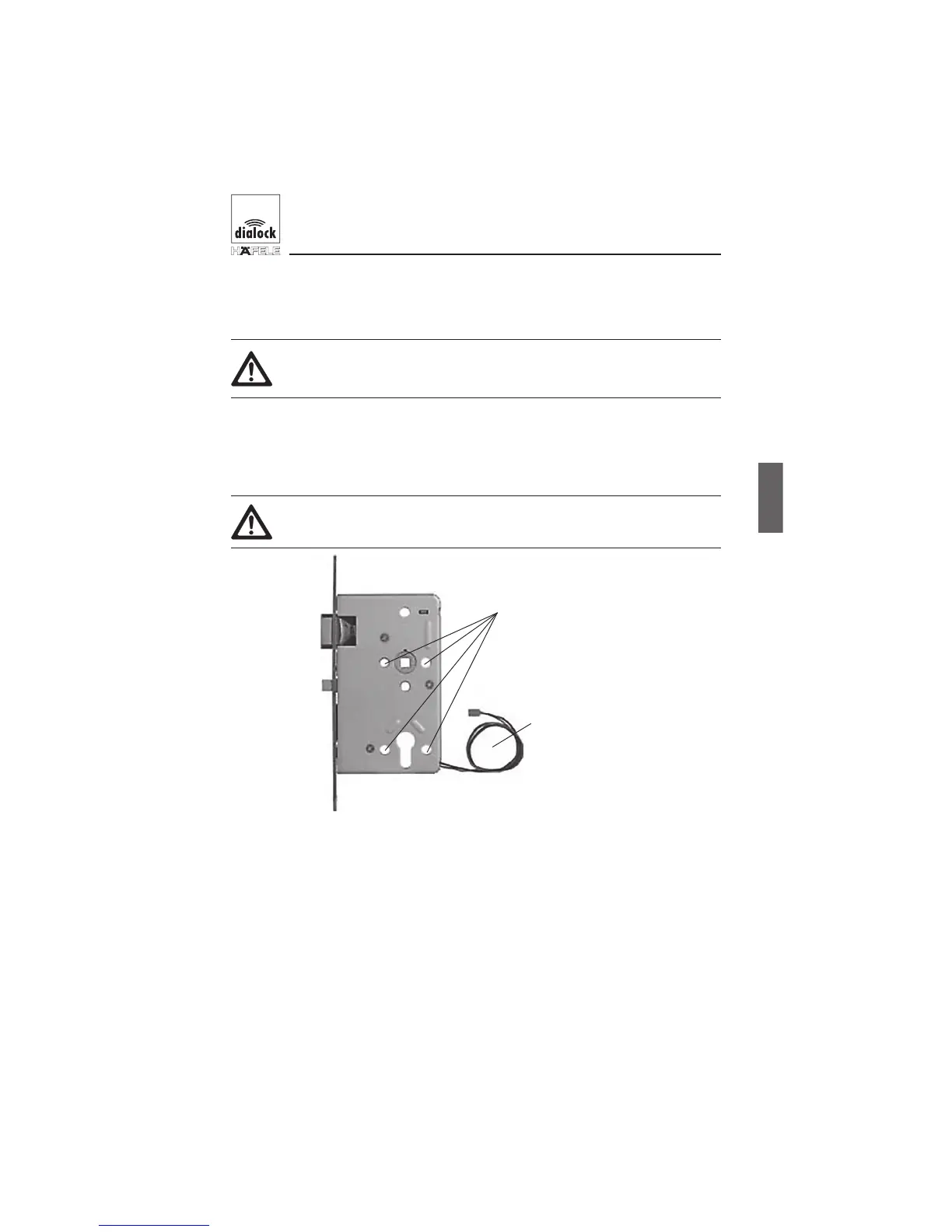

The mortise lock must have the depicted Mortice lock bolt-through
fixing holes for the fitting.
Fig. 4
The length of the following Dialock DTSH door terminal components
depends on the thickness of the door leaf. They must therefore be selected
accordingly.
Mounting set consisting of: Fixing screws and inner square spindle (for
scope of delivery see page 39).
Single profile cylinder (not included in the scope of delivery).
Cable only required for mortise
locks with emergency opening
log.
Mortice lock bolt-through fixing holes
