60
English
Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
Installation Instructions

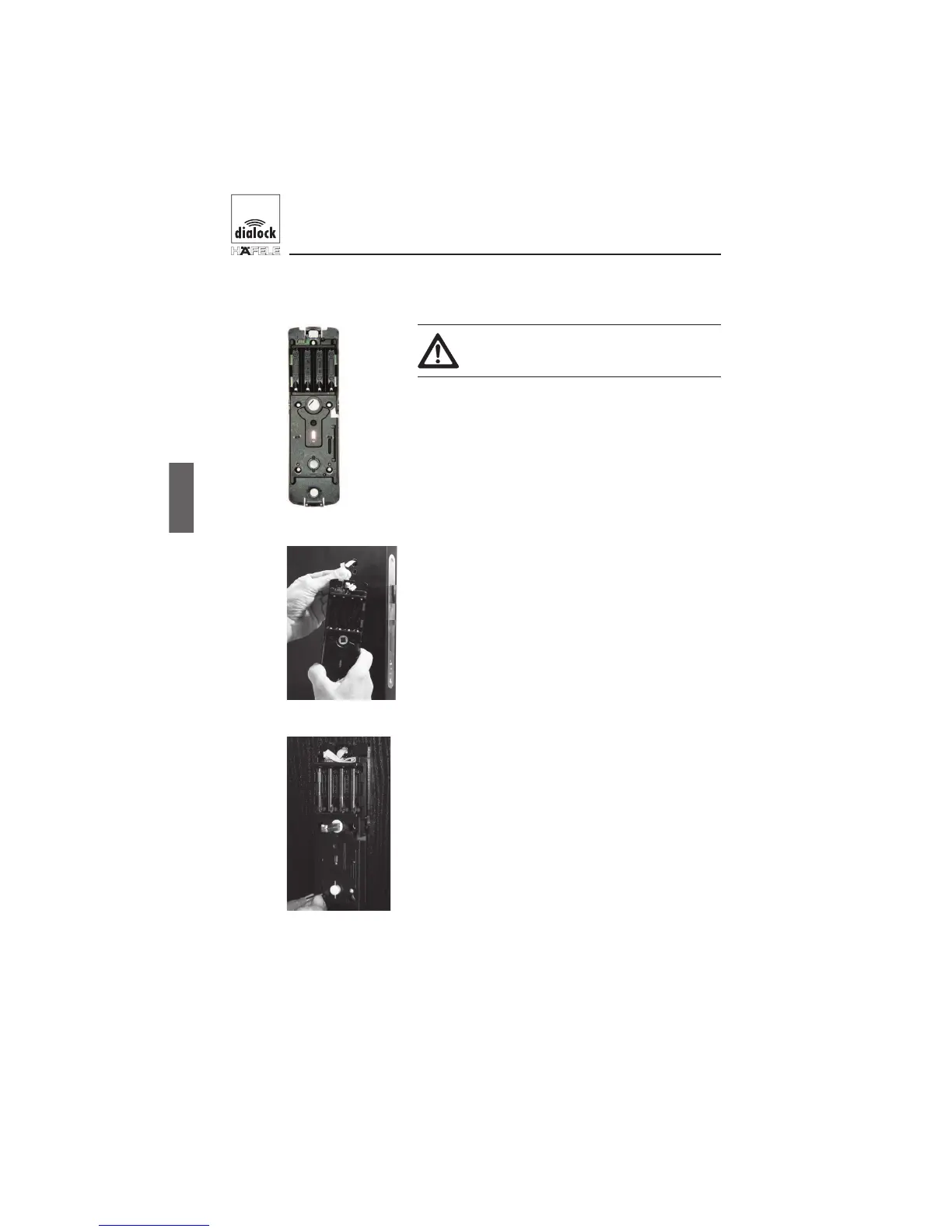

H. Mount internal module
Fig. 41
Fig. 42
Fig. 43
Risk of crushing!
Pay attention to cable routing!
Line 13 mm DTSH FH cable hole with Proma-1.
seal strips, shorten to door leaf thickness and
glue in parallel to cable.
Lead connector of connecting cable through 2.
opening in internal module fixing plate, fig. 42.
Place internal module fixing plate on inside of 3.
door leaf.
Loosely secure fixing plate using the four fixing 4.
screws.
Check vertical alignment at internal and exter-5.
nal module and then tighten fixing screws.
Plug connector of connecting cable into socket 6.
above battery holder and roll up connecting
cable as shown in fig. 43.
Insert battery into battery holder. 7.
Pay attention to correct polarity!
