Häfele dialock DTSH User Manual

Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
47
English
Installation Instructions

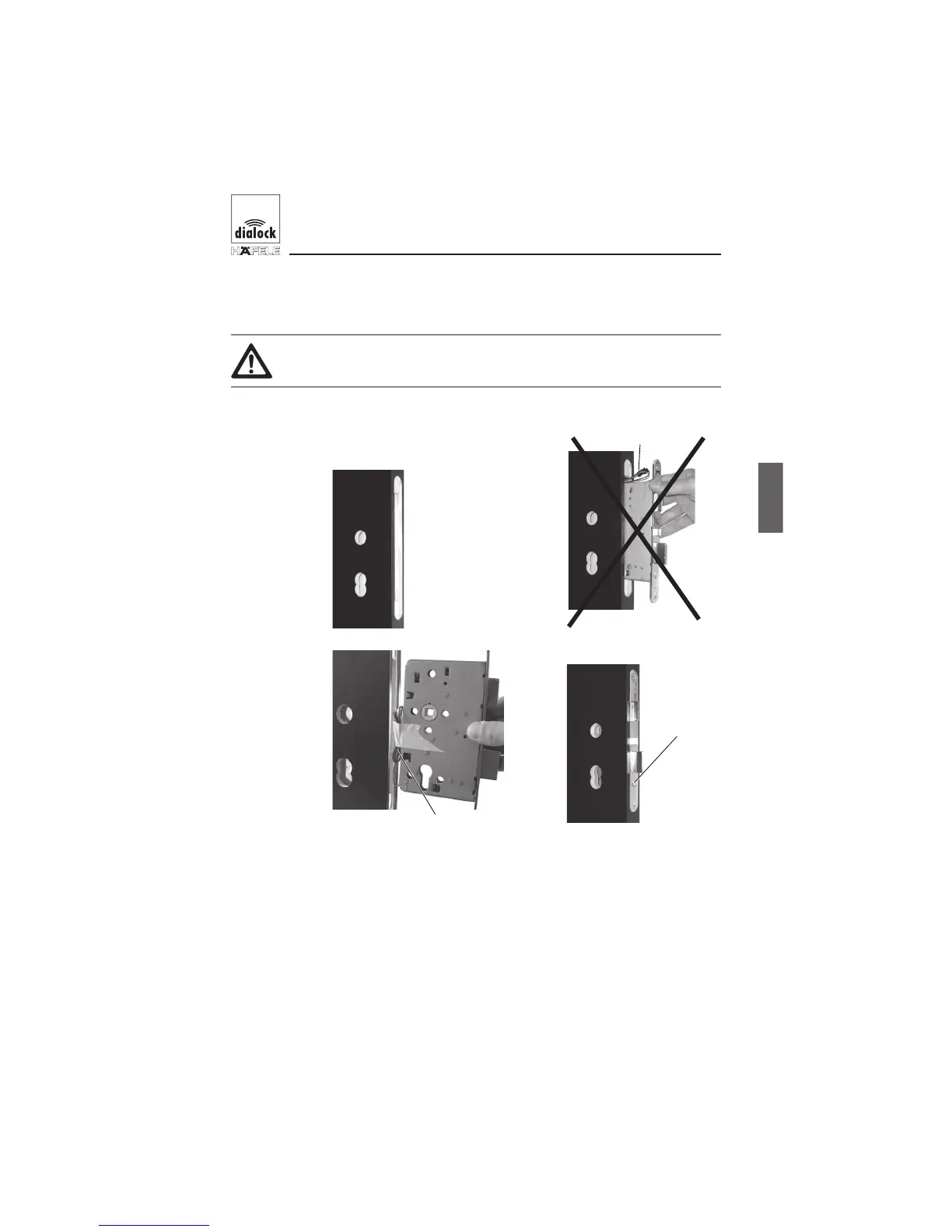

Insert mortise lockA.
Risk of the cable being crushed by mortise lock with emergency
opening log!
Insert mortise lock.1.
Fig. 9
cable
Fig. 10
cable
Fig. 11
Hooded
screw
Fig. 12
Screw in the mortise lock. 2.
With mortise lock with emergency opening log, the mortise lock con-
necting cable must be fixed in position as shown in fig. 11.
Check position of mortise lock using a locking cylinder. The locking cyl-3.
inder must be easy to insert. If necessary, increase size of lock pocket
or clear the locking cylinder access route.
incorrect
correct
