Häfele EFL 30 - Structure and function; Product overview

39
HDE 16.05.2022 732.22.110
3. Structure and function
3.1 Product overview

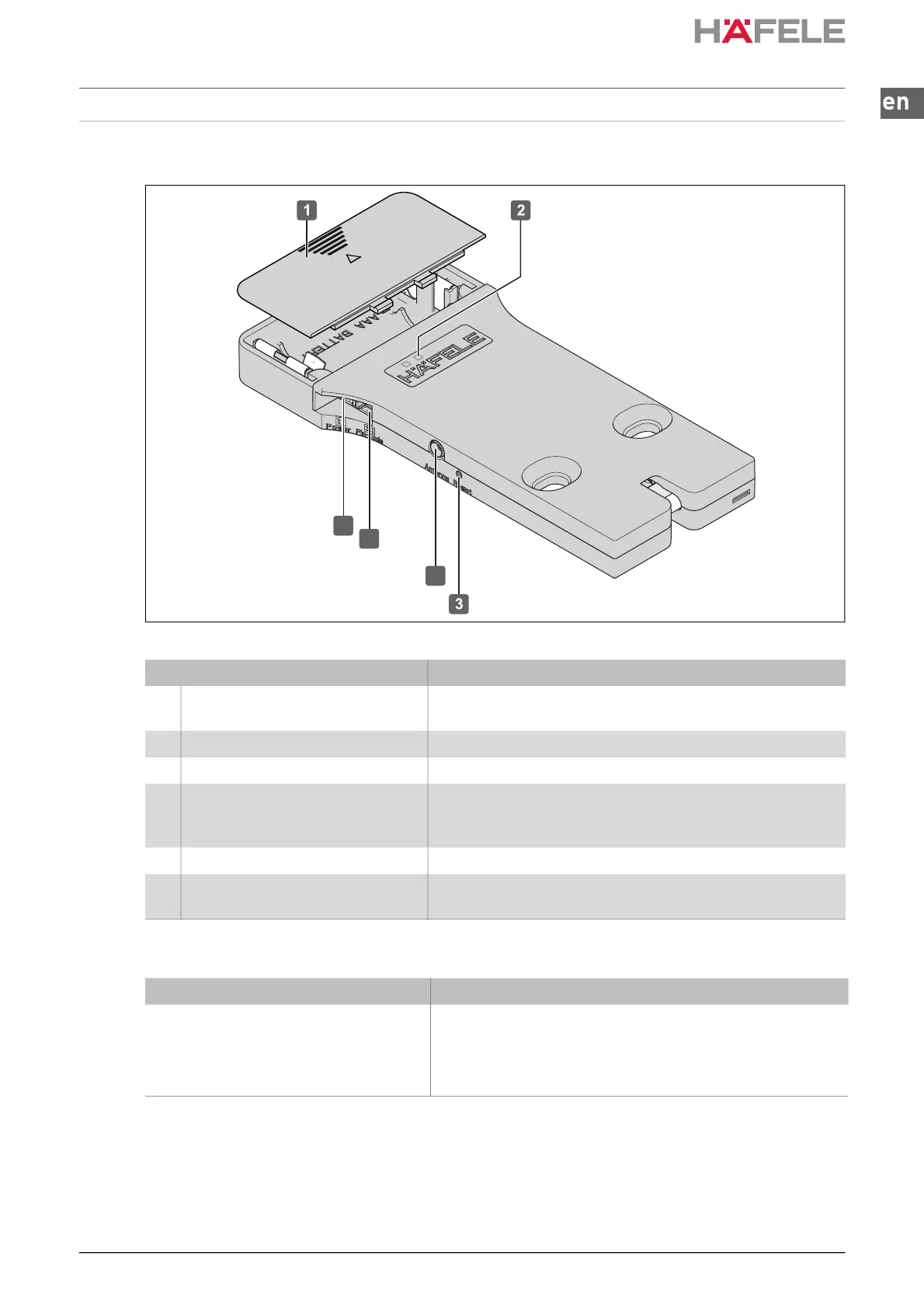

Fig. 1: Overview
The system can be extended with the following components.
Basic components Description
1 Battery compartment (power
supply)
•
 3.2 Technical data, page 41
2 Control LEDs (red and green) • Visual signalling
3 Reset button •  10. Reset, page 56
4 External supply voltage
connection
CC 30 / PS 30
•  3.2 Technical data, page 41
5 PIN code keypad lock • not available
6 External antenna connection
FAN 30
•  3.2 Technical data, page 41
Extension Description
FAN 30 • Reader unit with integrated LED
• LED red/green
red: in operation, lock locked
green: lock unlocked
4
5
6
