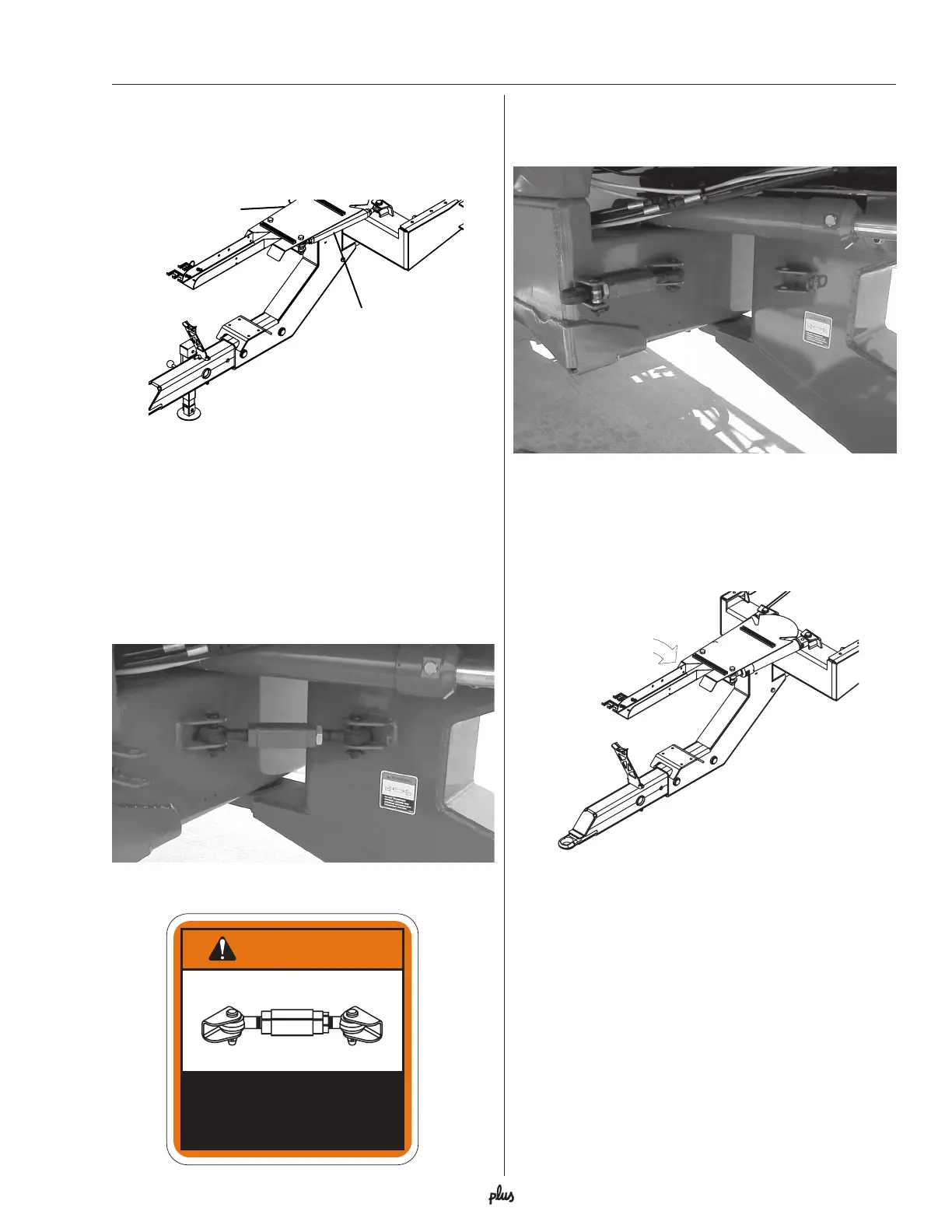

Fixed drawbar adjustment
Make sure the drawbar points straight ahead from its
position on the trailer. If not, the two turnbuckles A can
be adjusted until the drawbar is centered.
STEERING drawbar (optional)
Transport lock (if fitted)
The transport lock is a safeguard that will keep the
drawbar in a centered position in case of hydraulic
leakage during transport on public roads.
The transport lock is held in place by pins and snap
rings. If necessary, the transport lock can be adjusted
by turning the turnbuckle.
Transport lock - Road position
Sprayer setup
A
A
When the hydraulic steering is needed again, remove
the front pin and snap ring, swing the transport lock out
to the field position and secure with pin and snap ring.
Transport lock - Field position
Hose package support
To prevent hoses and wiring from being damaged by
the tractor wheels, all hoses, cables and wires are held
by the hose bracket A fitted to the drawbar.
Check that the length of the hoses and cables is
sufficient in tight turns, especially when the optional
steering drawbar is fitted.
WARNING
DO NOT TRANSPORT
WITHOUT LOCKING THIS
STEERING DRAWBAR INTO
TRANSPORT POSTION.
