Hardi COMMANDER Plus Series User Manual

24 HARDI
®
COMMANDER OPERATOR’S MANUAL
OperationOperation

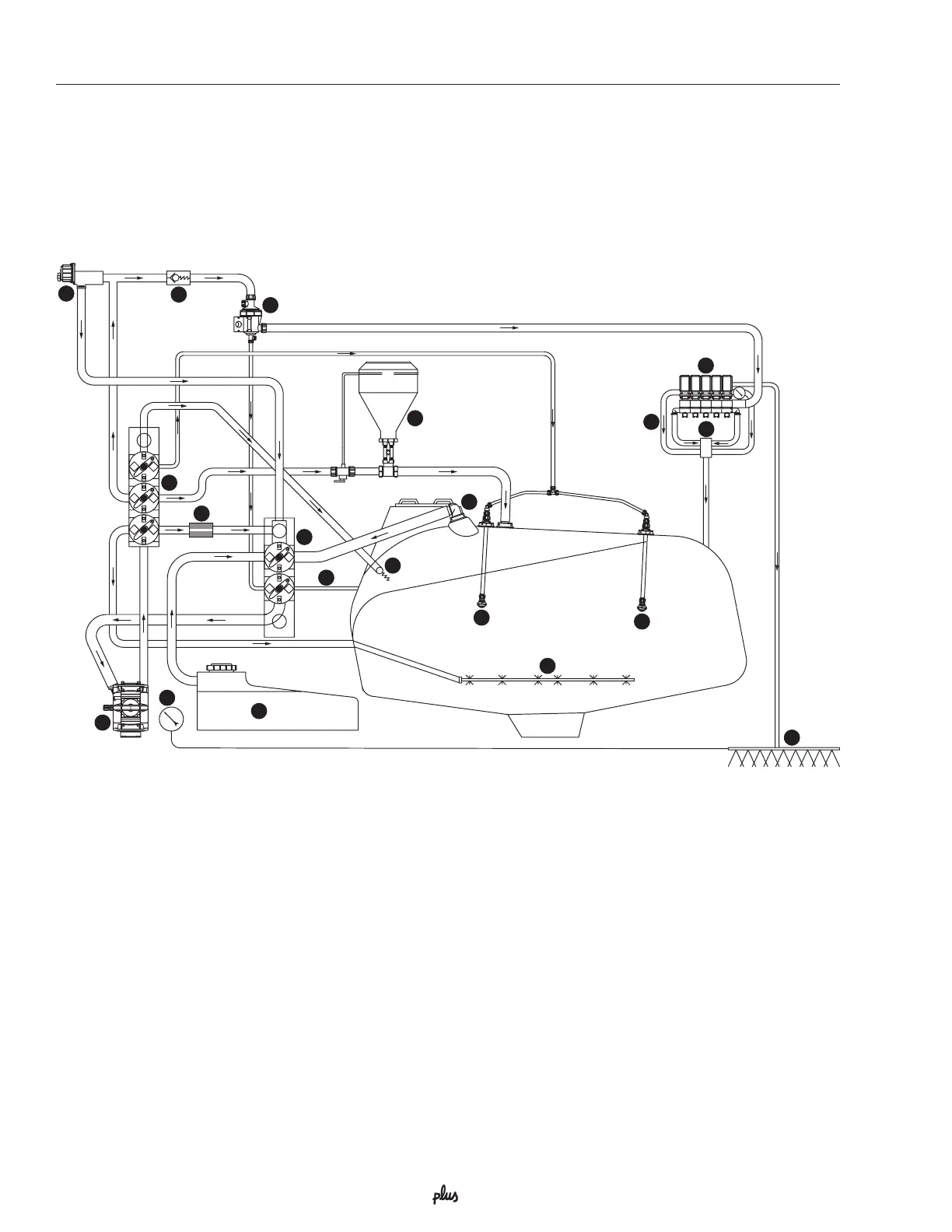

ECP PLUMBING DIAGRAM
The HARDI
®
COMMANDER Plus trailer sprayer uses a diaphragm pump with ECP control.
Take time to review and study the plumbing diagram for your sprayer. By following the flow
through the diagram, you will better understand the various functions of your sprayer system.
1. Suction filter
2. Suction manifold
3. Pump
4. Pressure manifold
5. Sparge tube agitation
6. Safety valve
7. HARDI-MATIC
8. Self-cleaning filter valve return
9. Self-cleaning filter
10. Check valve
11. Boom section valves
12. Pressure agitation return
with restrictor
13. Boom
14. Boom pressure gauge
15. Flush tank
16. HARDI
®
chemical inductor
17. Tank rinse nozzles
18. Pressure equalization return
19. Feed hose pressure return
7
10
9
4
2
12
3
14
15
6
17
17
1
5
13
11
16
8
18
19
