COMMANDER OPERATOR’S MANUAL

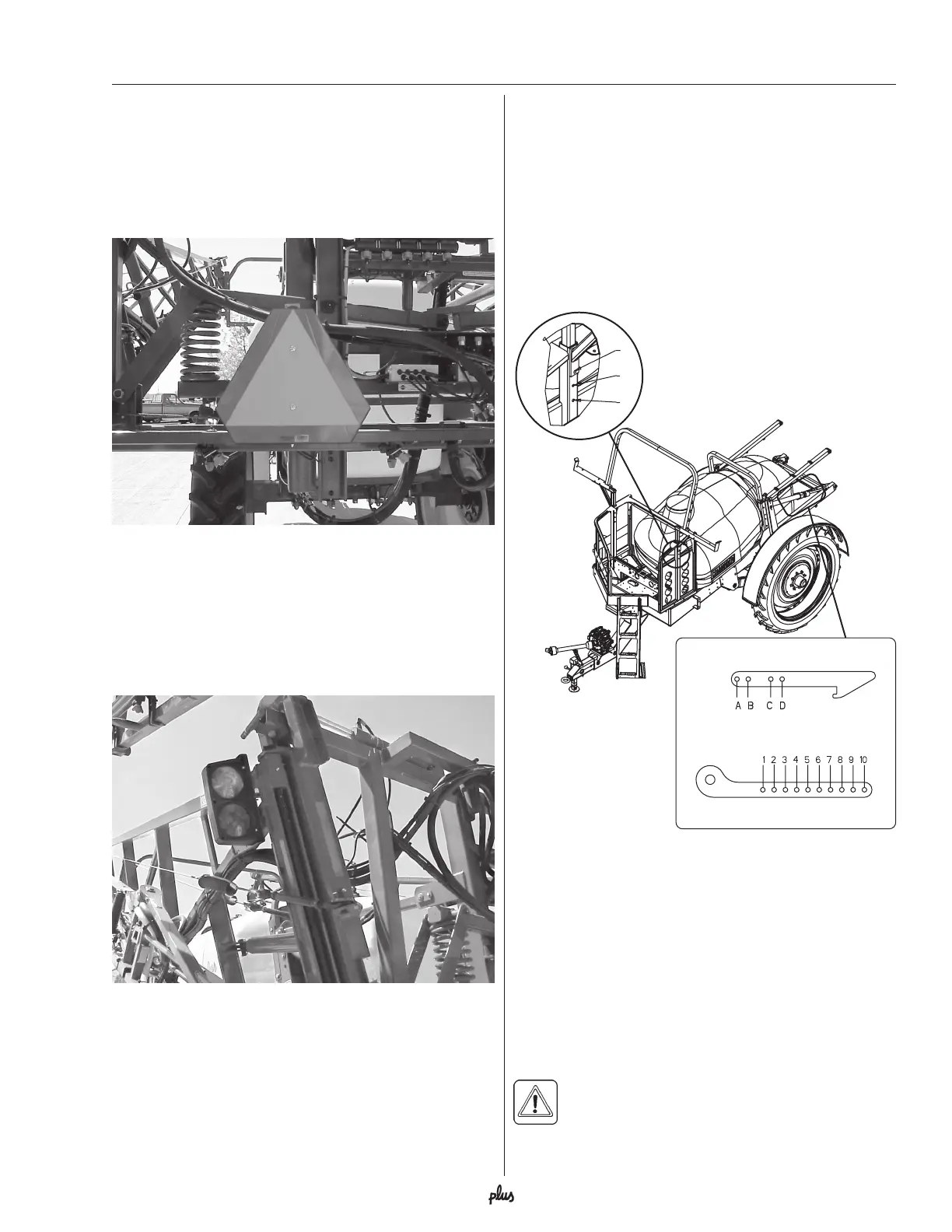

Transport
Roadworthiness
Slow moving tractors and spray equipment can create
a hazard when on public roads. Make sure the S.M.V.
sign is in place and clearly visible from the rear of the
sprayer.
NOTE! Max. driving speed is 15 mph (25 km/h).
Rear lights
Local regulations may require the use of flashing
warning lights. Connect plug for rear lights to the
tractor’s 7-pin socket, and check function of rear lights,
stop lights and direction indicators on both sides before
driving.
Transport brackets, height setting
The transport brackets can be set in different positions
to obtain different transport heights and suitable clear-
ance above various tractor cabins.
When changing the setting of the transport brackets it
is done as a combination of adjusting the transport
brackets themselves (1) and adjusting the transport
locks (2). Always choose a transport height as low as
possible.
2. Transport lock
To change position:
1. Lift and unfold inner sections till lock is disengaged.
2. Loosen and remove the two bolts, which keep the
parts A and B assembled.
3. Reassemble A and B according to desired hole
combination.
Note: Always use both bolts to assemble the lock. The
setting must be identical on both sides.
Note: The rear settings must correspond to the front
settings so the boom is resting on the front as well as
rear locks.
WARNING! The max. transport height must
never exceed 13.1 ft. (4.0 m). Always measure
the actual total height and choose settings not
exceeding 13.1 ft (4.0m).
A
B
1. Transport brackets
The transport bracket can be set at
three different positions A, B or C.
Loosen the bolt to change position
and replace it according to new
setting. The setting must be identical
on both sides.
(1)
(2)
Sprayer setup
A
B
C
