18 HARDI
®
COMMANDER OPERATOR’S MANUAL

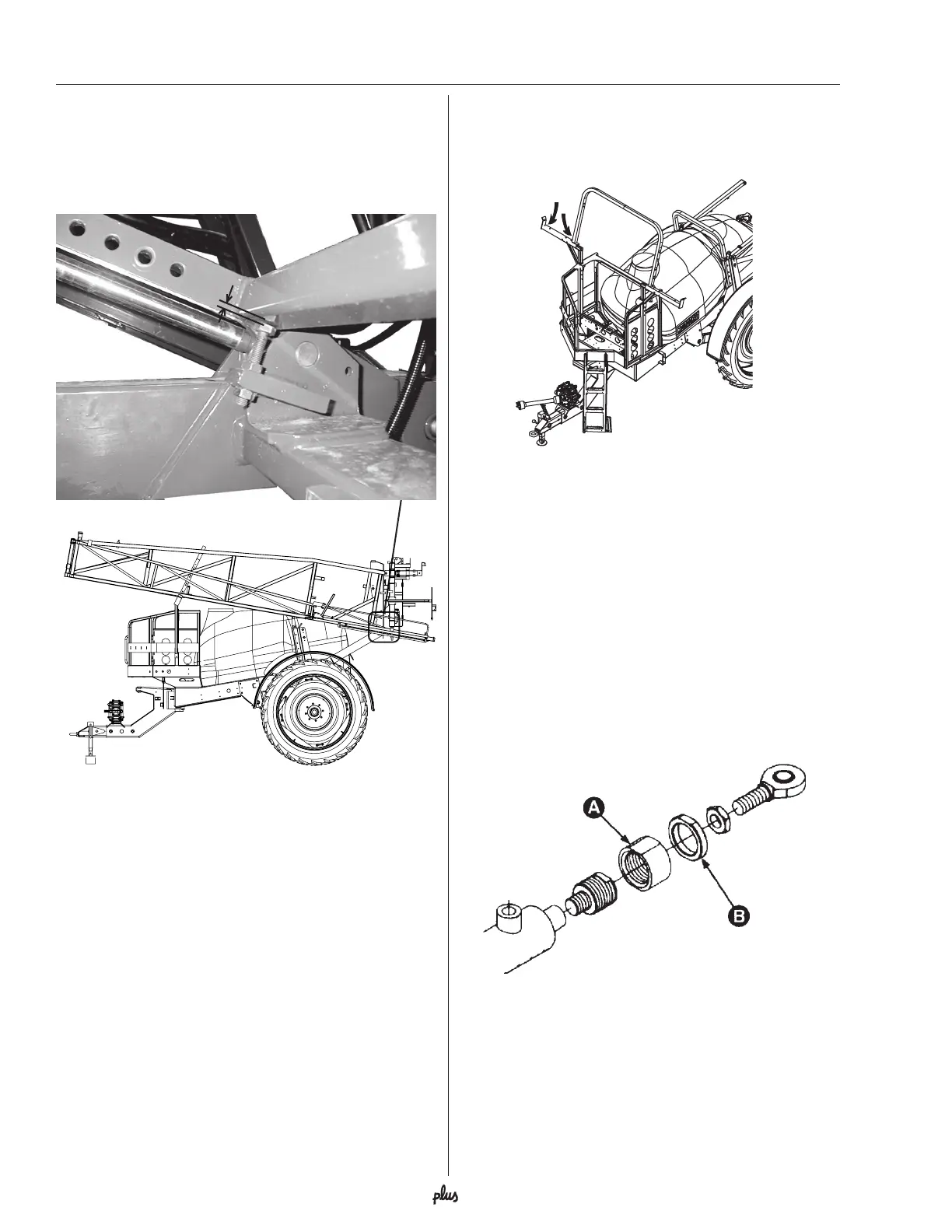

Transport lock arm stop
When the boom is unfolded: Inspect the gap between
the bolt A and the frame. Correct position = 1/16” gap
(2 mm).
If necessary, adjust the position of bolt A.
Adjusting boom transport position
If the boom wings do not rest accurately in the trans-
port brackets, the wings can be adjusted as described
below:
1. Lift the boom all the way to the top.
2. Fold the boom into transport position. With the fold
cylinder pressurized, determine if the boom wings
need to be adjusted inwards or outwards.
3. Relieve the pressure from the fold cylinder by unfold-
ing the boom a few inches.
If the boom rests too far in on the transport brackets,
loosen the nut B and adjust collar A in towards the
cylinder housing.
If the boom rests too far out on the transport brackets,
the collar A has to go out from the cylinder housing.
4. Secure jam nut B.
5. Pressurize the cylinder to see if the boom is properly
adjusted. If not, repeat the above procedure until it is
correctly adjusted.
Sprayer setup
A
1/16” (2 mm)
