23HARDI
®
COMMANDER OPERATOR’S MANUAL
Operation
4. Depress switch A to fold in the inner wing sections
allowing the bottom profile of the wing to come in
contact with the vertical part of the front transport
bracket.
5. Lower boom down, activating the Paralift™ lift
cylinders. Make sure that the transport hooks are
engaged on the cylinders. Then lower the tilt cylin-
ders (switch C and D) until the wings are resting on
the front transport supports.
6. Relieve all oil out of the system by activating the
tractor levers without any switches pushed.
Tilting the HZ FORCE™ boom
WARNING! Never attempt to work on or around
boom when tilted up.

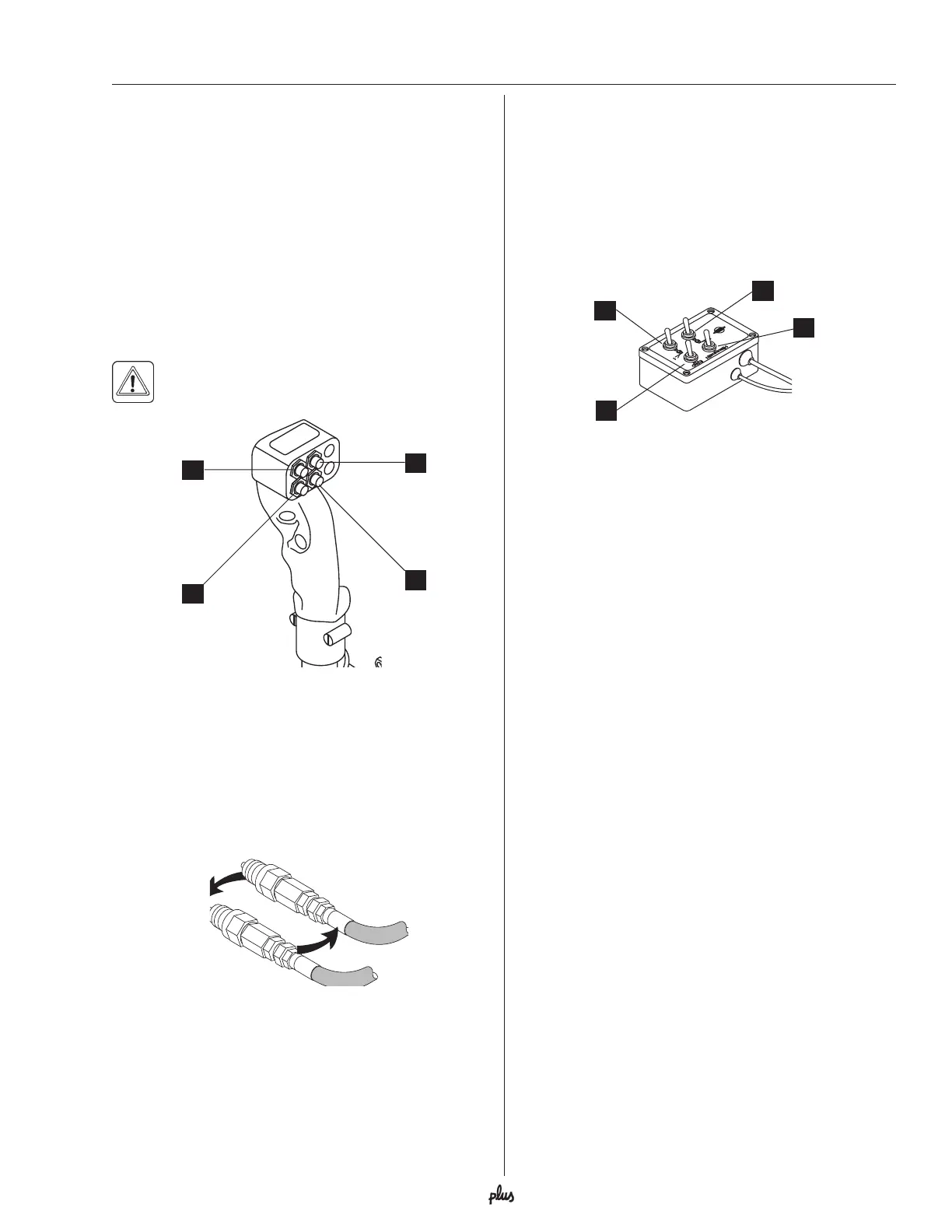

A. Hydraulic joystick controls
1. Activate switch C and move hydraulic handle forward
or rearward to tilt left-hand boom up. To tilt the right-
hand boom, activate switch D. Switch positions of
the hoses in the double acting outlet if you do not
like the direction required to activate the boom.
B. D.H. Hydraulic control box (optional)
1. Engage the tractor’s double acting remote outlet
lever and lock it in the engaged position.
2. Activate switch C upwards and hold to tilt left-hand
boom up (Holding the switch in the down position will
tilt the boom down). To tilt the right-hand boom,
activate switch D.
A
B
C
D
A
C
D
B
To Next Page
