Harman P42i-TC Installation Manual

Harman® • P42i Pellet Insert Installation Manual • 2023 -___ • 08/2311 8742-901D
B. Venting Termination Design

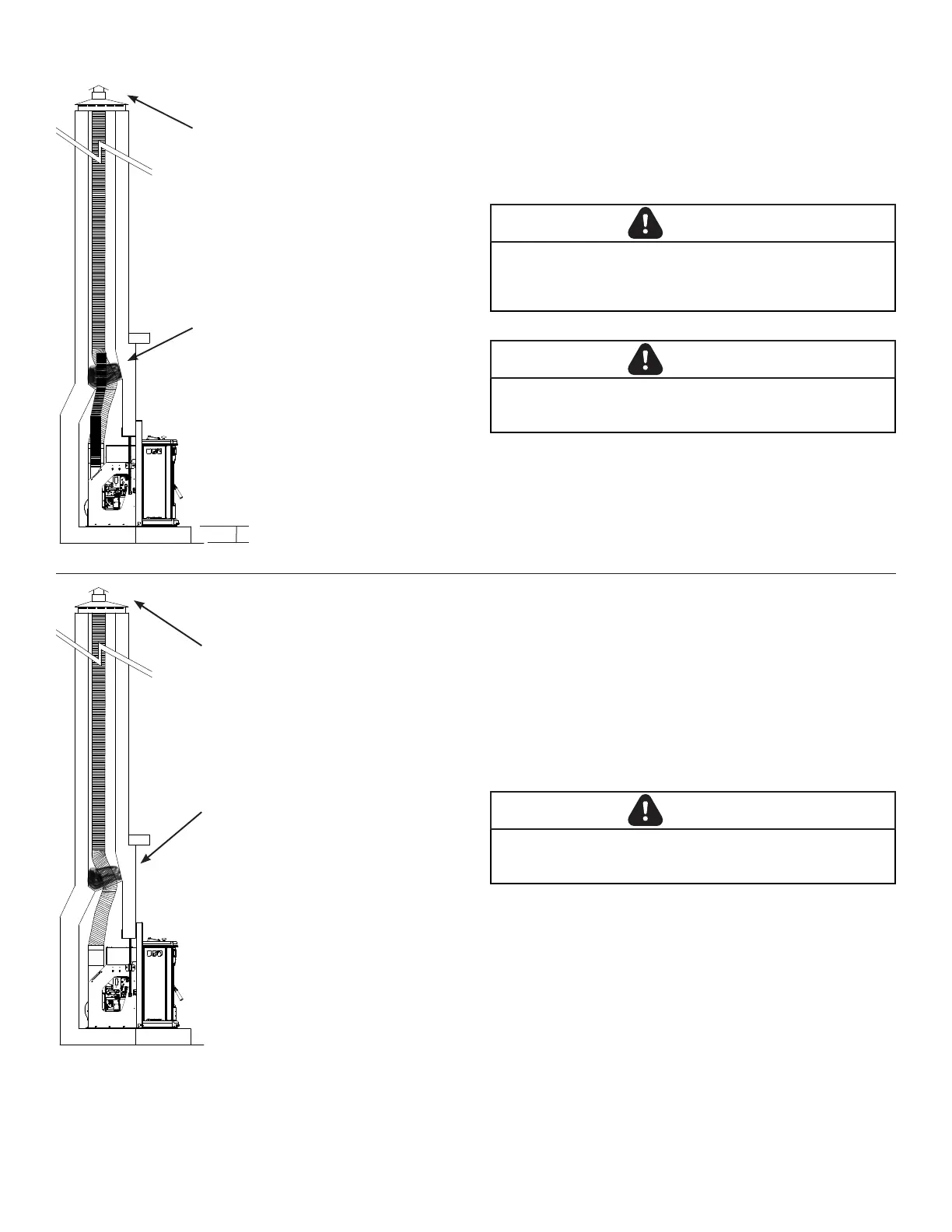

#1 Installing into an existing replace chimney
Thismethodprovidesexcellentventingwith100%outsideair
whichisthemoste󰀩cientoperationofthisunit.Thismethod
also provides natural draft in the event of a power failure.
A4”stainlesssteelexpipeisneededfortheuepipe,and3"
aluminumorStainlessSteelFlexPipeisusedfortheintake.
CHIMNEY CONNECTOR PIPE MAY NOT PASS
THROUGH CONCEALED SPACES INCLUDING AN
ATTIC, ROOF SPACE, CLOSET, FLOOR OR CEILING.
Heightofexistinghearth
#2 Installing into an existing replace chimney
Thismethodprovidesexcellentventingfornormaloperation.
This method also provides natural draft in the event of a
power failure.
A cap should be installed on the chimney to keep out rain.
Combustion air is provided from the living area and enters the
feed system from around the wing and stove body spaces.
The chimney top must be capped to
prevent rain and/or snow from entering
the chimney.
See Figure 4.8, for information on the
optional Harman®Adjustable Stainless
SteelIntakeExtension.
The damper area must be sealed with
a non-combustible material and it is
recommended that Kaowool, mineral
wool, or an equivalent non-combustible
insulation be placed on top of the
sealed area to reduce the possibility of
condensation. Insulation alone should
not be used to seal the damper opening.
For quick and easy installation, purchase
thesteelHarman BlockO󰀨Plate,1-00-
25625.
The chimney top must be capped to
prevent rain and/or snow from entering
the chimney.
The damper area must be sealed with
a non-combustible material and it is
recommended that Kaowool, mineral
wool, or an equivalent non-combustible
insulation be placed on top of the
sealed area to reduce the possibility of
condensation. Insulation alone should
not be used to seal the damper opening.
For quick and easy installation, purchase
the steel Harman Block O󰀨 Plate, 1-00-
25625.
Figure 4.1
Figure 4.2
DO NOT REMOVE BRICKS OR MORTAR FROM
THE EXISTING FIREPLACE.
DO NOT REMOVE BRICKS OR MORTAR FROM
THE EXISTING FIREPLACE.
WARNING
WARNING
WARNING
