Harman P42i-TC Installation Manual

Harman® • P42i Pellet Insert Installation Manual • 2023 -___ • 08/2322 8742-901D
5 5
Appliance Set-Up

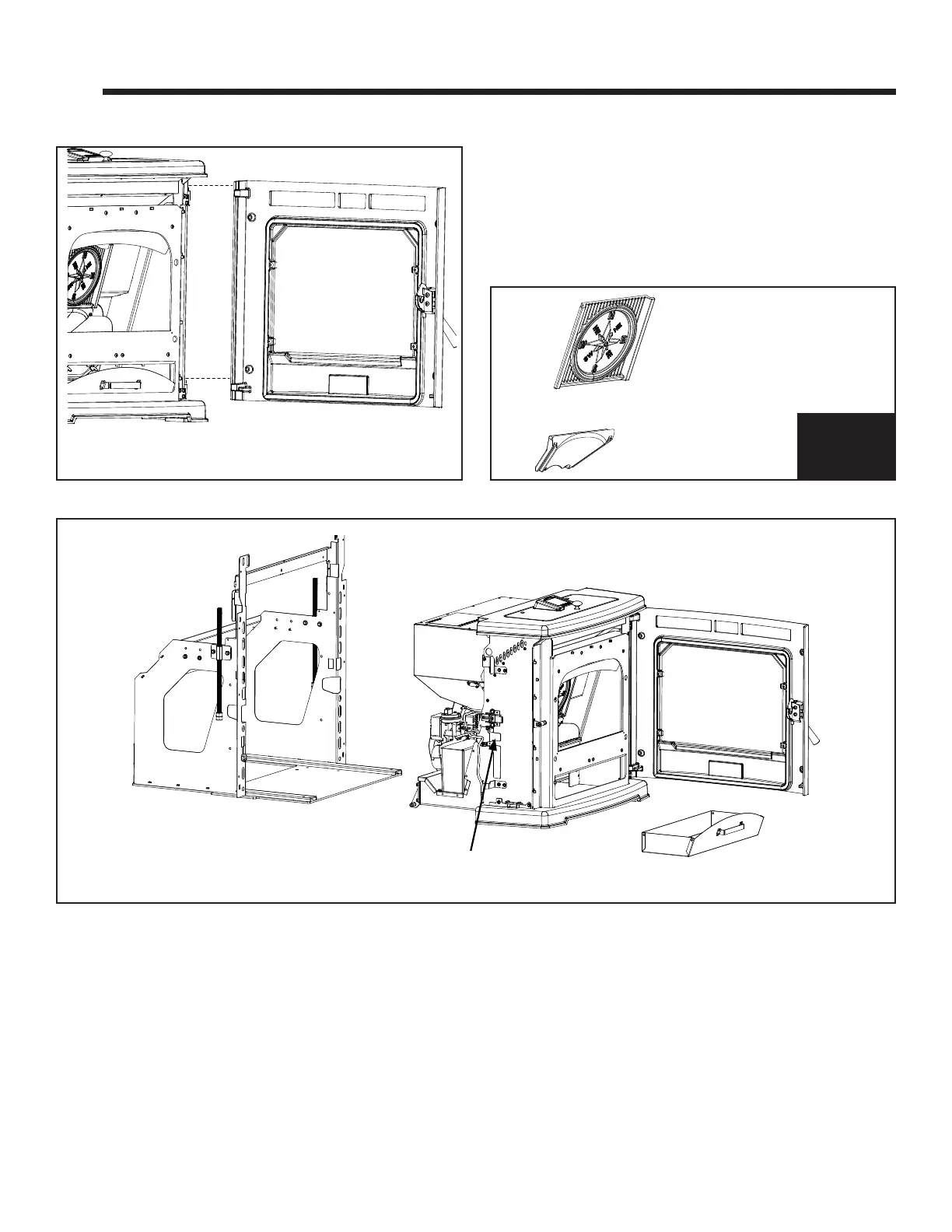

A. Reducing Weight for Installation
1. Remove the front viewing door by swinging it open
approximately90
o
and lift it upward until it clears the hinge
pins.SeeFigure5.1.
2. Removetheashpan
3. Removethe(2)internalpieces ofcastironFigure5.2.
SeeFigure5.3forCenterMedallionremovalinstructions.
Figure 5.2
CenterMedallion
Flame Guide
Internal
Cast Iron
(2) pieces
Ash Pan
(2)SpringLatches
(Oneoneachside)
MountingFrame
The drawing above shows the major sub components of the P42i-TC. Take notice as to where the spring latches
are located.
Figure 5.1
