User Manual of Network PTZ Camera
© Hikvision
35
configuring the recording schedule, you have to configure the settings on the Motion
Detection and Alarm Input settings interfaces.
 Record Triggered by Motion | Alarm: If you select Motion | Alarm, the video will be
recorded when the external alarm is triggered or the motion is detected. Besides
configuring the recording schedule, you have to configure the settings on the Motion
Detection and Alarm Input settings interfaces.
 Record Triggered by Event: If you select to record by event, the video will be recorded
when any of the events is triggered.
6. Click to save the settings.
5.1.2 Configuring Capture Schedule
Purpose:
You can configure the scheduled snapshot and event-triggered snapshot. The captured picture
can be stored in the local storage or network storage.
Steps:
1. Enter the Snapshot settings interface:
Configuration > Storage > Storage Settings > Capture

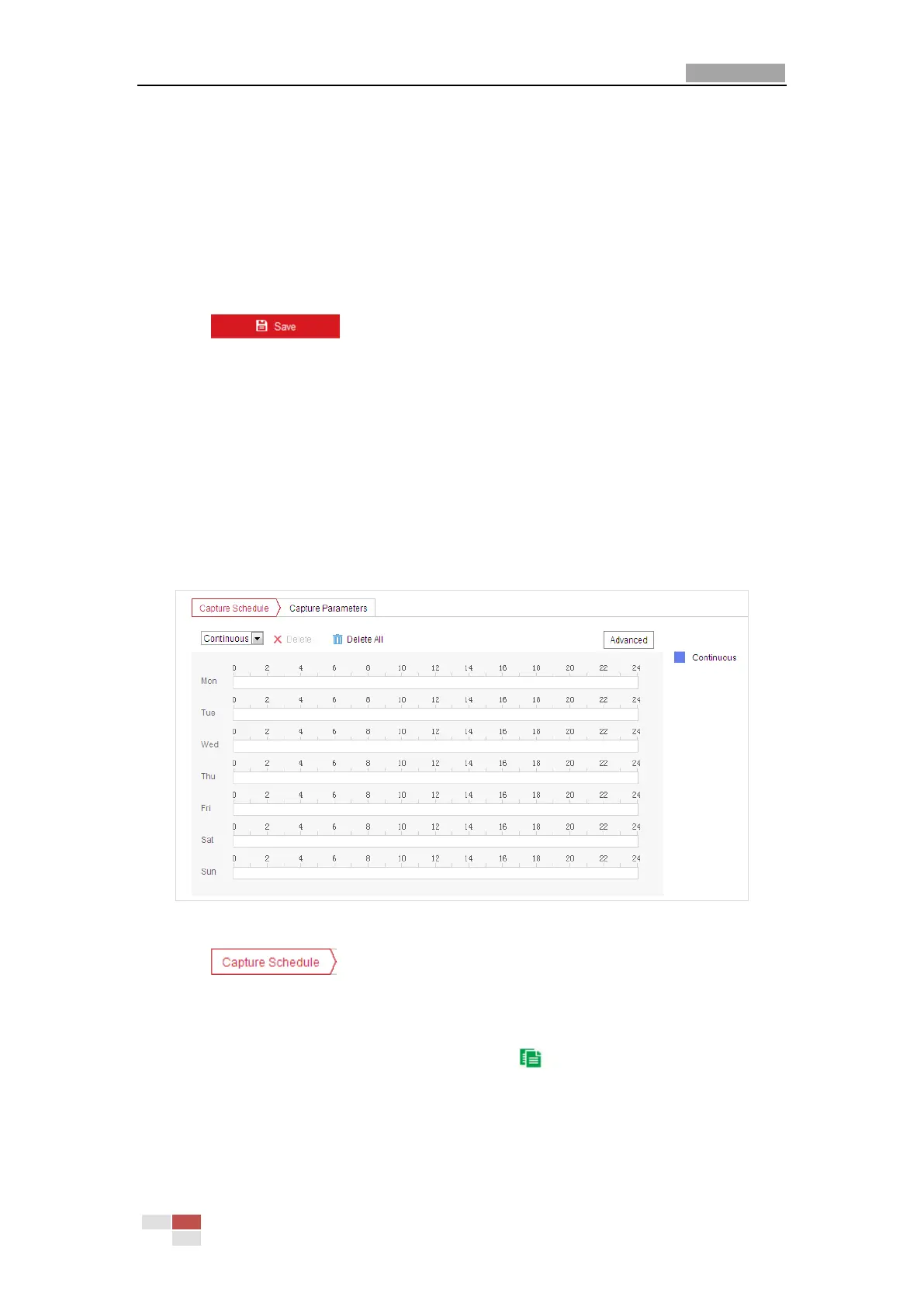

Figure 5-3 Snapshot Settings
2. Click to enter the Capture Schedule interface.
3. Select the timeline of a certain day, and drag the left button of the mouse to set the capture
schedule (the start time and end time of the recording task).
4. After you set the scheduled task, you can click and copy the task to other days
(optional).
5. After setting the capture schedule, you can click a capture segment to display the segment
capture settings interface to edit the segment capture parameters. (optional)
