Digital Video Recorder User Manual
106
The interval is the time period between two capturing actions. You can configure all the
parameters on this menu on your demand.
5.2 Configuring Recording and Capture Schedule

The DS-7100 models support continuous, motion and event triggered recording types.
Other models support continuous, alarm, motion, motion | alarm, motion & alarm, event
and POS triggered recording types.

In this chapter, we take the record schedule procedure as an example, and the same
procedure can be applied to configure schedule for both recording and capture. To schedule
the automatic capture, you need to choose the Capture tab in the Schedule interface.
Purpose
Set the record schedule, and then the camera will automatically start/stop recording according to
the configured schedule.
Step 1 Enter the Record Schedule interface.
Menu > Record/Capture > Schedule

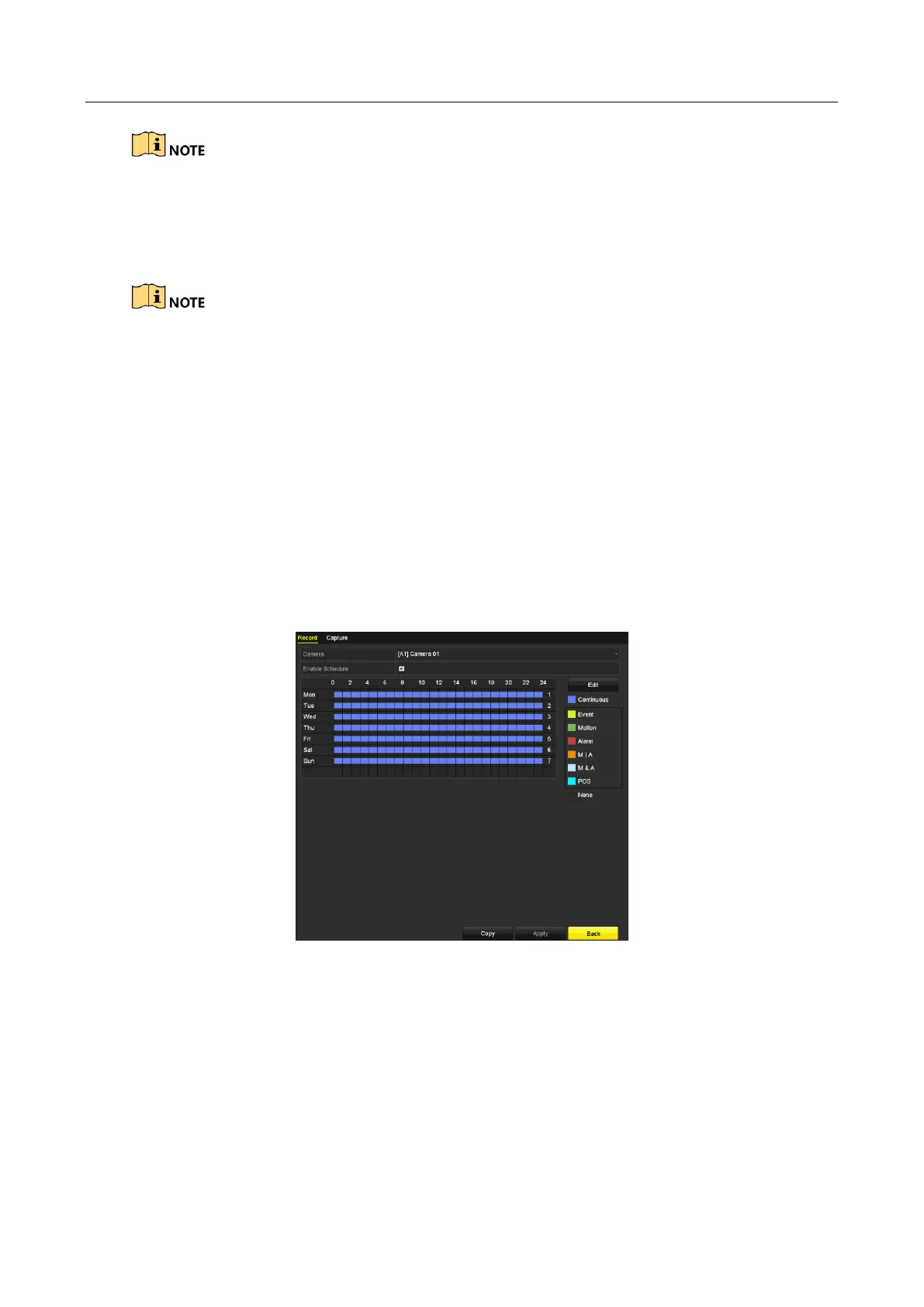

Figure 5-8 Record Schedule
Different recording types are marked in different color icons.
Continuous: scheduled recording.
Event: recording triggered by all event triggered alarm.
Motion: recording triggered by motion detection.
Alarm: recording triggered by alarm.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
