HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
217
13.1.2 One-touch Configuration
Purpose
Through one-touch configuration, you can quickly create the disk array. By default, the array type
to be created is RAID 5.
Before you start
1. The RAID function should be enabled, please refer to the Chapter 13.1.1 for details.
2. As the default array type is RAID 5, please install at least 3 HDDs in you device.
3. If more than 10 HDDs are installed, 2 arrays can be configured.
Step 1 Enter the RAID configuration interface.
Menu > HDD > RAID

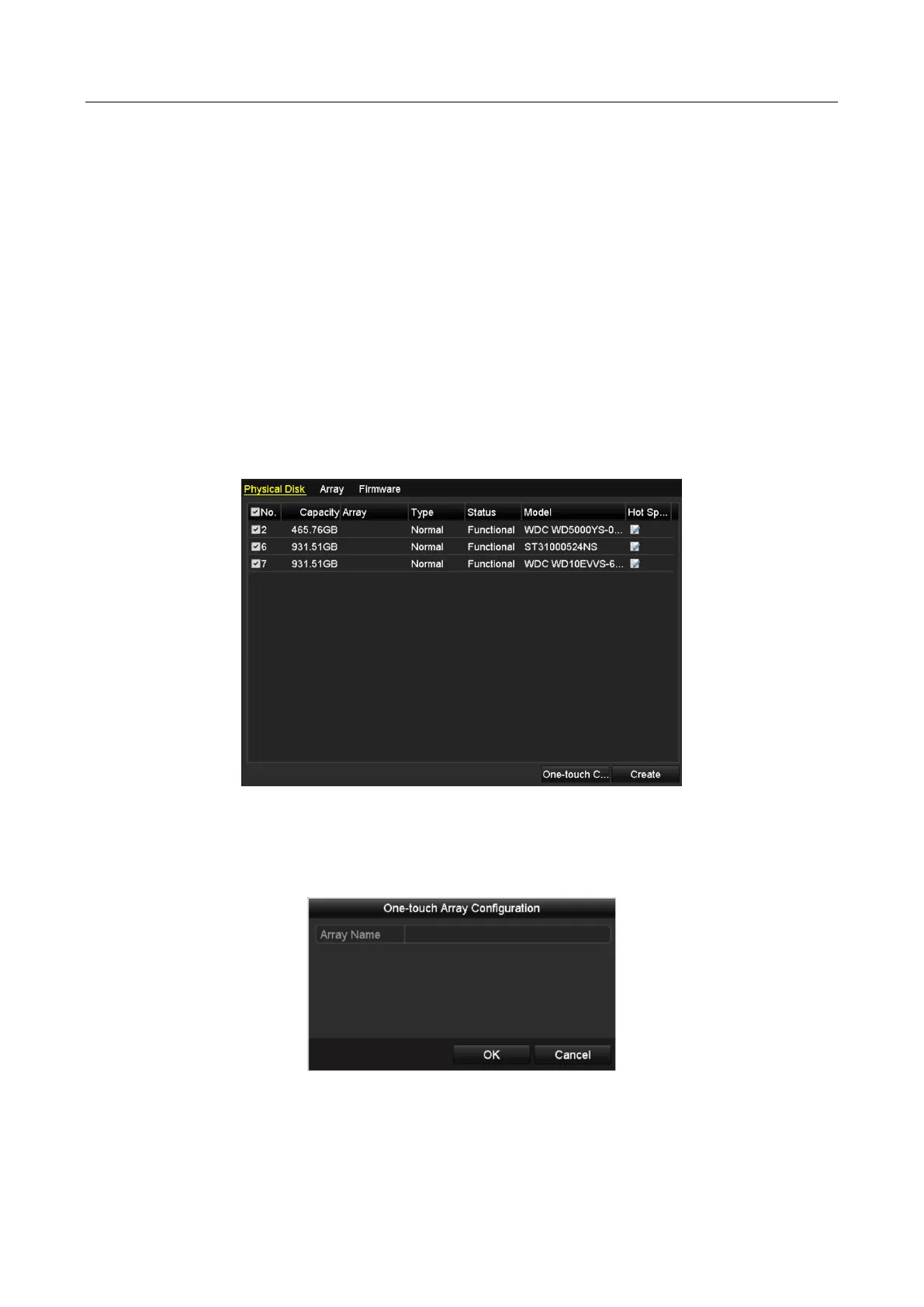

Figure 13-3 Physical Disk Interface
Step 2 Check the checkbox of corresponding HDD No. to select it.
Step 3 Click the One-touch Config button to enter the One-touch Array Configuration interface.
Figure 13-4 One-touch Array Configuration

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
