3.4 Adjusting Live View Settings
Purpose
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Step 1 Enter the Live View Settings interface.
Menu> Configuration> Live View

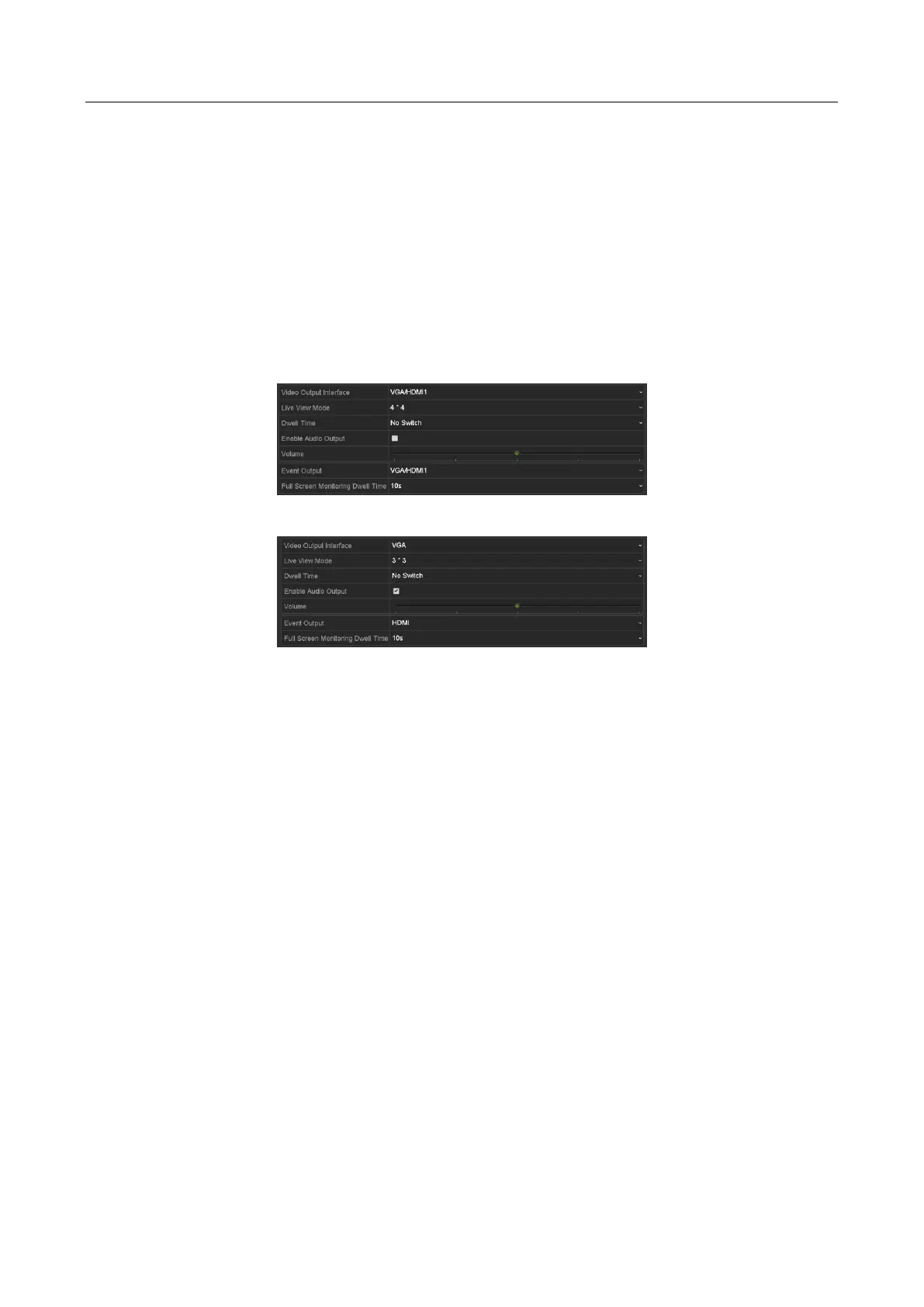

Figure 3-9 Live View-General (1)
Figure 3-10 Live View-General (2)
The settings available in this menu include:
 Video Output Interface: Selects the output to configure the settings.
For DS-7300/8100/9000HUHI-F/N series DVR, you can select VGA/HDMI1, HDMI2, Main CVBS
for video output interface.
For DS-7608/7616HUHI-F/N and DS-7300/8100HQHI-F/N series DVR with CVBS output, if you
have configured HDMI/VGA simultaneous output, you can select Main CVBS, HDMI/VGA for
the video output interface. If you have configured independent HDMI and VGA output, you
can select Main CVBS, HDMI and VGA for the video output interface.
For other models, if CVBS output is supported, you can select Main CVBS and HDMI/VGA for
video output interface. If CVBS output is not supported, HDMI/VGA serves as the video output
interface.
 Live View Mode: Selects the display mode to be used for Live View.
 Dwell Time: The time in seconds to dwell between switching of channels when enabling
auto-switch in Live View.
 Enable Audio Output: Enables/disables audio output for the selected camera in the live view
mode.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
