HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
130

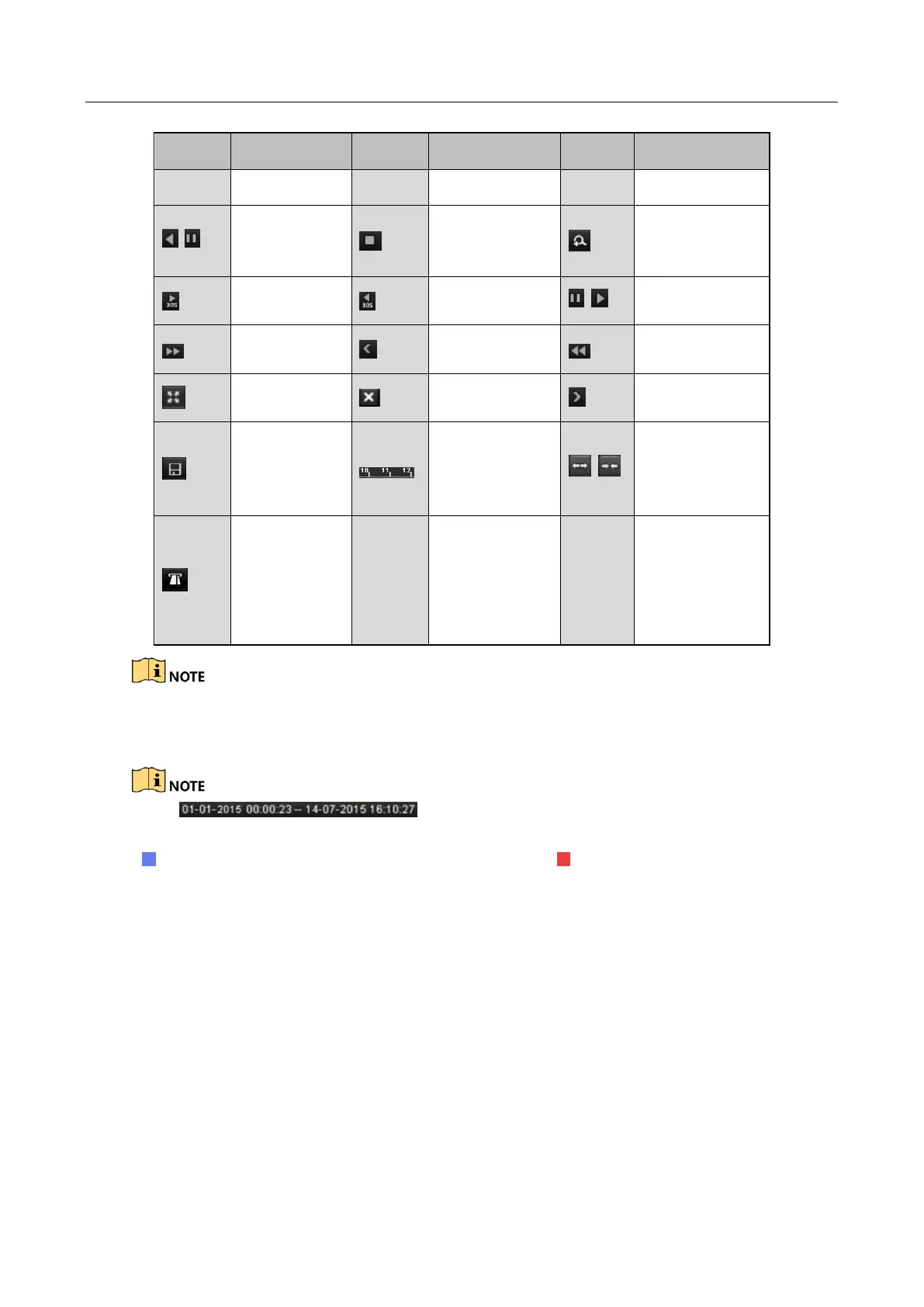

Button
Operation
Button
Operation
Button
Operation
tags
/
Reverse
play/Pause
Stop
Digital Zoom
30s forward
30s reverse
/
Pause/Play
Fast forward
Previous day
Slow forward
Full Screen
Exit
Next day
Save the clips
Process bar
/
Scaling
up/down the
time line
Enable/
Disable POS
information
overlay
This enable/disable POS overlay function is supported by DS-7300/8100HQHI-F/N and
DS-7300/8100/9000HUHI-F/N series DVR only. When the POS is enabled when playing back, the
POS information will be overlain on the video. And the keyword searching is supported.

The indicates the start time and end time of the record
files.

represents normal recording (manual or schedule); represents event recording
(motion, alarm, motion | alarm, motion & alarm).

Playback progress bar: use the mouse to click any point of the progress bar to locate special
frames.
6.1.3 Playing Back by Event Search
Purpose
Play back record files on one or several channels searched out by restricting event type (motion
detection, alarm input or VCA). Channel switch is supported.
Step 1 Enter the Playback interface.
Menu>Playback

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
