HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
59
2.4 Basic Configuration in Startup Wizard
2.4.1 Configuring the Signal Input Wizard
For -E series DVR, there is no signal input configuration interface.
Purpose
For all the -F series DVR, after the startup and login, the device system enters the Wizard for
configuring the signal input.
You can also click Menu > Camera > Signal Input Status to configure the signal input.
Step 1 Check the checkbox to select different signal input types: HD/CVBS and IP.
Step 2 Click Apply to save the settings.

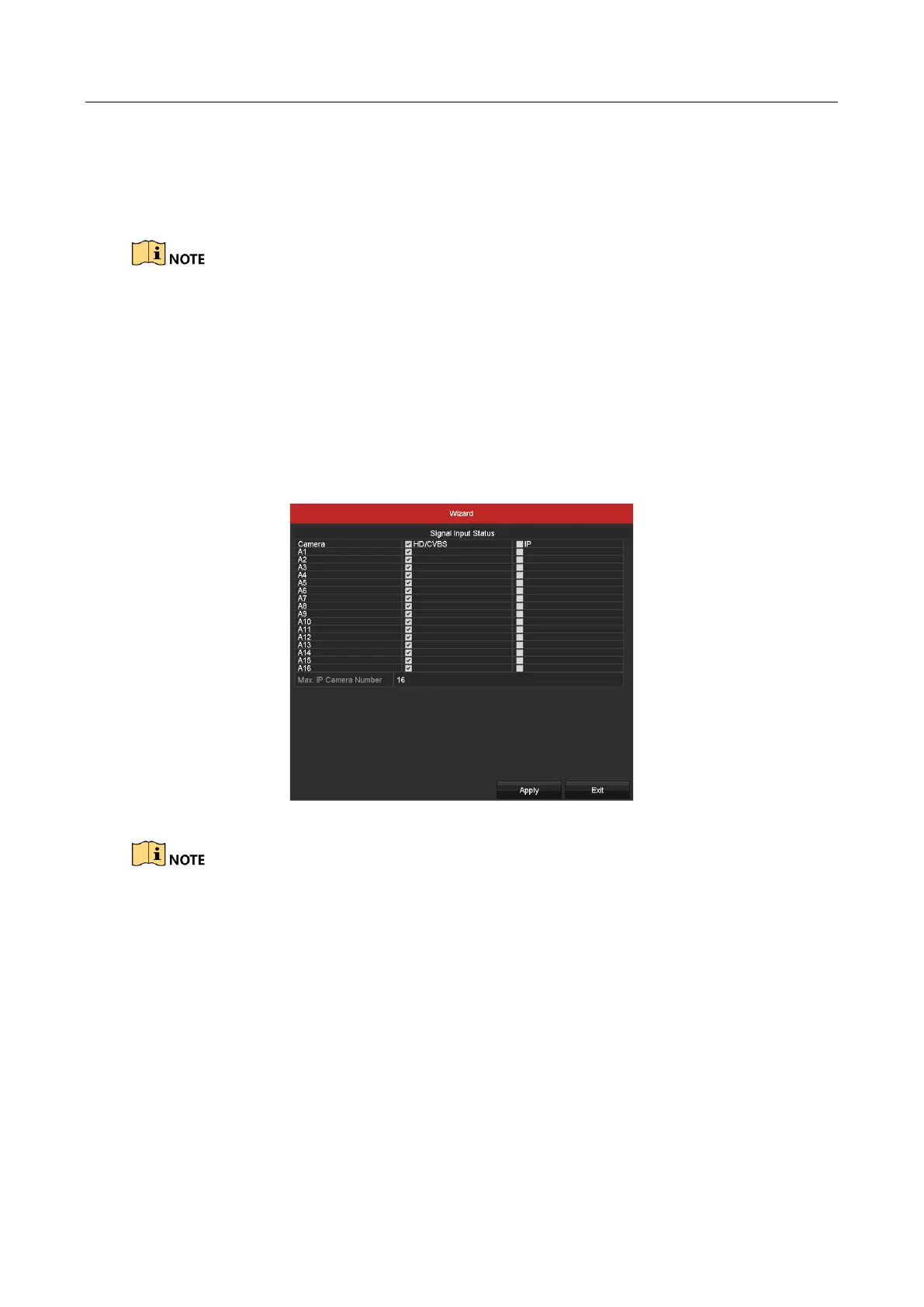

Figure 2-15 Configure Signal Input Type
For detailed information of signal input, you can refer to Chapter 2.7 Configuring the Signal Input
Channel for reference.
2.4.2 Using the Wizard for Basic Configuration
Purpose
By default, the Setup Wizard starts once the device has loaded. You can follow it to complete the
basic configuration.
Selecting the language:
Step 1 Select the language from the dropdown list.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
