HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
171

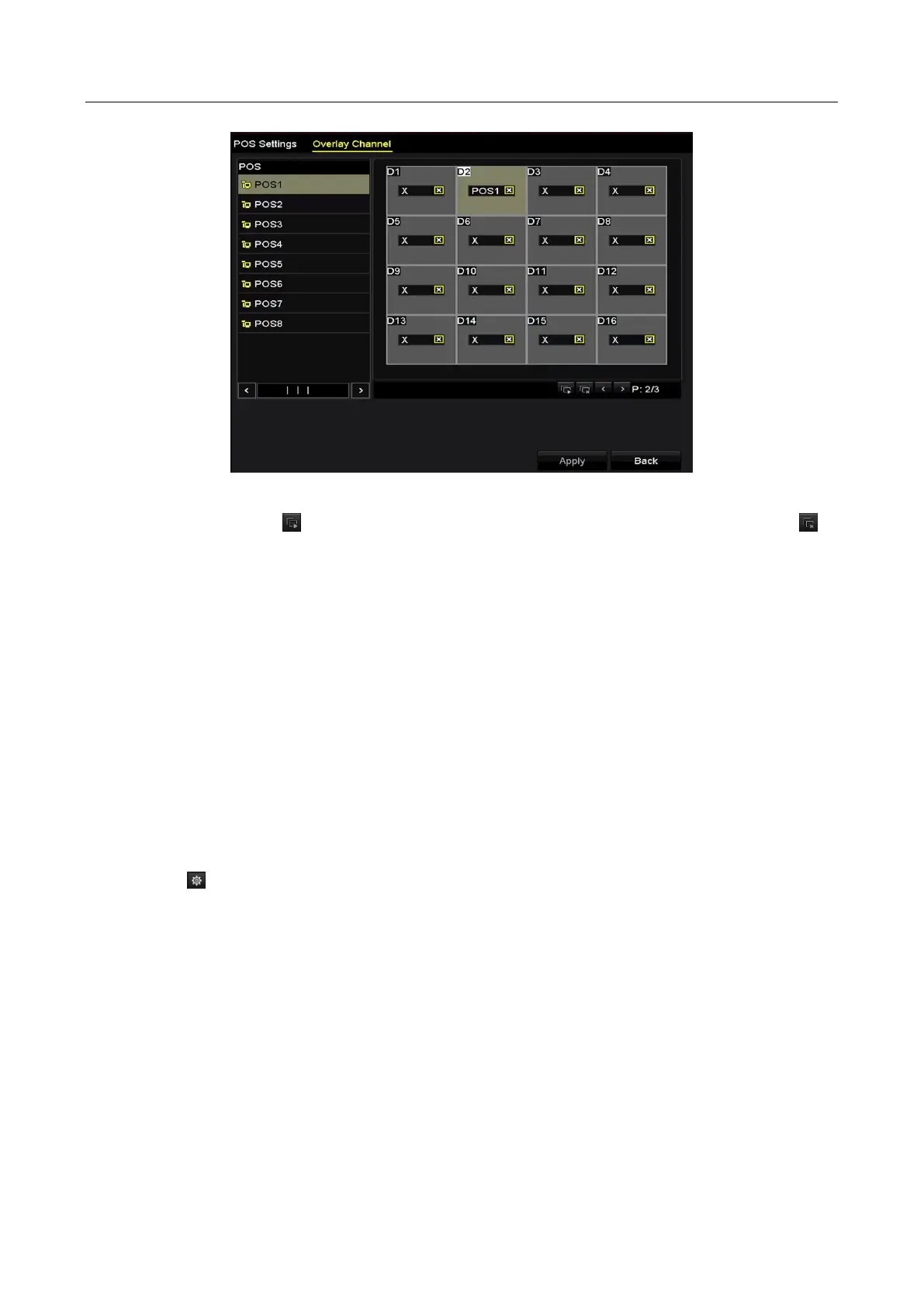

Figure 9-14 Overlay Channel Settings
Step 3 You can also click to overlay all POS items to the first 8 channels in order. And the
is used to clear all POS overlay settings.
Step 4 Click the Apply button to save the settings.
9.3 Configuring POS Alarm
Purpose
Set the POS alarm parameters to trigger certain channels to start recording, or trigger full screen
monitoring, audio warning, notifying the surveillance center, sending email and so on.
Step 1 Enter the POS Settings interface.
Menu > Configuration > POS> POS Settings
Step 2 Follow the steps in Chapter 9.1-9.2 to configure the POS settings.
Step 3 Click to enter the alarm settings interface.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
