HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
93
Step 1 Click the button PTZ in the lower-right corner of the PTZ Settings interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Click the General tab to show the general settings of the PTZ control.

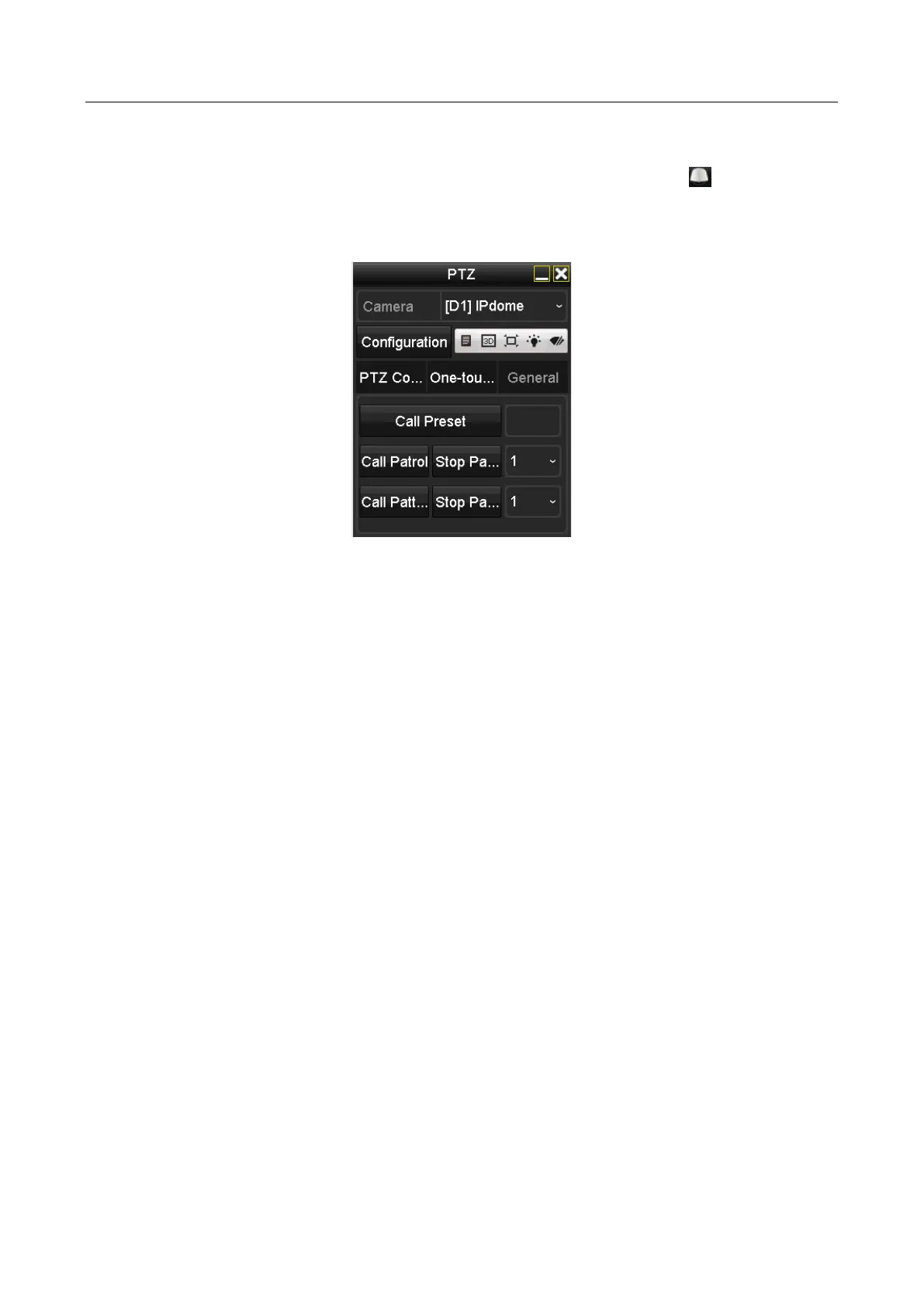

Figure 4-8 PTZ Panel - General
Step 3 Select a patrol in the dropdown list and click the Call Patrol button to call it.
Step 4 You can click the Stop Patrol button to stop calling it.
4.2.5 Customizing Patterns
Purpose
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ movement according to the predefined path.
Step 1 Enter the PTZ Settings interface.
Menu > Camera > PTZ

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
