8.2 Setting Sensor Alarms
Purpose
Set up handling method of an external sensor alarm.
Step 1 Enter Alarm Settings of System Configuration and select an alarm input.
Menu> Configuration> Alarm
Select Alarm Input tab to enter Alarm Input Settings interface.

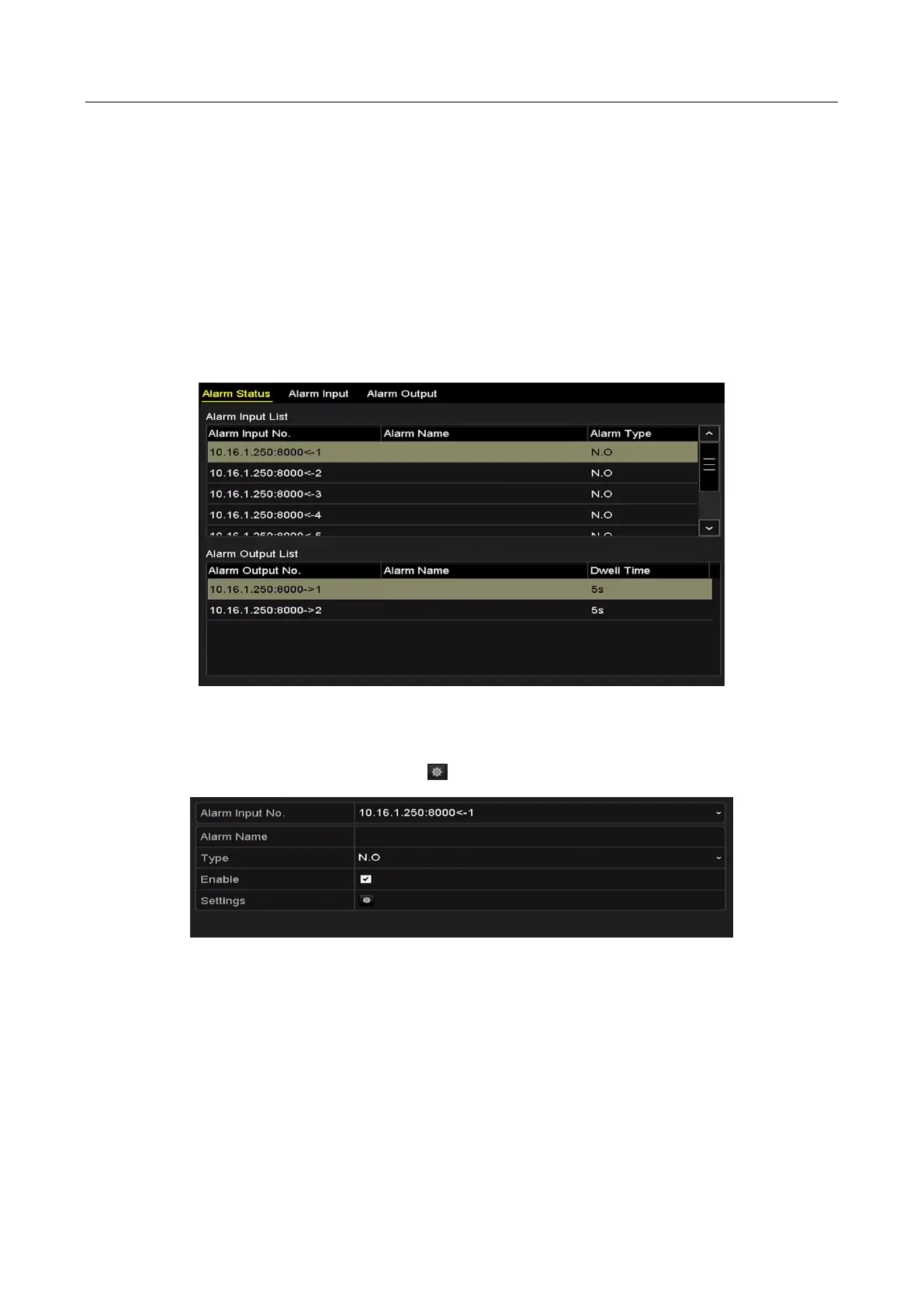

Figure 8-5 Alarm Status Interface of System Configuration
Step 2 Set the handling method of the selected alarm input.
Check the Enable checkbox and click button to set its alarm response actions.
Figure 8-6 Alarm Input Settings Interface
Step 3 Select Trigger Channel tab and select one or more channels which will start to record or
become full-screen monitoring when an external alarm input is triggered.
Step 4 Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and max. eight time periods can be set within each day.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
