Digital Video Recorder User Manual
250

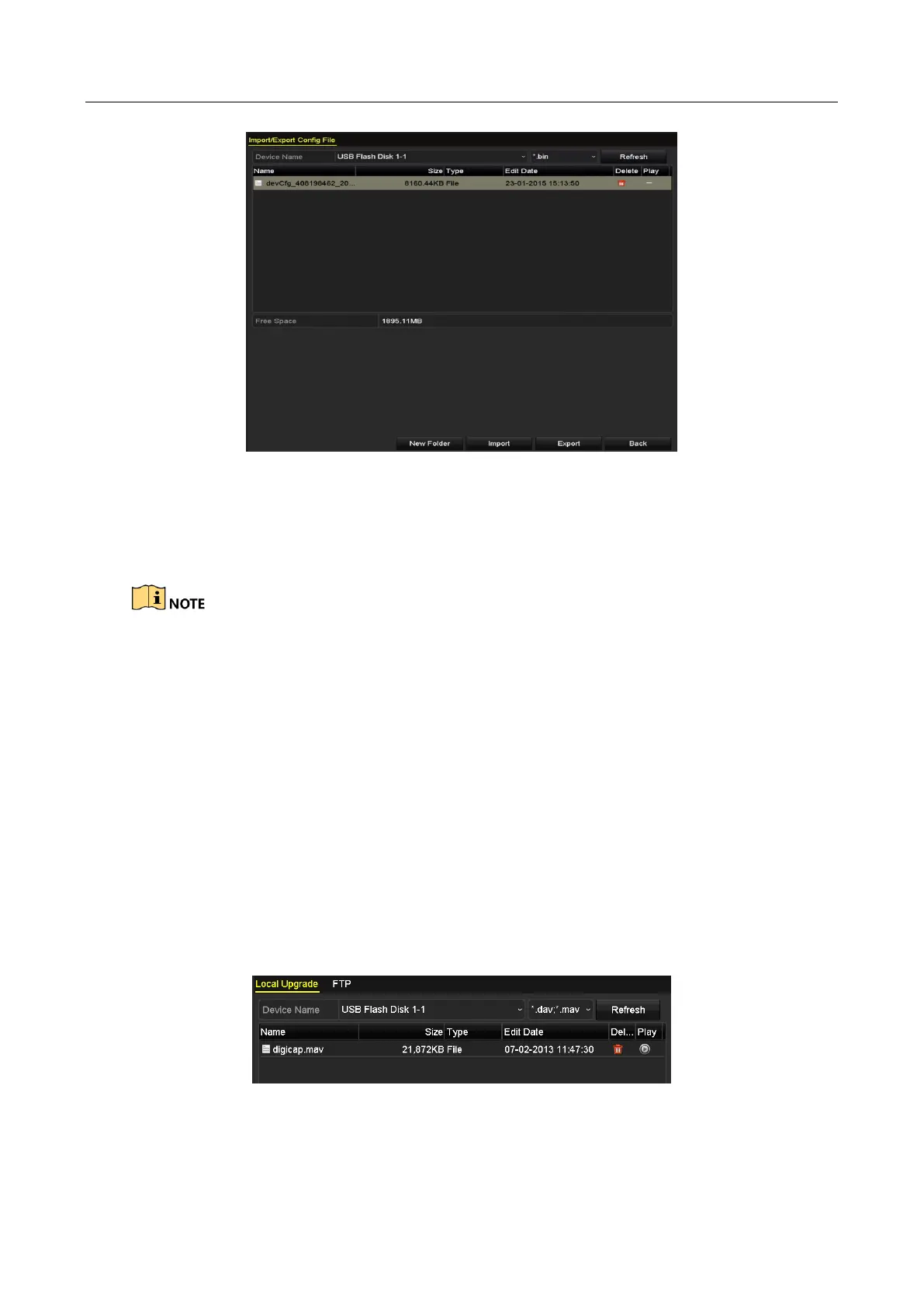

Figure 16-6 Import/Export Configuration File
Step 2 Click the Export button to export configuration files to the selected local backup device.
Step 3 To import a configuration file, select the file from the selected backup device and click the
Import button. After the import process is completed, you must reboot the DVR.
After having finished the import of configuration files, the device will reboot automatically.
16.5 Upgrading System
Purpose
The firmware on your DVR can be upgraded by local backup device or remote FTP server.
16.5.1 Upgrading by Local Backup Device
Step 1 Connect your DVR with a local backup device where the update firmware file is located.
Step 2 Enter the Upgrade interface.
Menu > Maintenance > Upgrade
Step 3 Click the Local Upgrade tab to enter the Local Upgrade interface, as shown in Figure 16-7.
Figure 16-7 Local Upgrade Interface
Step 4 Select the update file from the backup device.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
