HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
142
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer),
SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported.
Step 1 Enter Export interface.
Menu>Export>Event
Step 2 Select the cameras to search.
Step 3 Select the event type to alarm input, motion, VCA or POS.

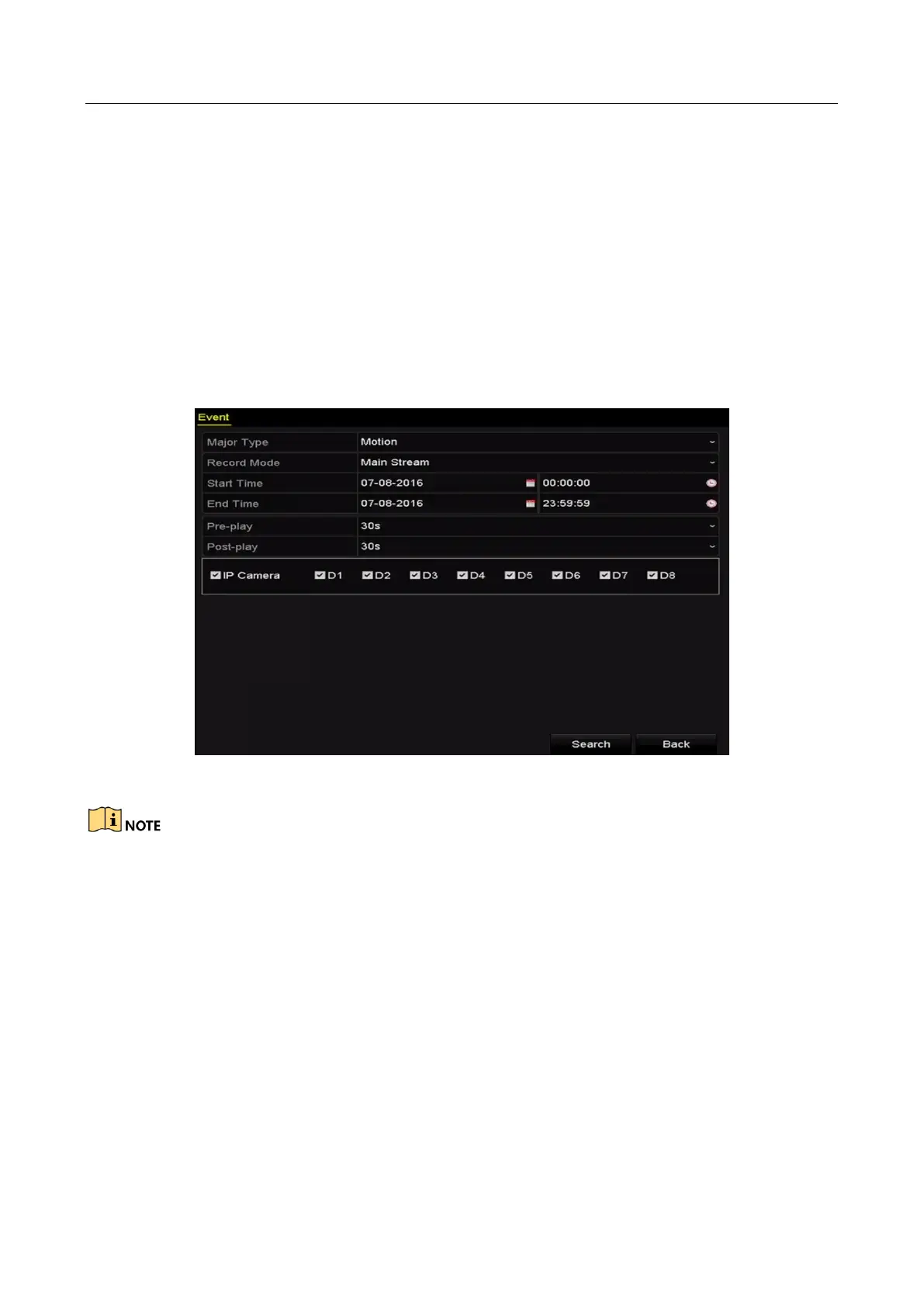

Figure 7-9 Event Search for Backup
The POS event type is supported by the DS-7600/7700/8600/9600-I (/P) series NVR only.
Step 4 Set the search conditions and click Search button to enter the search result interface. For the
POS event type, you can also set the Keyword and enable the Case Sensitivity (upper case
and lower case) to search the video files with the key word contained POS information.
Step 5 The matched video files are displayed in Chart or List display mode. Select video files from
the Chart or List interface to export.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
