Network Video Recorder User Manual
176
Step 7 Click the Rule Settings to enter the rule settings interface. Configure the lane, upload picture
and overlay content settings. Up to 4 lanes are selectable.

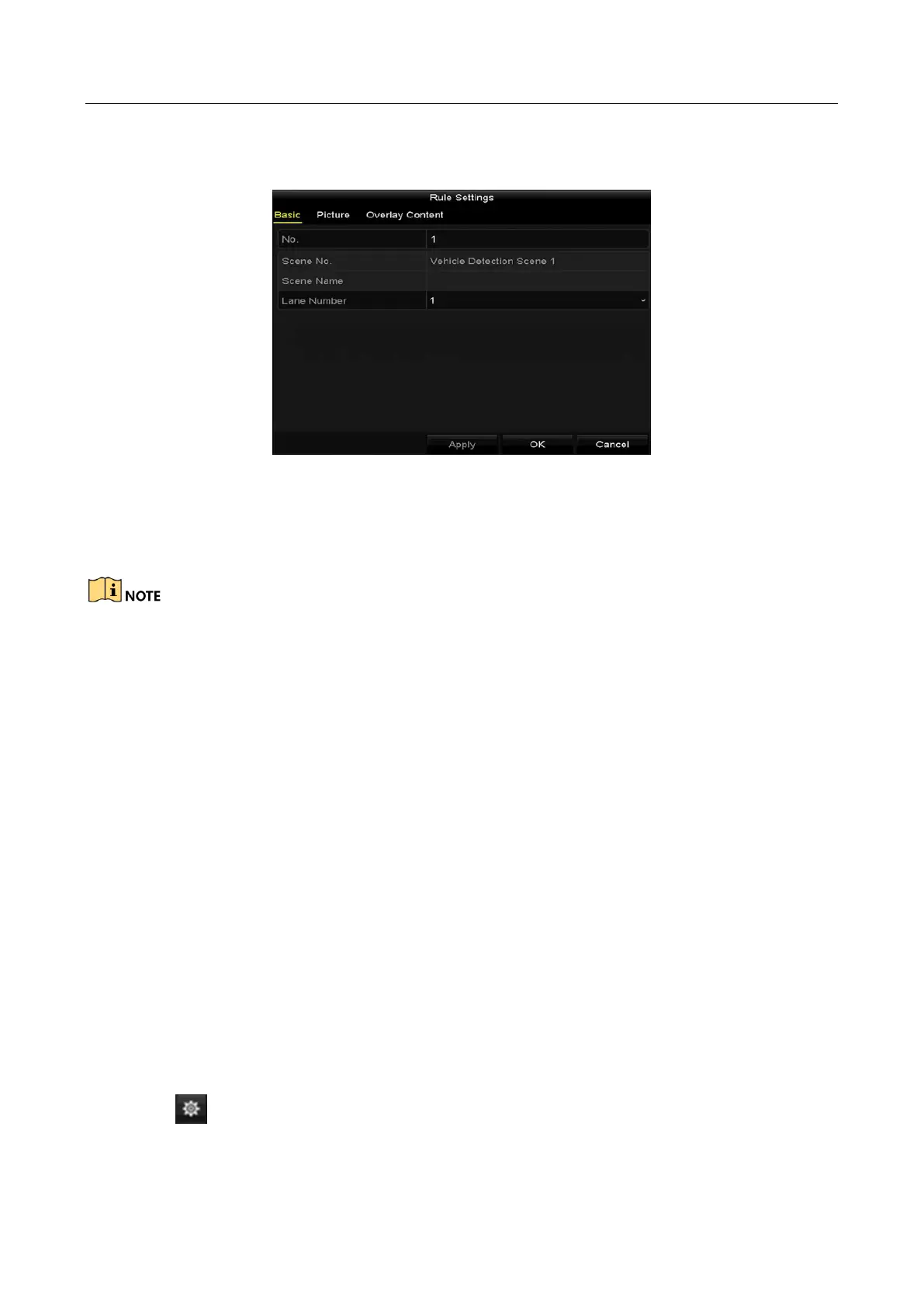

Figure 10-4 Rule Settings
Step 8 Click Save to save the settings.
Please refer to the User Manual of Network Camera for the detailed instructions for the vehicle
detection.
10.3 Line Crossing Detection
Purpose:
This function can be used for detecting people, vehicles and objects cross a set virtual line. The line
crossing direction can be set as bidirectional, from left to right or from right to left. And you can set
the duration for the alarm response actions, such as full screen monitoring, audible warning, etc.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Line Crossing Detection.
Step 4 Check the Enable checkbox to enable this function.
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the line
crossing detection alarm.
