HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
218

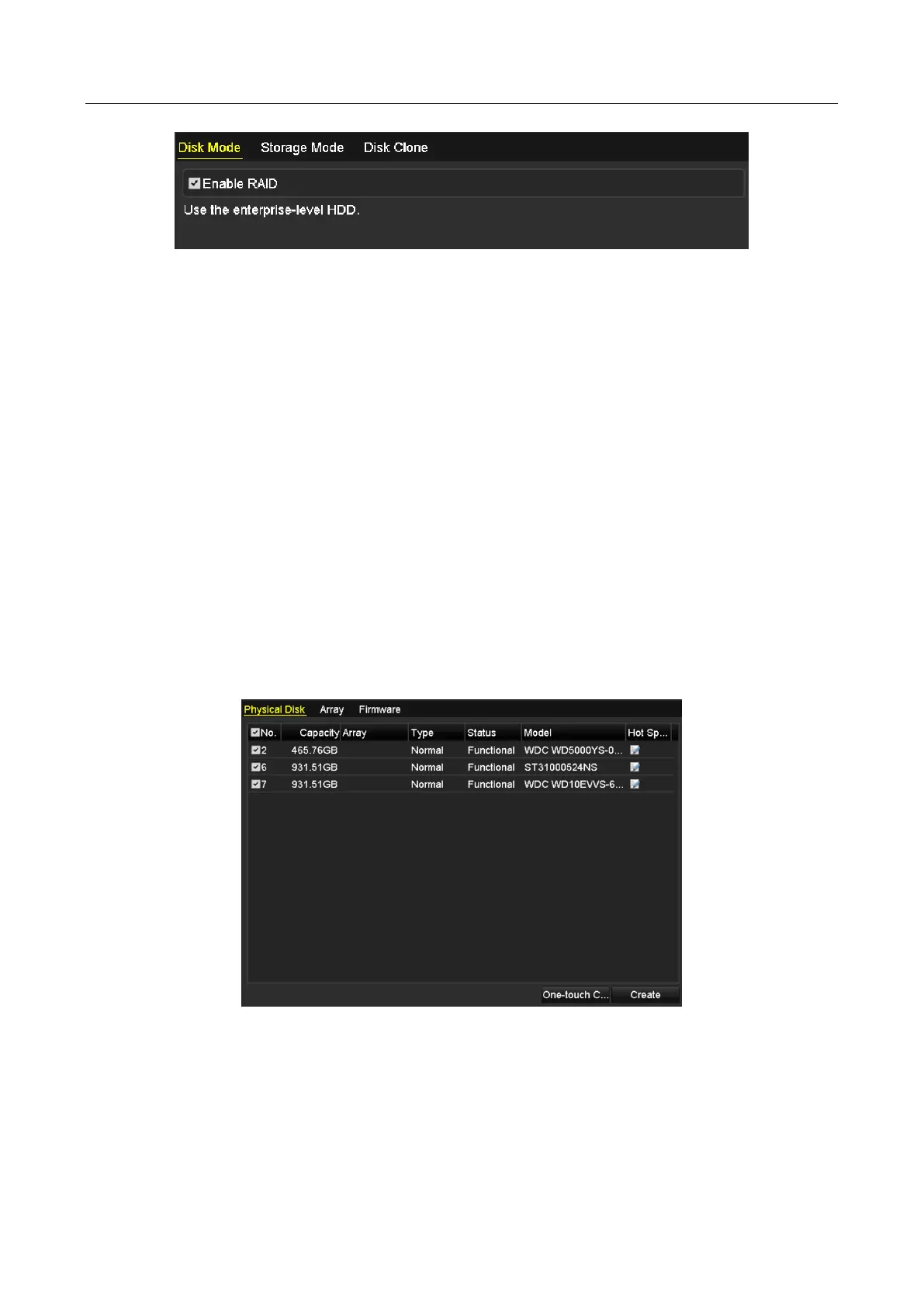

Figure 13-2 Enable RAID Interface
Step 2 Check the checkbox of Enable RAID.
Step 3 Click the Apply button to save the settings.
13.1.3 One-touch Configuration
Purpose:
Through one-touch configuration, you can quickly create the disk array. By default, the array type
to be created is RAID 5.
Before you start:
 The RAID function should be enabled, please refer to the Chapter 13.1.1 for details.
 As the default array type is RAID 5, please install at least 3 HDDs in you device.
 If more than 10 HDDs are installed, 2 arrays can be configured.
Step 1 Enter the RAID configuration interface.
Menu > HDD > RAID
Figure 13-3 Physical Disk Interface
Step 2 Check the checkbox of corresponding HDD No. to select it.
Step 3 Click the One-touch Create button to enter the One-touch Array Configuration interface.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
